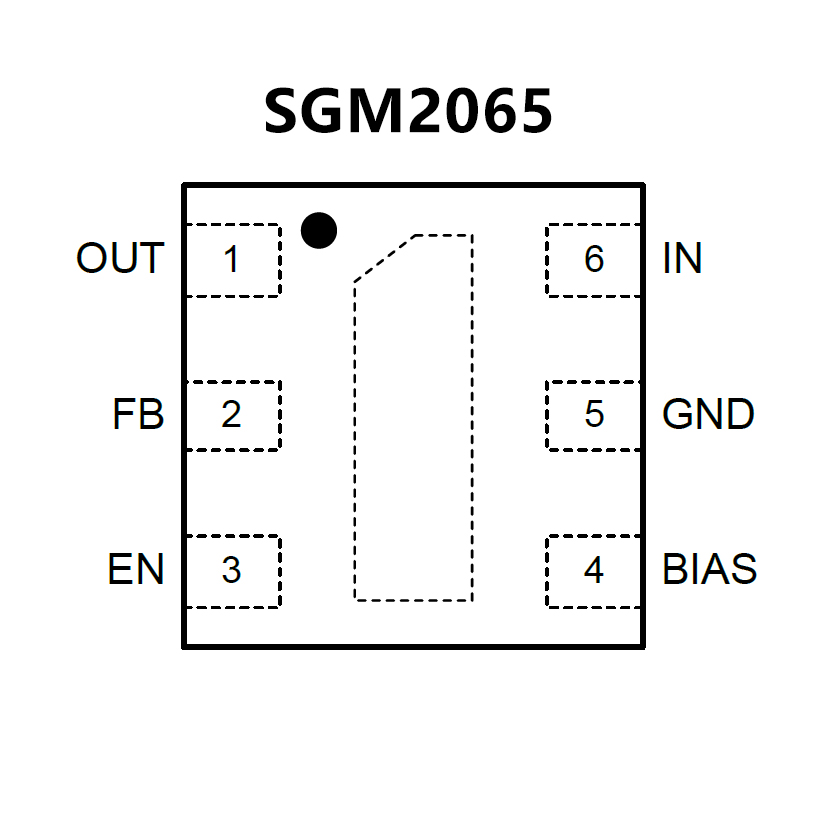

SGM2065.pdf• 1A Nominal Output Current
• Input Voltage Range: 0.8V to 5.5V
• Bias Voltage Range: 2.8V to 5.5V
• Adjustable Output Voltage Range: 0.8V to 3.5V
• Low Dropout Voltage: 240mV (TYP) at 1A
• Low Bias Input Current: 37μA (TYP)
• Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
• Low Noise: 25μVRMS (TYP)
• Output Current Limit
• Thermal Shutdown Protection
• Fast Load Transient Response
• Logic Level Enable Input for ON/OFF Control
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green XTDFN-1.2×1.2-6L Package

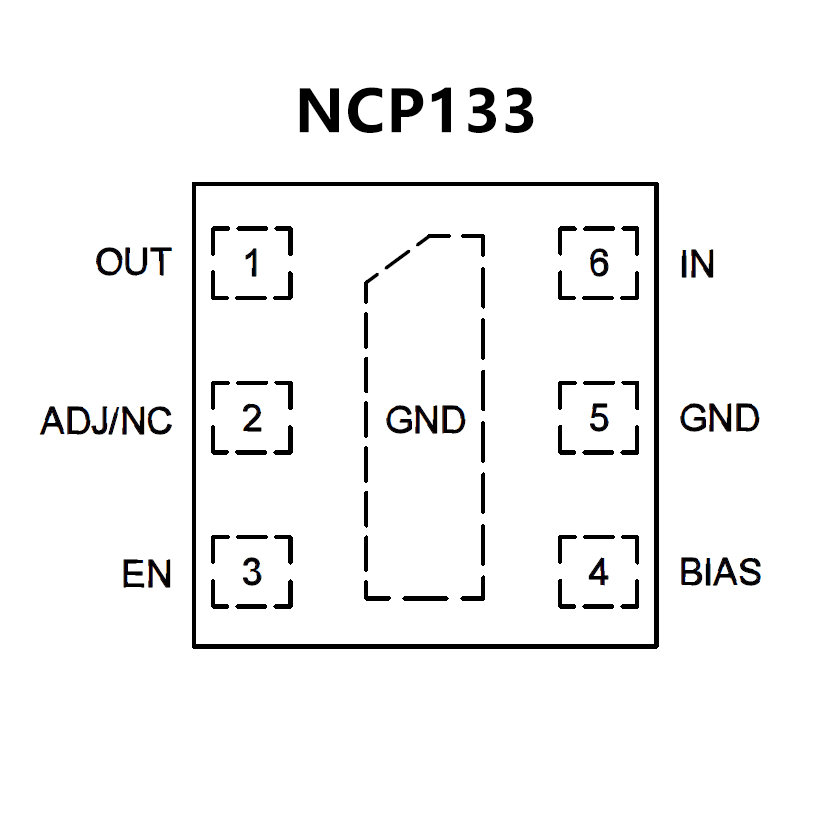

• Input Voltage Range: 0.8 V to 5.5 V
• Bias Voltage Range: 2.4 V to 5.5 V
• Adjustable and Fixed Voltage Versions Available
• Output Voltage Range: 0.8 V to 2.1 V (Fixed) and 0.8 V to
3.6 V (Adjustable)
• ±1.5% Accuracy over Temperature, 0.5% VOUT @ 25°C
• Ultra−Low Dropout: Typ. 140 mV at 500 mA
• Very Low Bias Input Current of Typ. 80 A
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
• Logic Level Enable Input for ON/OFF Control
• Output Active Discharge Option Available
• Stable with a 2.2 F Ceramic Capacitor
• Available in XDFN6 − 1.2 mm x 1.2 mm x 0.4 mm Package
• These Devices are Pb−Free, Halogen Free/BFR Free and
are RoHS Compliant
