SGM2072.pdf• Input Supply Voltage Range: 0.5V to 5.5V
• Bias Supply Voltage Range: 2.5V to 5.5V
• Fixed Output of 1.05V
• Adjustable Output from 0.5V to 3.3V
• Output Voltage Accuracy: ±1.5% at +25℃
• Low Bias Input Current: 80μA (TYP)
• Low Dropout Voltage: 58mV (TYP) at 1.2A
• Low Noise: 34μVRMS (TYP)
• High PSRR: 75dB (TYP) at 1kHz
• Very Low Bias Input Current in Shutdown: < 1μA
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range

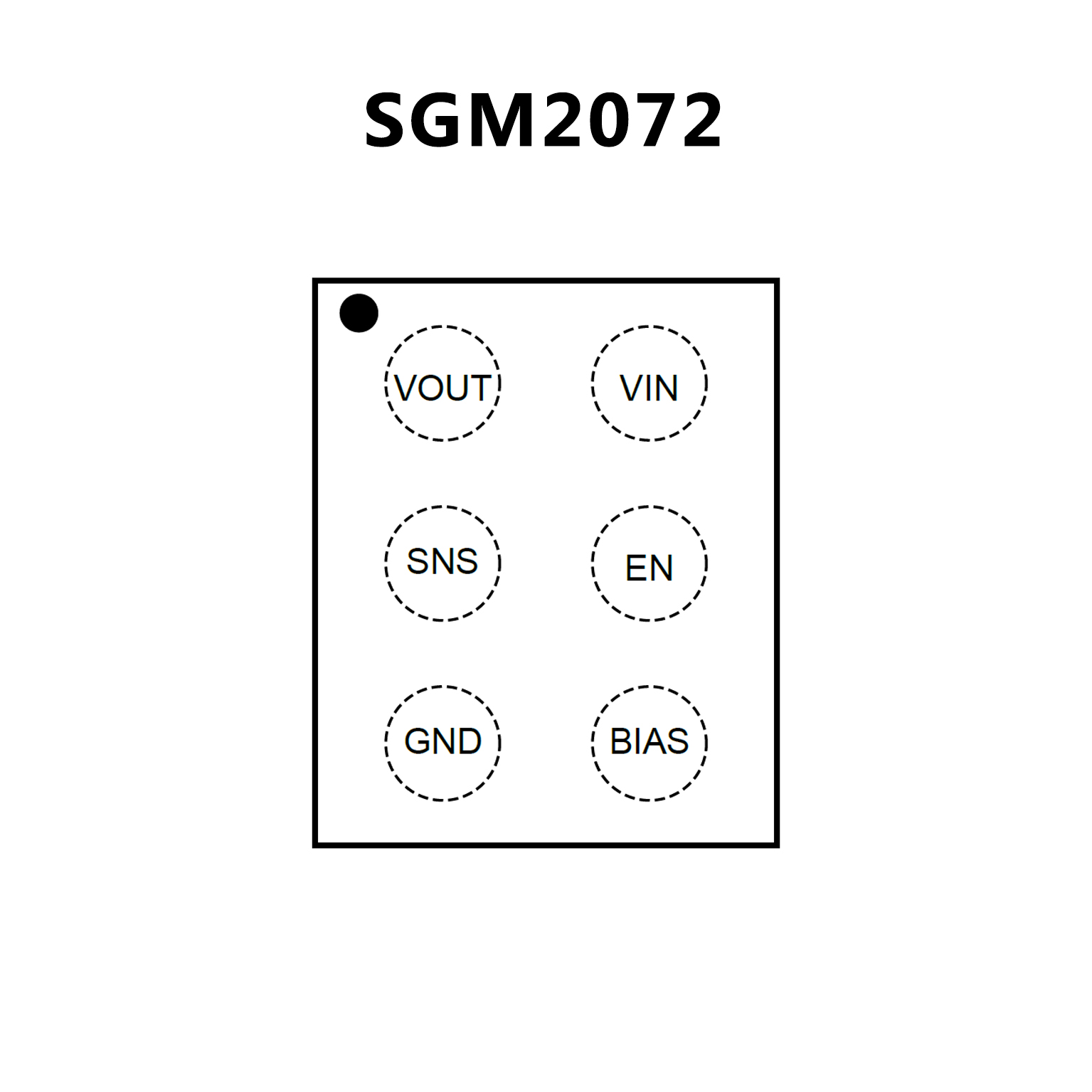

• Available in a Green WLCSP-0.8×1.2-6B-A Package
• Input Voltage Range: VOUT to 5.5 V
• Bias Voltage Range: 3.0 V to 5.5 V
• Adjustable and Fixed Voltage Version Available
• Output Voltage Range: 0.4 V to 1.8 V (Fixed)
Output Voltage Range: 0.5 V to 3.0 V (Adjustable)
• ±1% Accuracy over Temperature, 0.5% VOUT @ 25°C
• Ultra−Low Dropout: Typ. 50 mV at 1 A
• Very Low Bias Input Current of Typ. 35 A
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
• Logic Level Enable Input for ON/OFF Control
• Output Active Discharge Option Available
• Stable with a 10 F Ceramic Capacitor

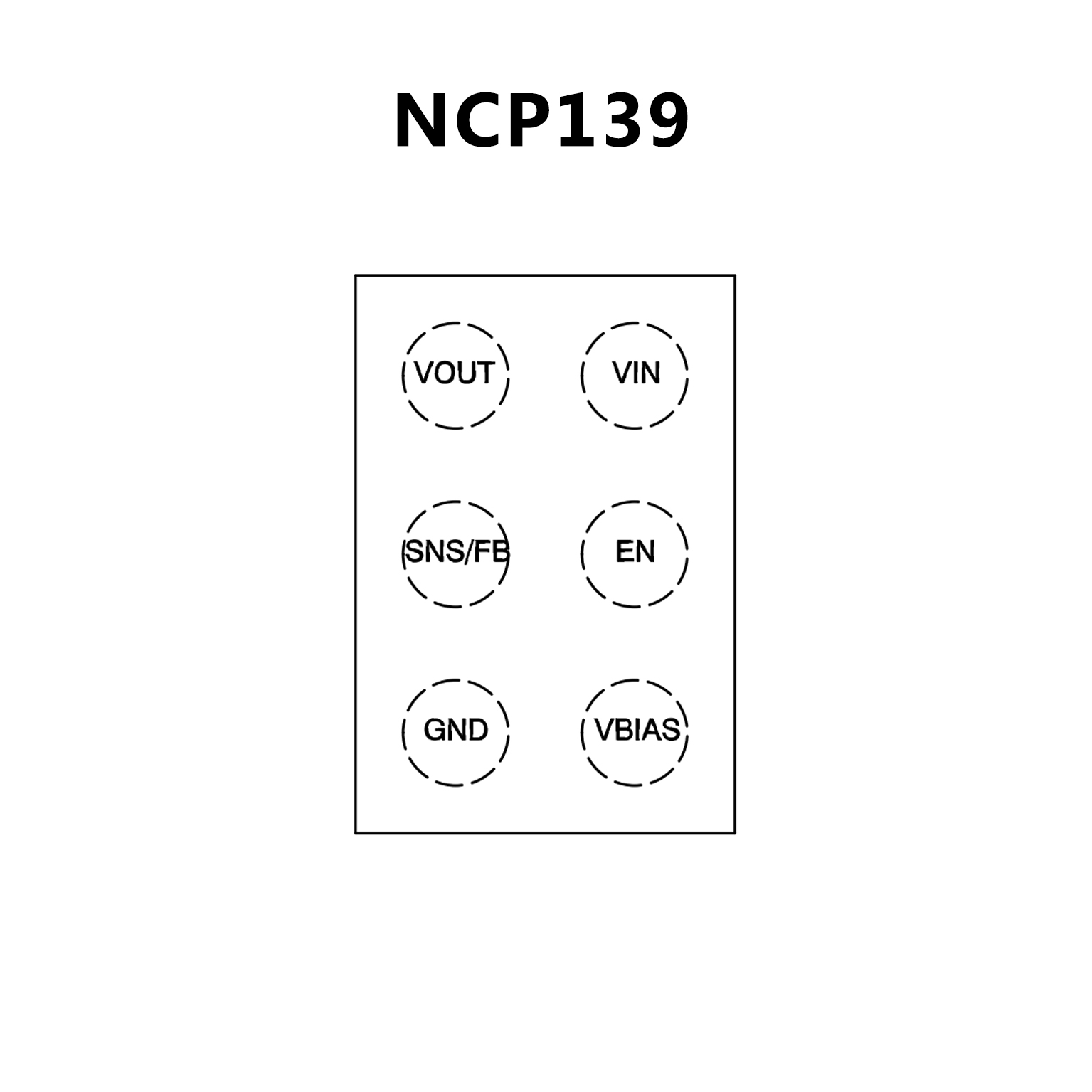

• Available in WLCSP6 − 1.2 mm x 0.8 mm, 0.4 mm
pitch Package
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHS Compliant
