• Wide Operating Input Voltage Range: 2.5V to 20V

• Fixed Outputs of 1.8V, 2.5V, 3.0V, 3.3V, 3.6V,

  4.2V,5.0V and 12V

• Adjustable Output from 1.8V to 12V

• Output Voltage Accuracy: ±1% at +25℃

• Low Dropout Voltage: 450mV (TYP) at 800mA

• Current Limiting and Thermal Protection

• Excellent Load and Line Transient Responses

• With Output Automatic Discharge

• No-Load Stability

• -40℃ to +125℃ Operating Temperature Range

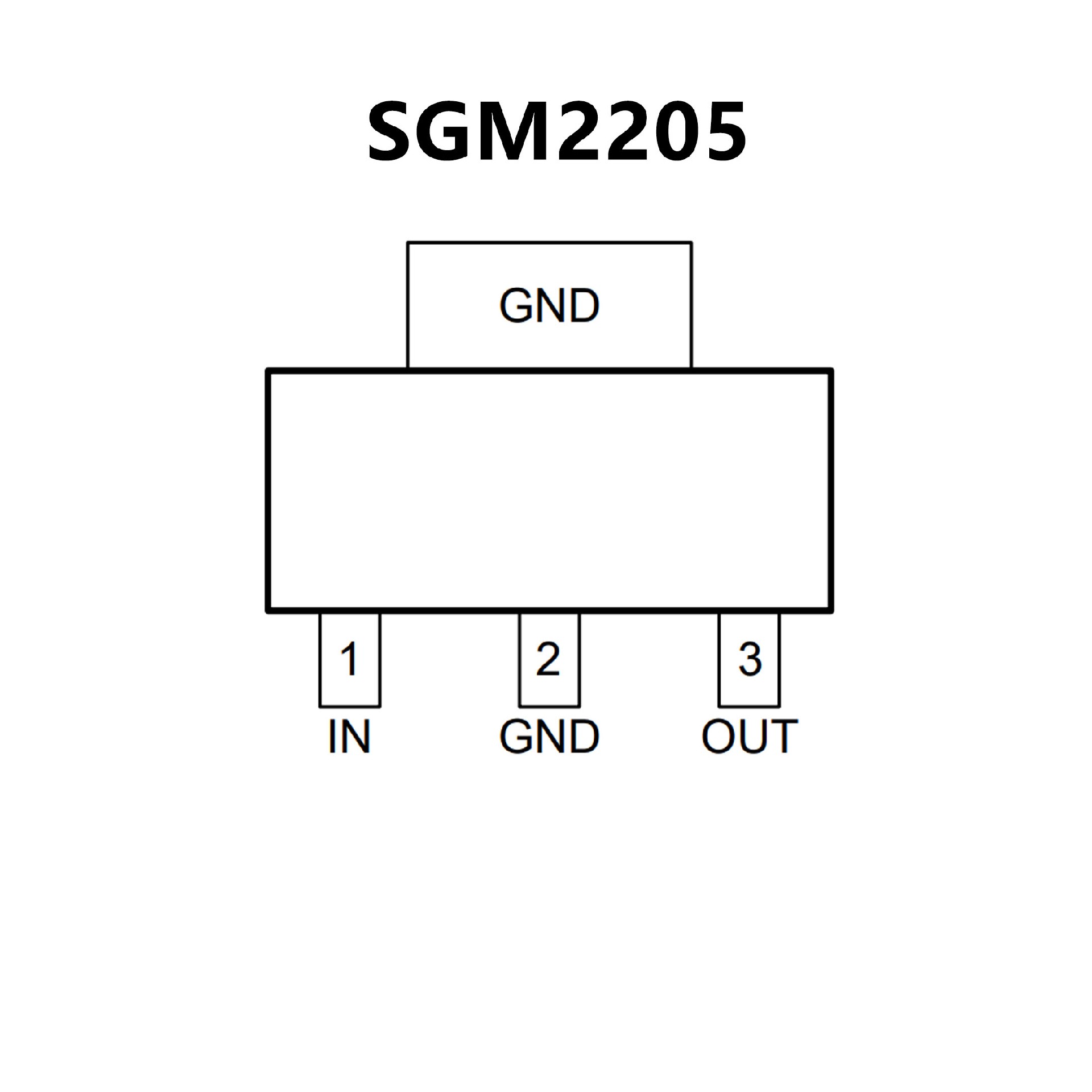

• Available in Green SOT-89-3, SOT-223-3, SOIC-8,

  TDFN-3×3-8L and TO-263-5B Packages
