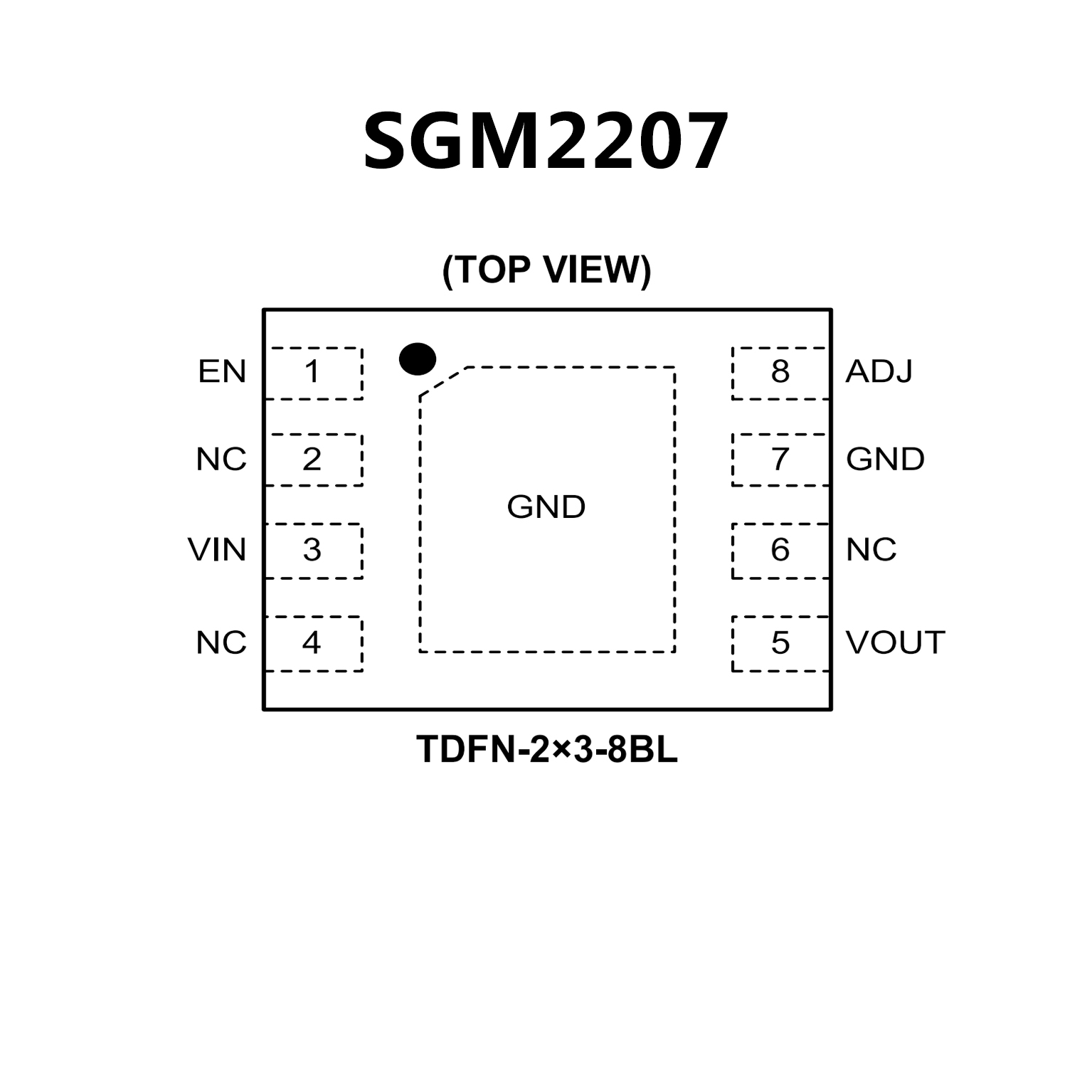

SGM2207.pdf• Wide Input Voltage Range: 2.5V to 20V
• Output Voltage Range: 1.8V to 12V
• Guaranteed 800mA Output Current over the Full
Operating Temperature Range
• Low Dropout Voltage: 400mV (TYP) at Full Load
• Extremely Tight Load and Line Regulations
• Fast Load Transient
• Low Output Voltage Temperature Coefficient
• Output Short Circuit Protection
• Current and Thermal Limiting
• No-Load Stability
• -40℃ to +125℃ Operating Temperature Range
• Thermally-Efficient Surface-Mount Package
• Available in a Green TDFN-2×3-8BL Package

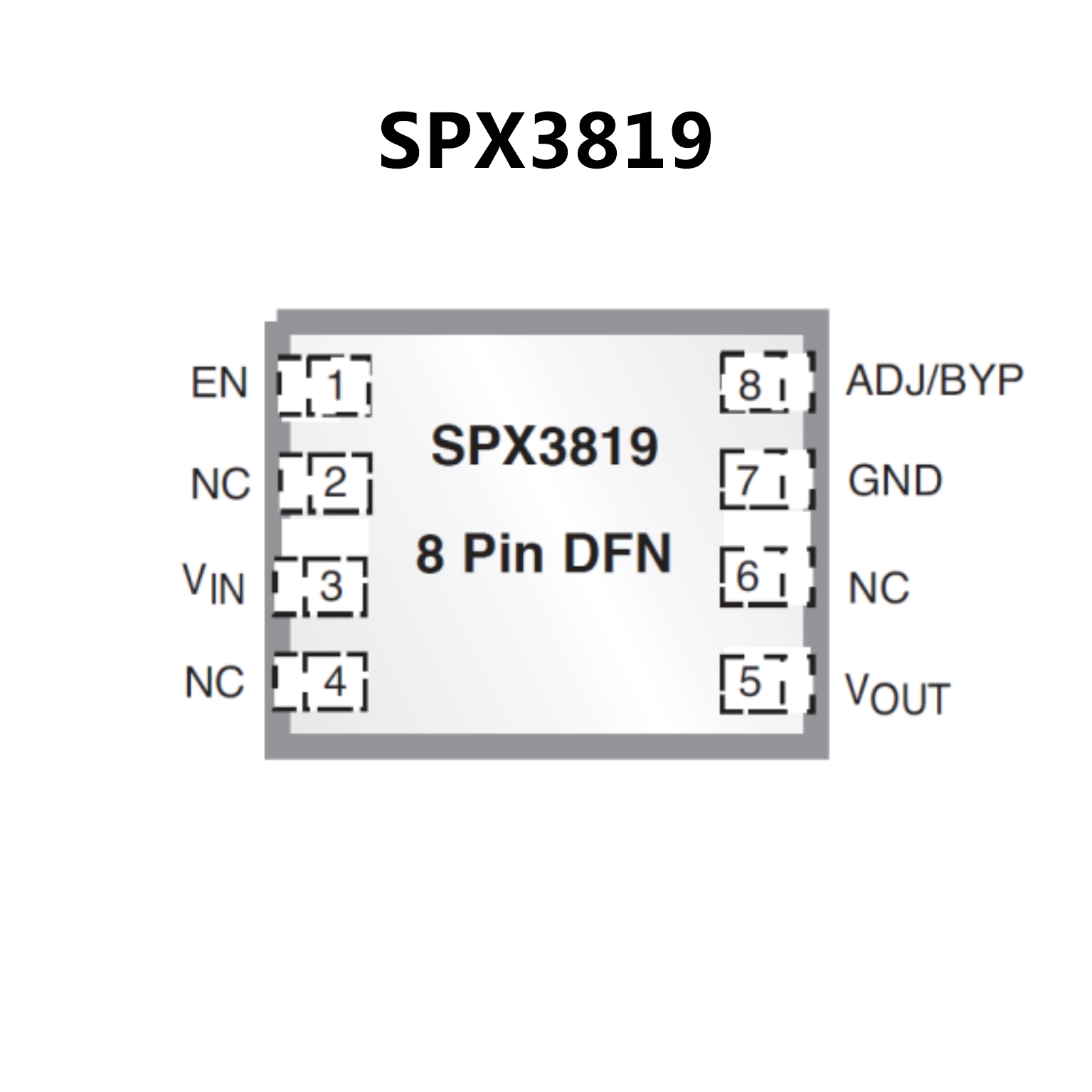

• Low Noise: 40μV Possible
• High Accuracy: 1%
• Reverse Battery Protection
• Low Dropout: 340mV at Full Load
• Low Quiescent Current: 90μA
• Zero Off-Mode Current
• Fixed & Adjustable Output Voltages:
− 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V Fixed
Output Voltages
− ≥1.235V Adjustable Output Voltages
