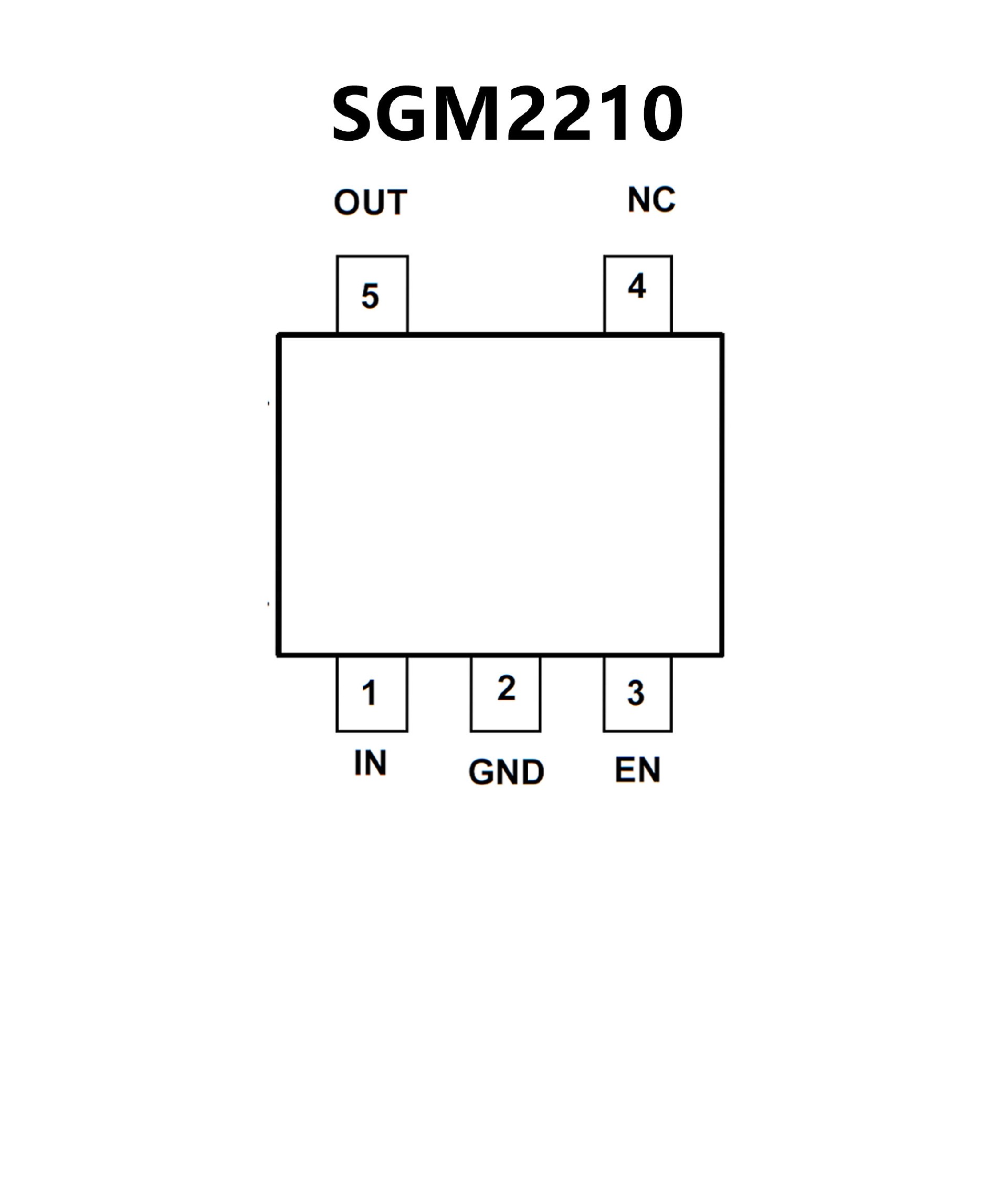

SGM2210-5.0.pdf• Input Voltage Range: 2.5V to 20V
• Low Dropout Voltage: 80mV (TYP) at 100mA Load
• Low Quiescent Current: 36μA (TYP)
• Shutdown Current: 0.5μA (TYP)
• Output Voltage Accuracy: ±1% at +25℃
• 300mA Guaranteed Output Current
• Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
• Adjustable Output Voltages: 1.2V to 12V
• Logic-Controlled Shutdown
• Output Short-Circuit Constant
Current Limitingand Thermal Protection
• -40℃ to +125℃ Operating Temperature Range

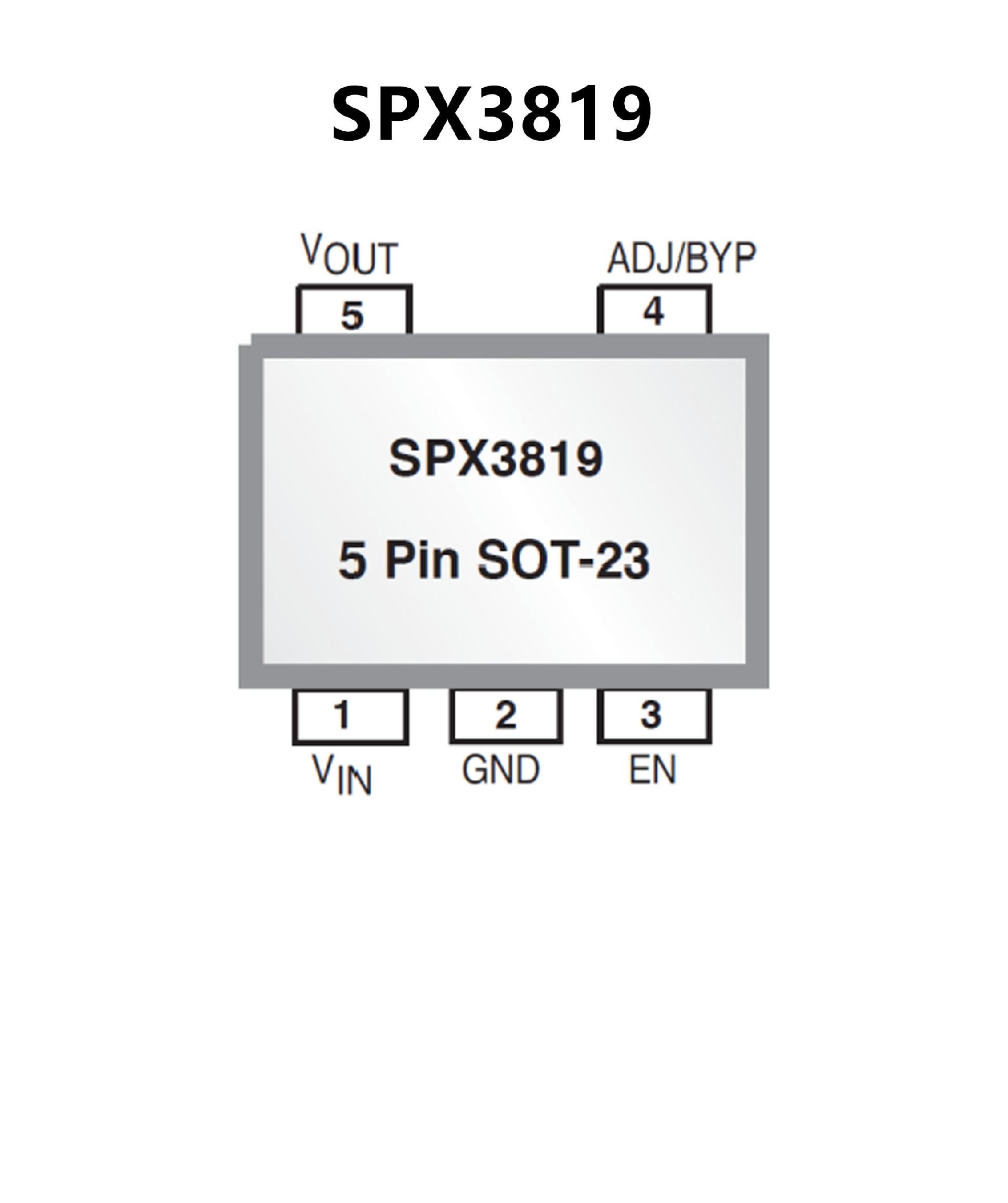

• Available in a Green SOT-23-5 Package
• Low Noise: 40μV Possible
• High Accuracy: 1%
• Reverse Battery Protection
• Low Dropout: 340mV at Full Load
• Low Quiescent Current: 90μA
• Zero Off-Mode Current
• Fixed & Adjustable Output Voltages:
1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V
Fixed Output Voltages
≥1.235V Adjustable Output Voltages
• Available in RoHS Compliant, Lead Free
Packages:
5-pin SOT-23, 8-pin SOIC and 8-pin DFN
