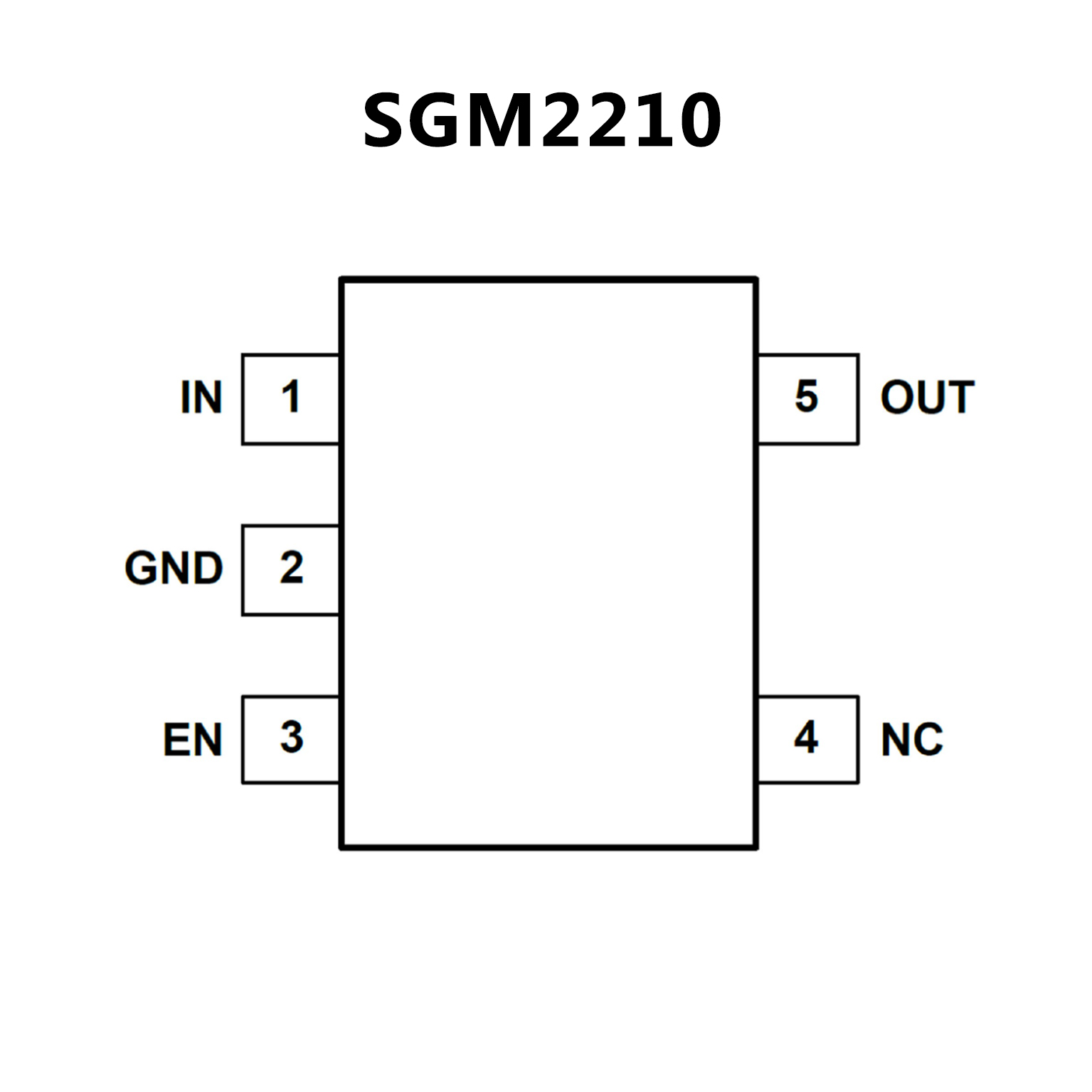

SGM2210.pdf• Input Voltage Range: 2.5V to 20V
• Low Dropout Voltage: 80mV (TYP) at 100mA Load
• Low Quiescent Current: 36μA (TYP)
• Shutdown Current: 0.5μA (TYP)
• Output Voltage Accuracy: ±1% at +25℃
• 300mA Guaranteed Output Current
• Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
• Adjustable Output Voltages: 1.2V to 12V
• Logic-Controlled Shutdown
• Output Short-Circuit Constant Current L
imiting
and Thermal Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

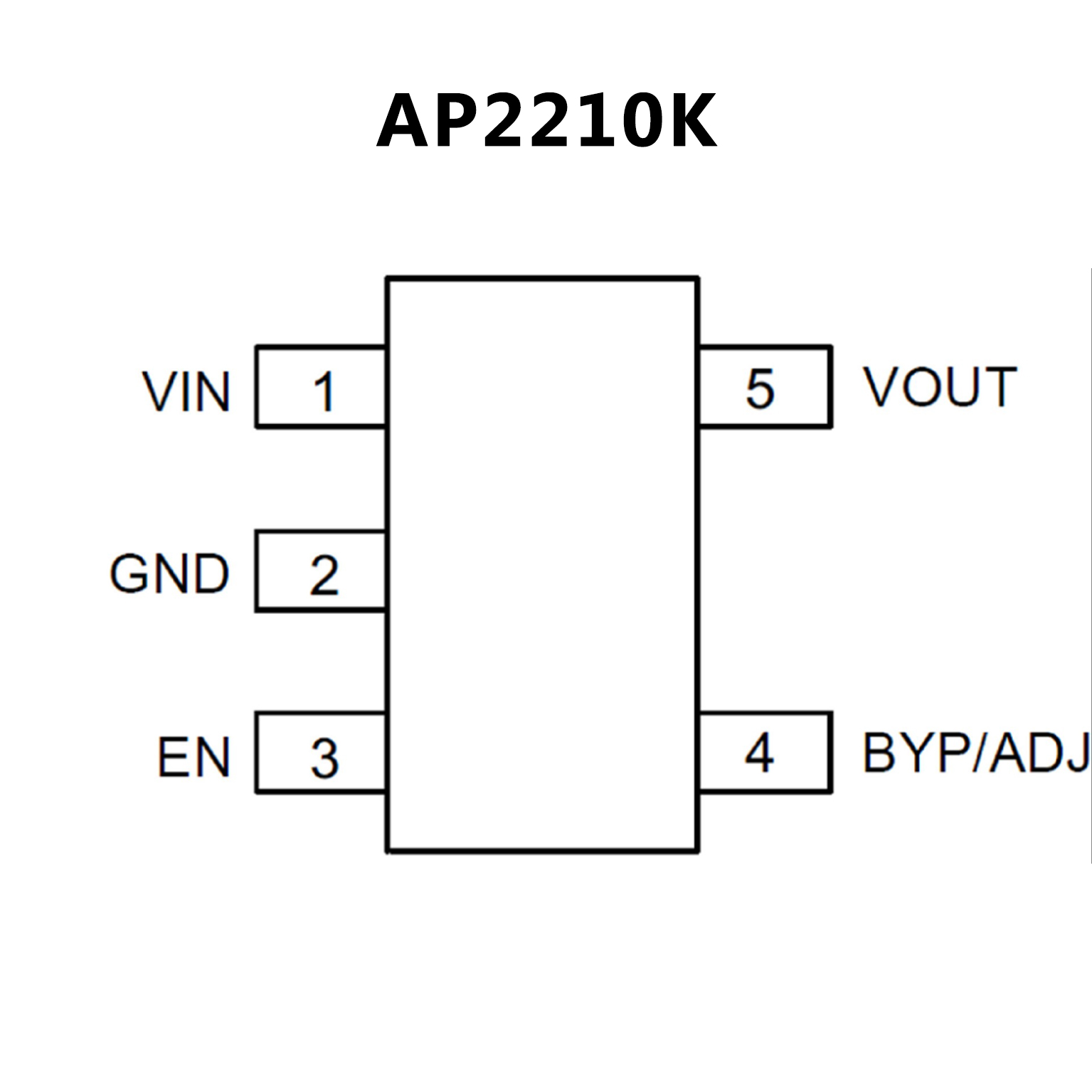

• Up to 300mA Output Current
• Excellent ESR Stability
• Low Standby Current
• Low Dropout Voltage:
VDROP = 250mV at 300mA
• High Output Accuracy: ±1%
• Good Ripple Rejection Ability:
75dB at 100Hz and IOUT = 100µA
• Tight Load and Line Regulation
• Low Temperature Coefficient
• Over Current Protection
• Thermal Protection
• Reverse-battery Protection
• Logic-controlled Enable
• Lead-Free Packages: SOT-23-3, SOT-23-5
