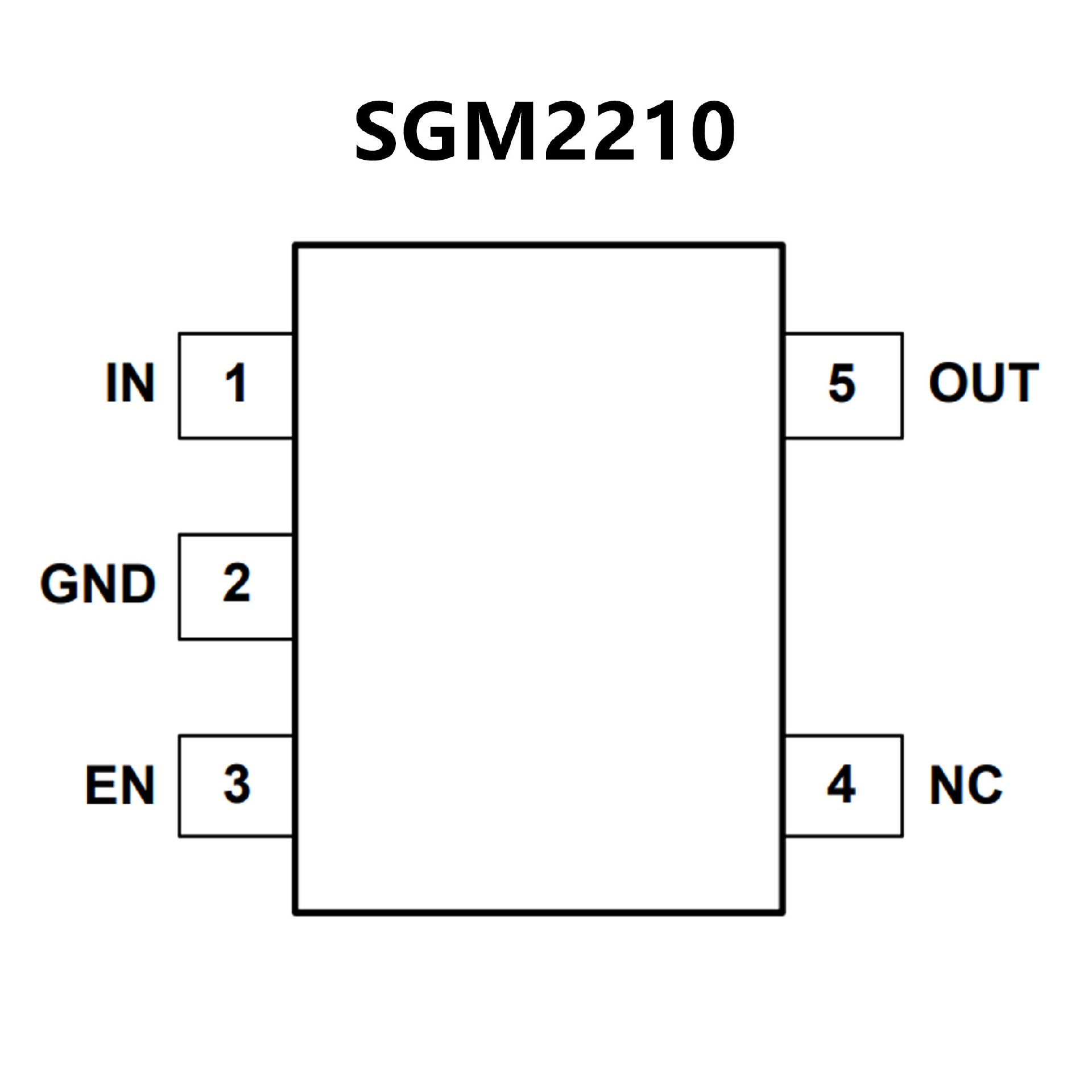

SGM2210.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

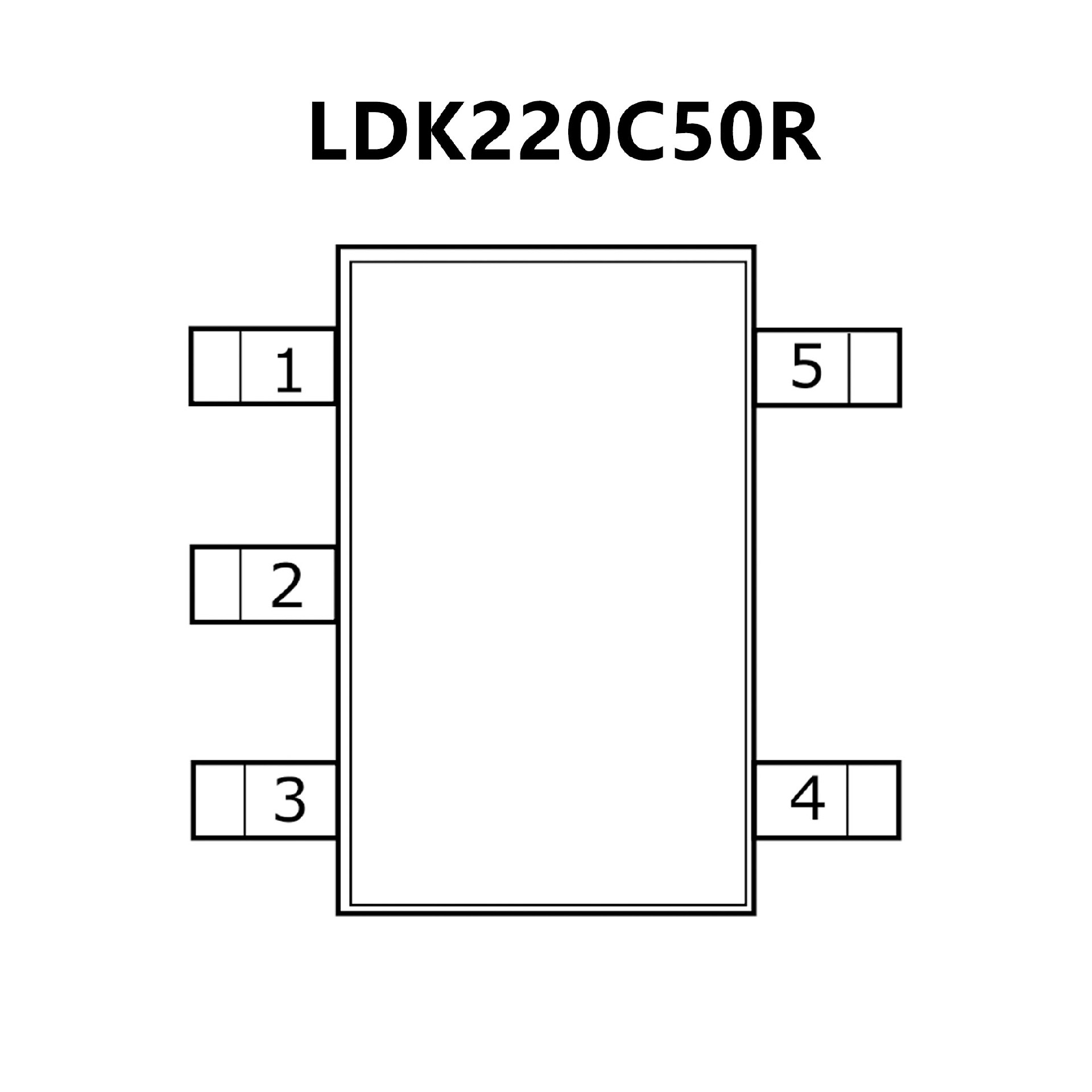

• Input voltage from 2.5 to 13.2 V
• Very low-dropout voltage
(100 mV typ. @100 mA load)
• Low quiescent current
(typ. 55 µA, 1 µA inoff mode)
• Low noise
• Output voltage tolerance: ± 2.0% @ 25 °C
• 200 mA guaranteed output current
• Wide range of output voltages available
onrequest: fixed from 1.2 V to 12 V
with100 mV step and adjustable
• Logic-controlled electronic shutdown
• Compatible with ceramic capacitorCOUT = 1 µF
• Internal current and thermal limit
• Available in SOT23-5L, SOT323-5L, SOT-89
and DFN6-1.2x1.3 packages
• Temperature range: -40 °C to 125 °C
