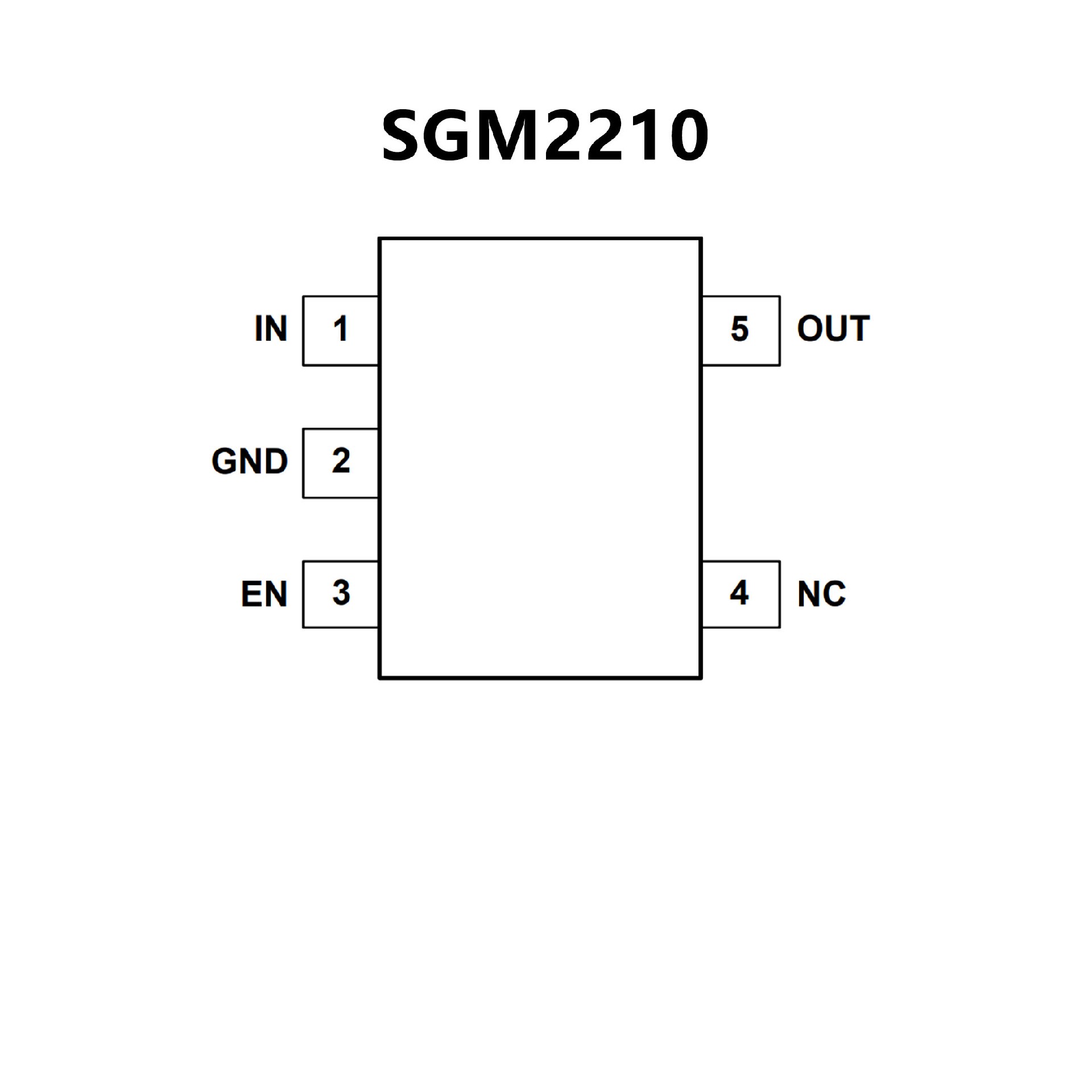

SGM2210.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

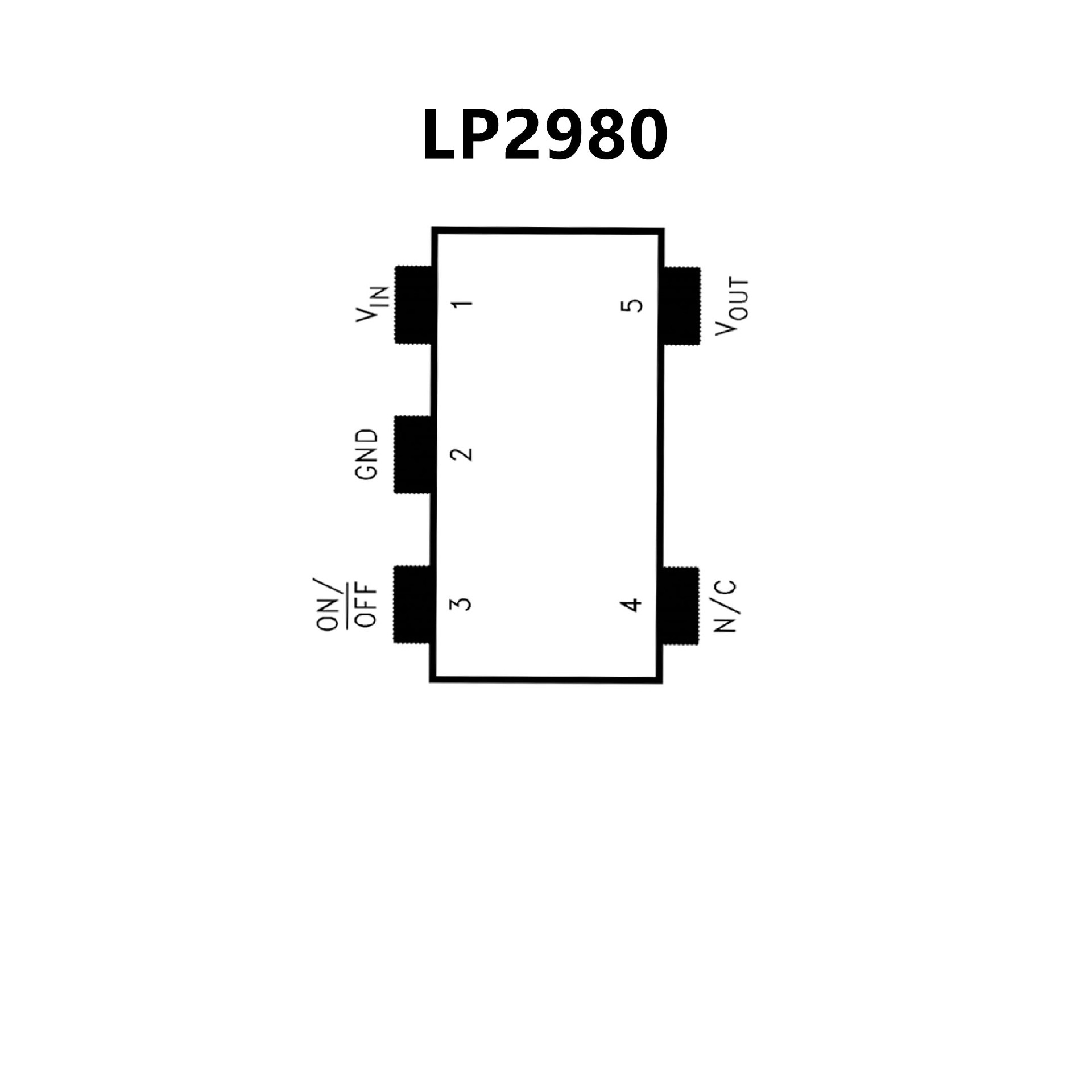

• Ultra low dropout voltage
• Output voltage accuracy 0.5% (A Grade)
• Guaranteed 50 mA output current
• Smallest possible size (SOT-23, micro SMD package)
• Requires only 1 µF external capacitance
• < 1 µA quiescent current when shutdown
• Low ground pin current at all load currents
• High peak current capability (150 mA typical)
• Wide supply voltage range (16V max)
• Fast dynamic response to line and load
• Low ZOUT over wide frequency range
• Overtemperature/overcurrent protection
• −40˚C to +125˚C junction temperature range
