300mA, Low Quiescent Current and Low Noise Linear Regulator, SGM2210 Replace LP2985.
FEATURES

 Input Voltage Range: 2.5V to 20V

 Low Dropout Voltage: 80mV (TYP) at 100mA Load

 Low Quiescent Current: 36μA (TYP)

 Shutdown Current: 0.5μA (TYP)

 Output Voltage Accuracy: ±1% at +25℃

 300mA Guaranteed Output Current

 Fixed Output Voltage Versions:

  1.2V to 5.0V with 100mV per Step

 Adjustable Output Voltages: 1.2V to 12V

 Logic-Controlled Shutdown

 Output Short-Circuit Constant Current Limiting

  and Thermal Protection

 -40℃ to +125℃ Operating Temperature Range

 Available in a Green SOT-23-5 Package

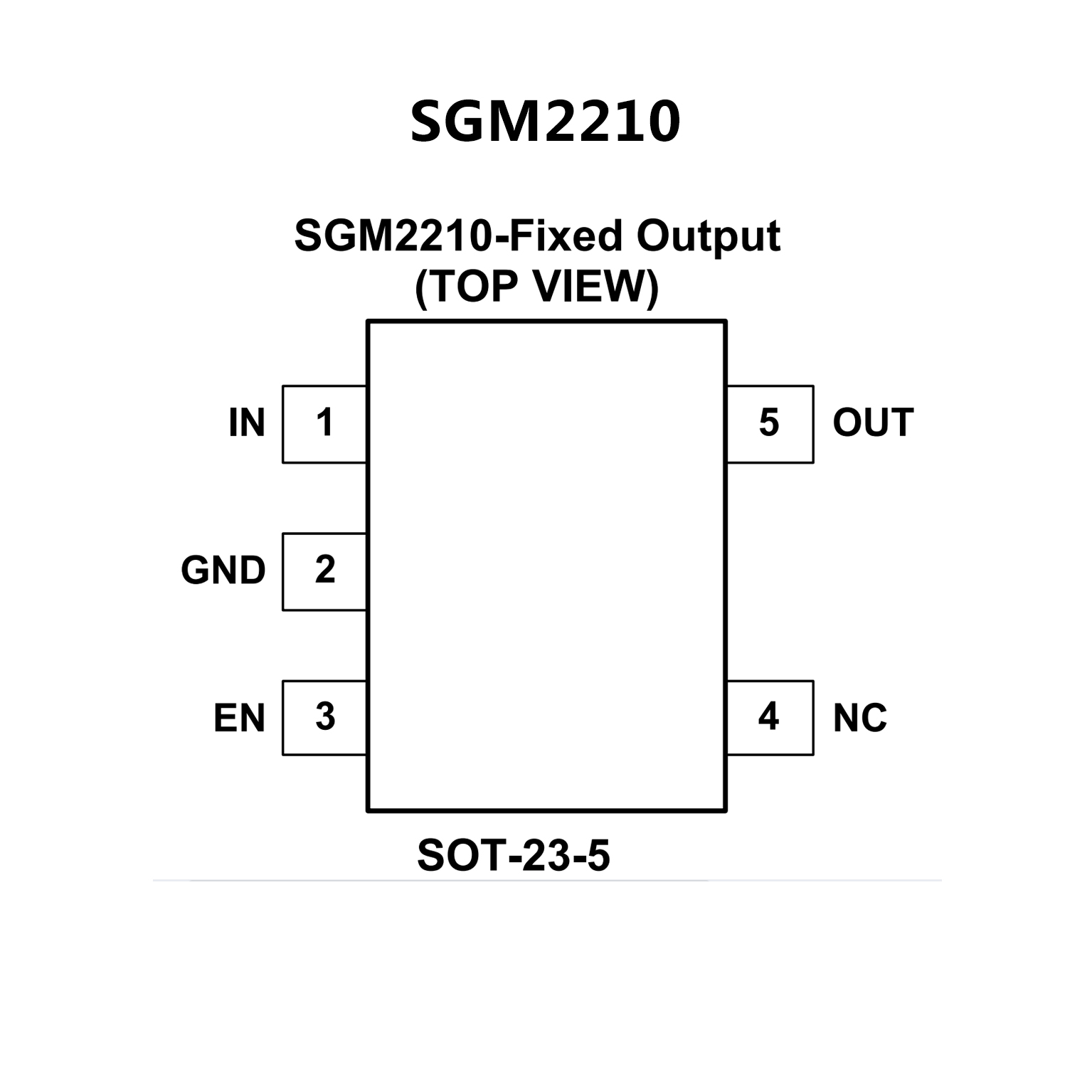

PIN CONFIGUTION
优势替代
LP2985 LP2985.pdf

No.11598

FEATURES

• Output Tolerance of

   1% (A Grade)

   1.5% (Standard Grade)

• Ultra-Low Dropout, Typically

   280 mV at Full Load of 150 mA

   7 mV at 1 mA

• Wide VIN Range: 16 V Max

• Low IQ: 850 μA at Full Load at 150 mA

• Shutdown Current: 0.01 μA Typ

• Low Noise: 30 μVRMS With 10-nF Bypass Capacitor

• Stable With Low-ESR Capacitors, Including  Ceramic

• Overcurrent and Thermal Protection

• High Peak-Current Capability

• ESD Protection Exceeds JESD 22

   2000-V Human-Body Model (A114-A)

   200-V Machine Model (A115-A)

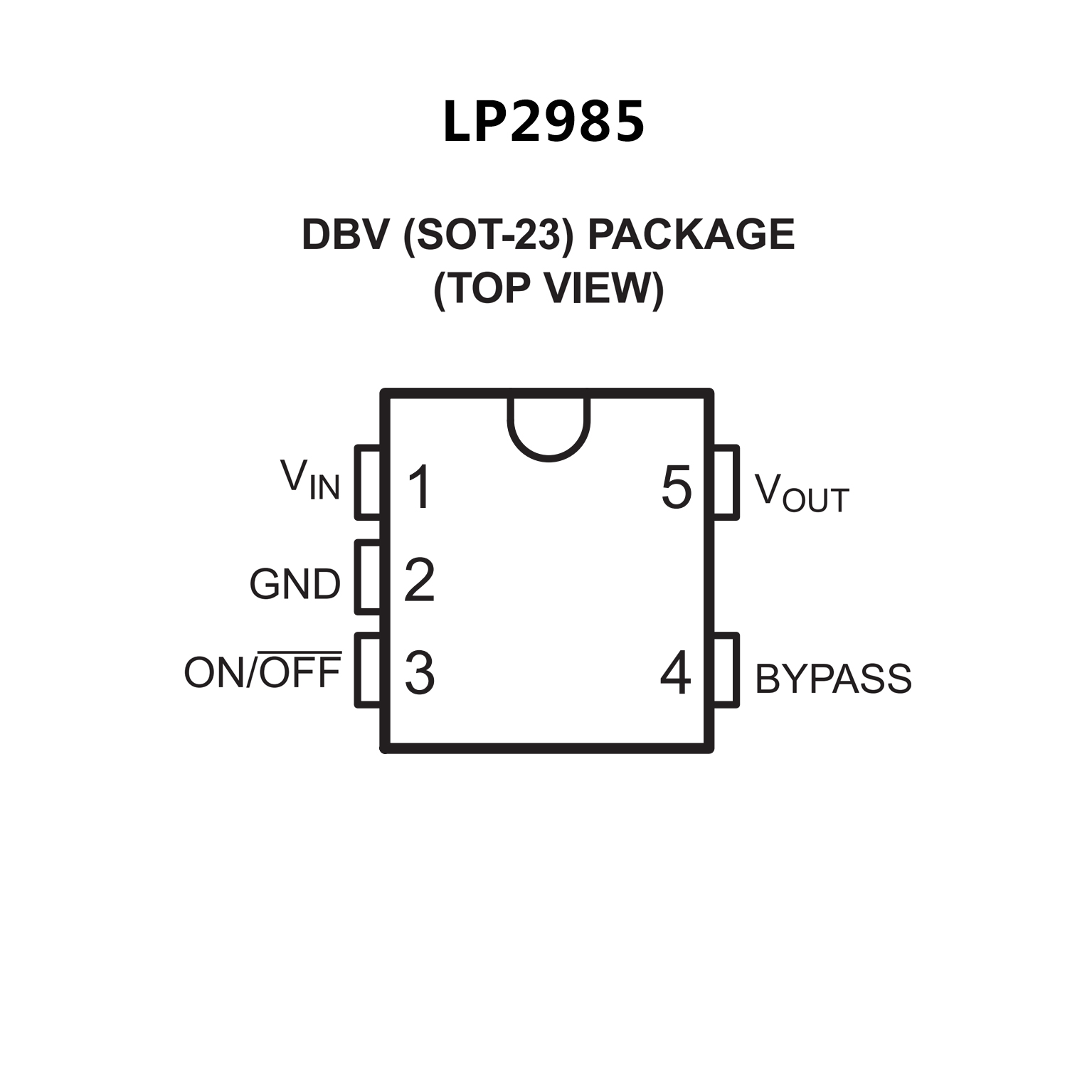

PIN CONFIGUTION
