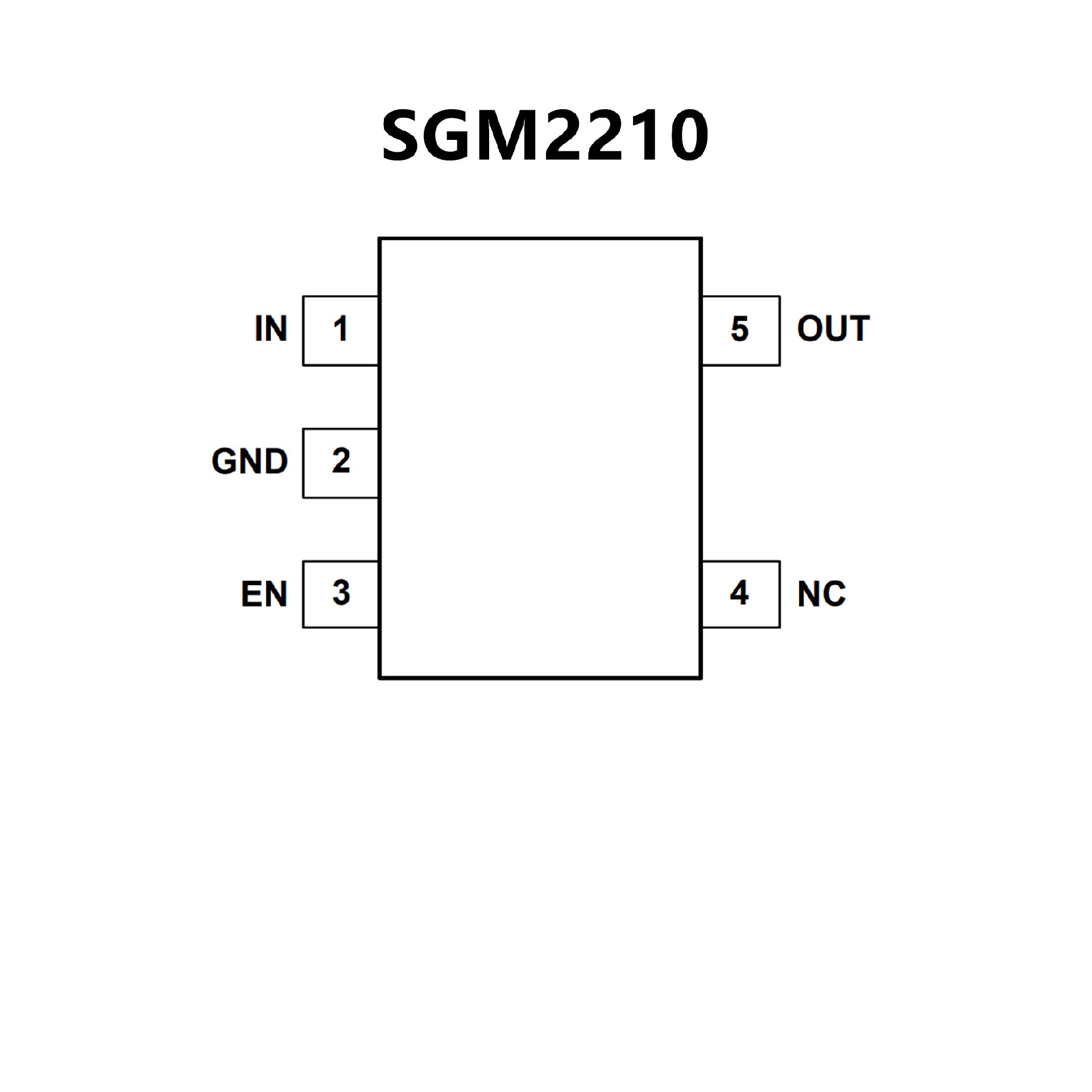

SGM2210.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

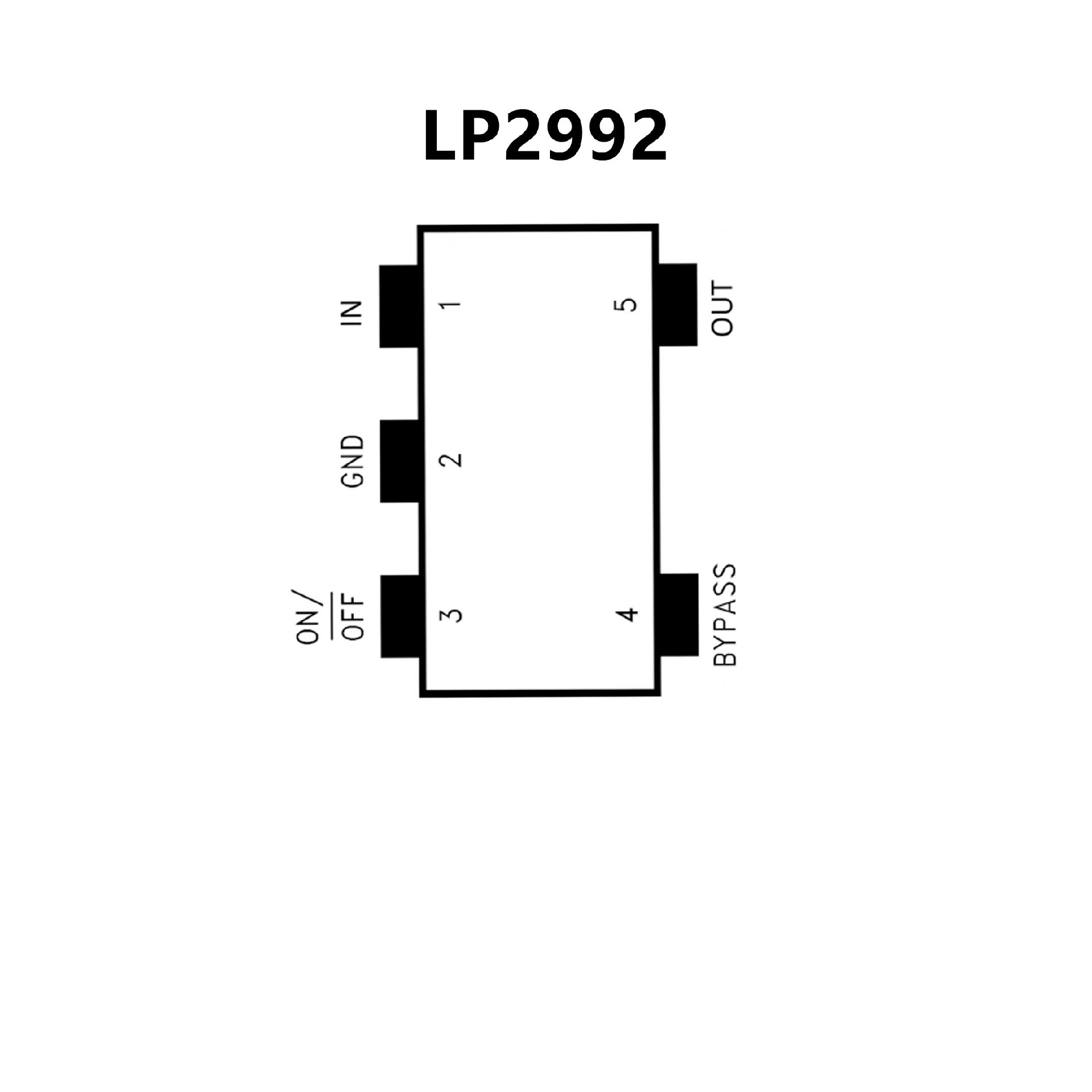

• Input Voltage Range: 2.2 V to 16 V
• Output Voltage Range: 1.5 V to 5 V
• Wide Supply Voltage Range (16-V Maximum)
• Output Voltage Accuracy 1% (A Grade)
• Ultra-Low-Dropout Voltage
• Specified 250-mA Output Current
• Stable With Low-ESR Output Capacitor
• < 1-µA Quiescent Current When Shut Down
• Low Ground Pin Current at All Loads
• High Peak Current Capability
• Low ZOUT: 0.3-Ω Typical (10 Hz to 1 MHz)
• Overtemperature and Overcurrent Protection
• −40°C to +125°C Junction Temperature Range
• Smallest Possible Size (SOT-23, WSON
Package)
• Requires Minimum External Components
• Custom Voltages Available
