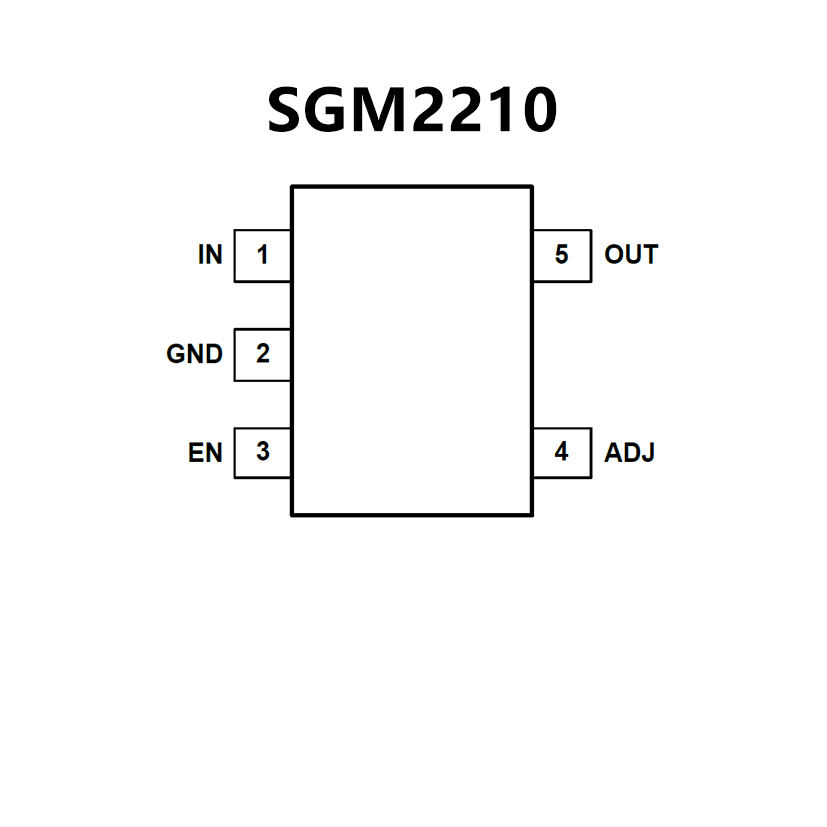

SGM2210-5.0XN5G.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

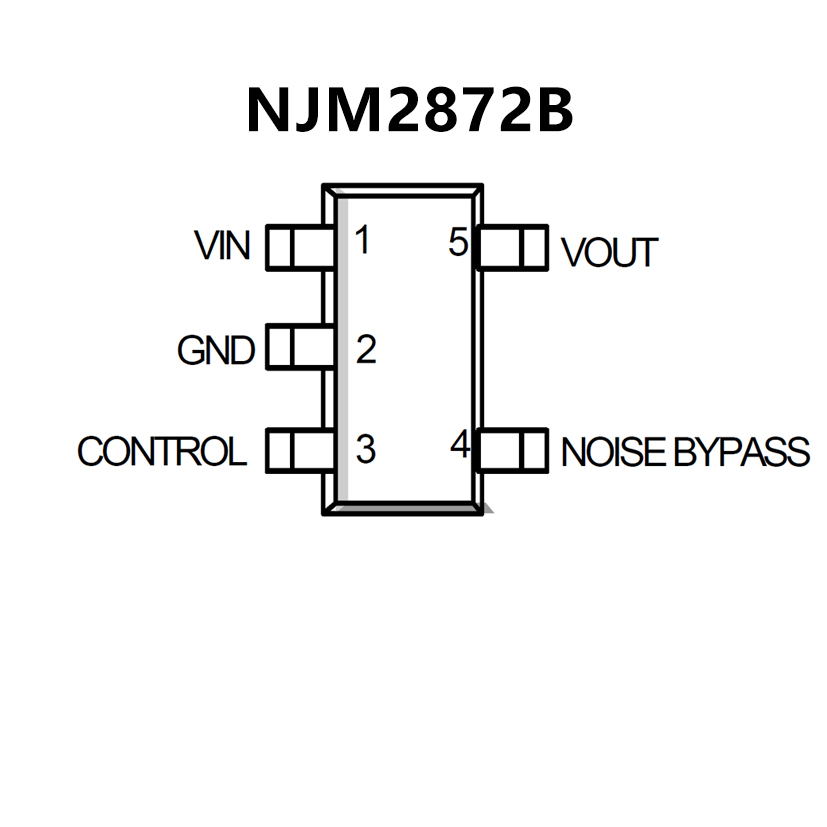

• High Ripple Rejection 75dB typ. (f=1kHz Vo=3V version)
• Output Noise Voltage Vno=30μVrms typ. (Cp=0.01μF)
• Output capacitor with 1.0uF ceramic
capacitor(Vo≥2.7V: Version)
• Output Current Io(max.)=150mA
• High Precision Output Vo ±1.0%
• Low Dropout Voltage 0.10V typ. (Io=60mA)
• Input Voltage Range +2.3 ∼ +14V(Vo≤2.0V version)
• ON/OFF Control (Active High)
• Internal Short Circuit Current Limit
• Internal Thermal Overload Protection
• Bipolar Technology
• Package Outline SOT-23-5 (MTP5)
