• Operating Input Voltage Range: 2.5V to 20V

• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V

• Adjustable Output from 1.2V to 12V

• 300mA Output Current

• Output Voltage Accuracy: ±1% at +25℃

• Quiescent Current: 36μA (TYP)

• Low Dropout: 80mV (TYP) at 100mA, V_OUT = 3.3V

• Low Noise: 48μVRMS (TYP) at V_OUT = 3.3V

• High PSRR: 100dB (TYP) at 1kHz

• Current Limiting and Thermal Protection

• With Output Automatic Discharge

• Stable with Small Case Size Ceramic Capacitors

• Shutdown Supply Current: 0.5μA (TYP)

• -40℃ to +125℃ Operating Temperature Range

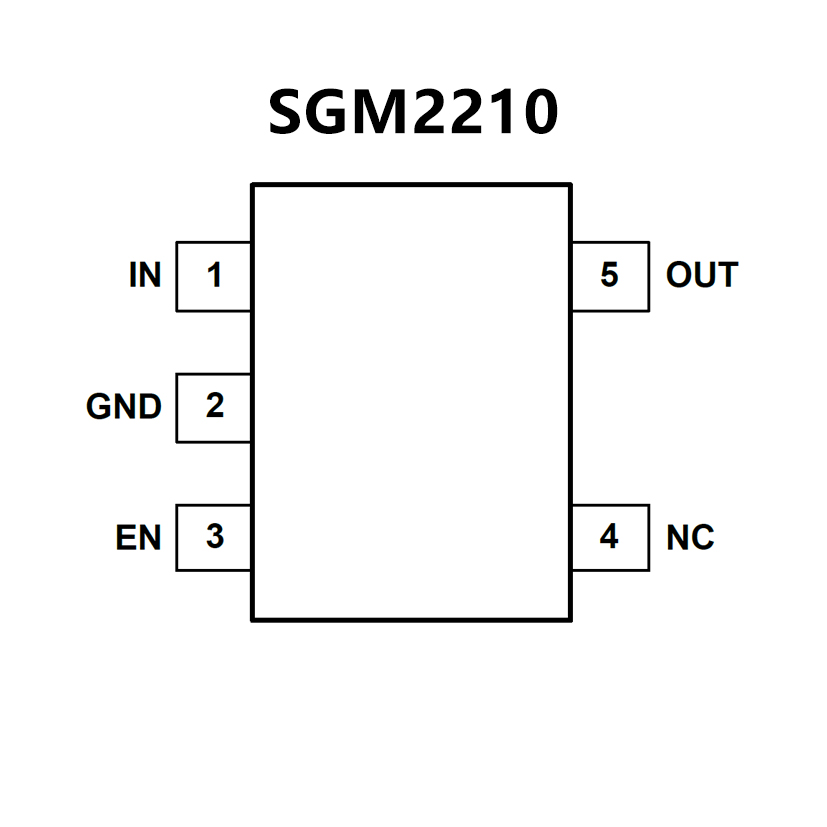

• Available in a Green SOT-23-5 Package
