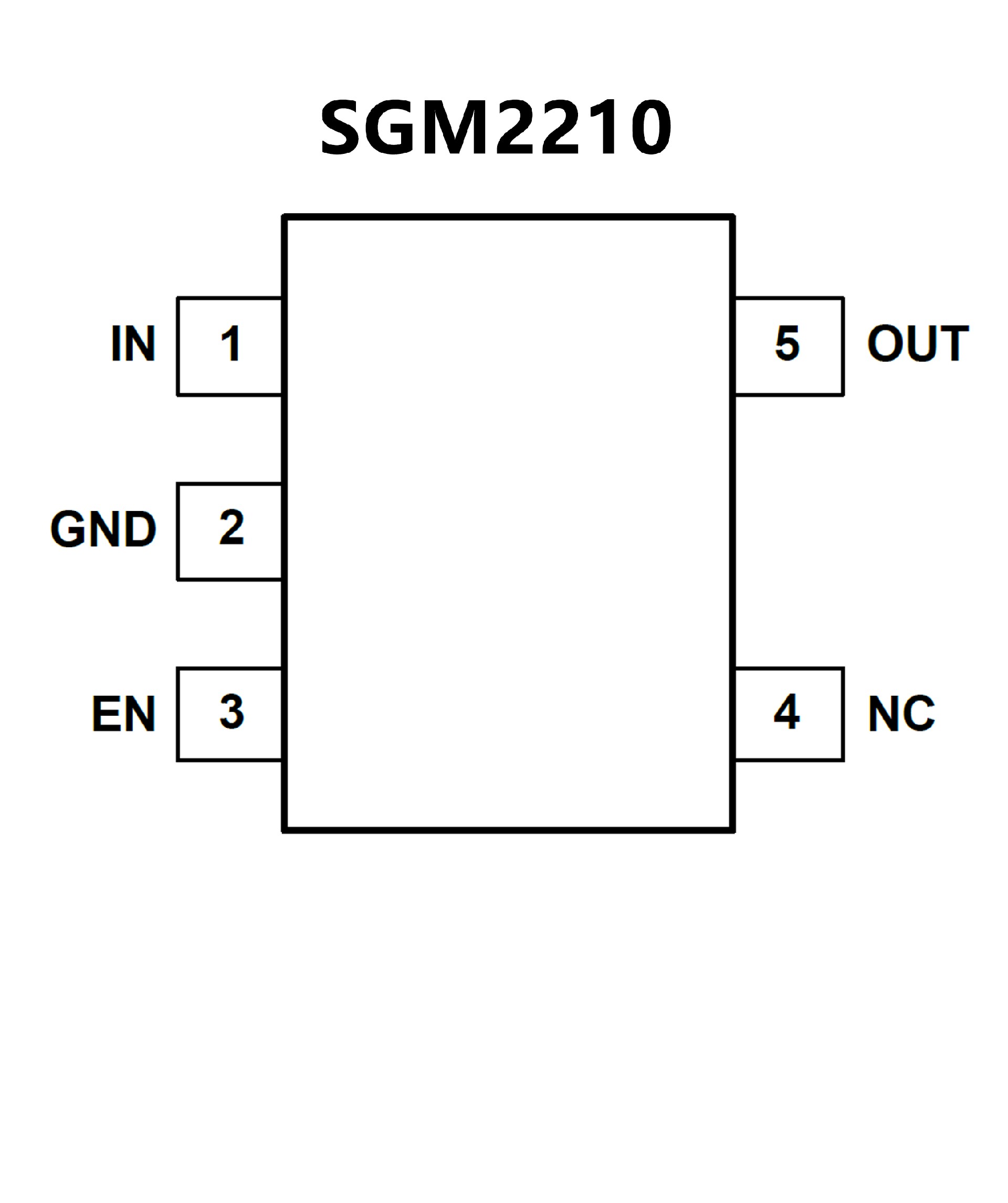

SGM2210-3.3.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

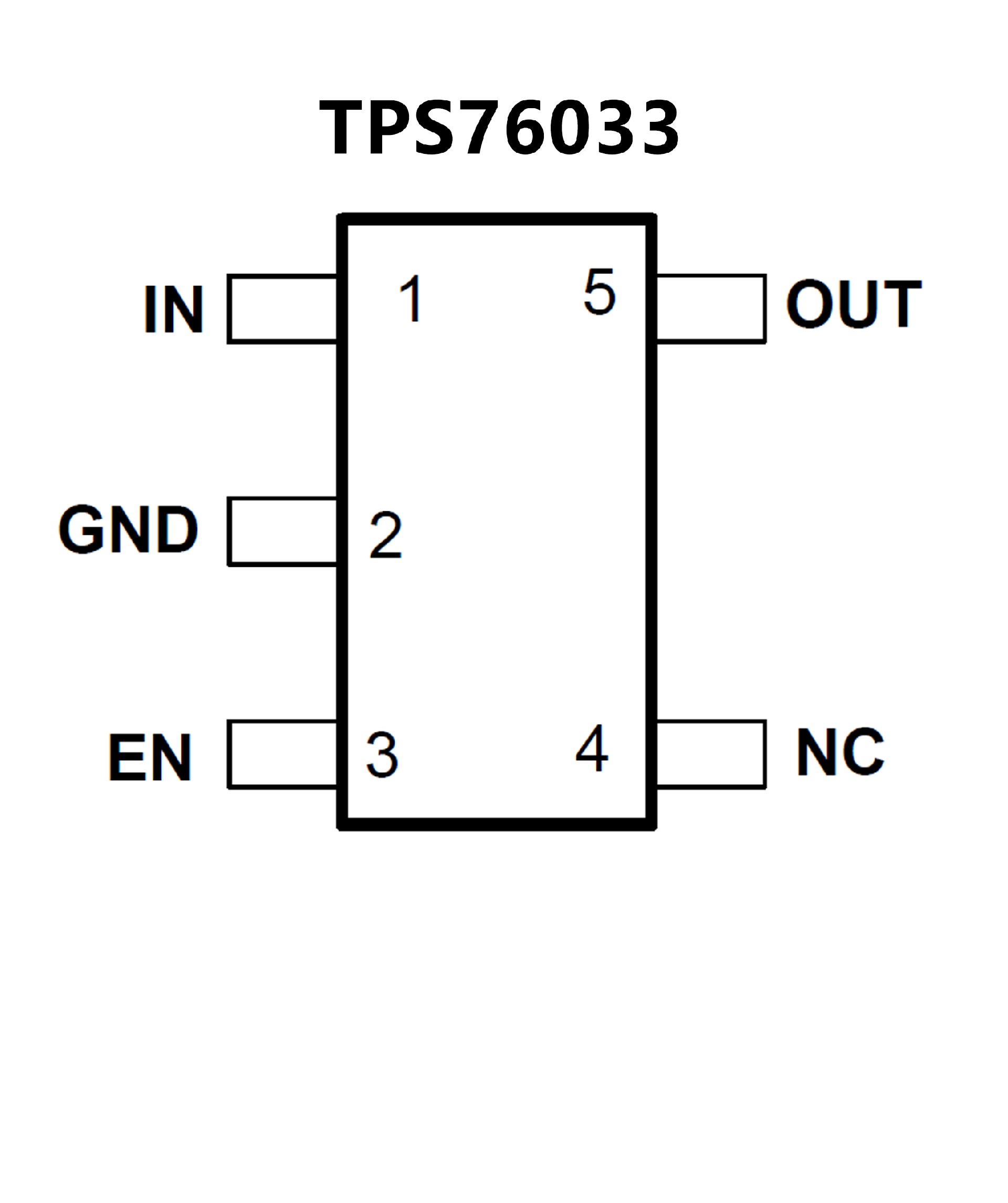

• 50-mA Low-Dropout Regulator
• Fixed Output Voltage Options: 5 V, 3.8 V,
3.3 V, 3.2 V, and 3 V
• Dropout Typically 120 mV at 50 mA
• Thermal Protection
• Less Than 1-μA Quiescent Current in
Shutdown
• –40°C to 125°C Operating Junction
Temperature Range
• 5-Pin SOT-23 Package
• ESD Protection Verified to 1.5 kV Human
Body Model (HBM) per MIL-STD-883C
