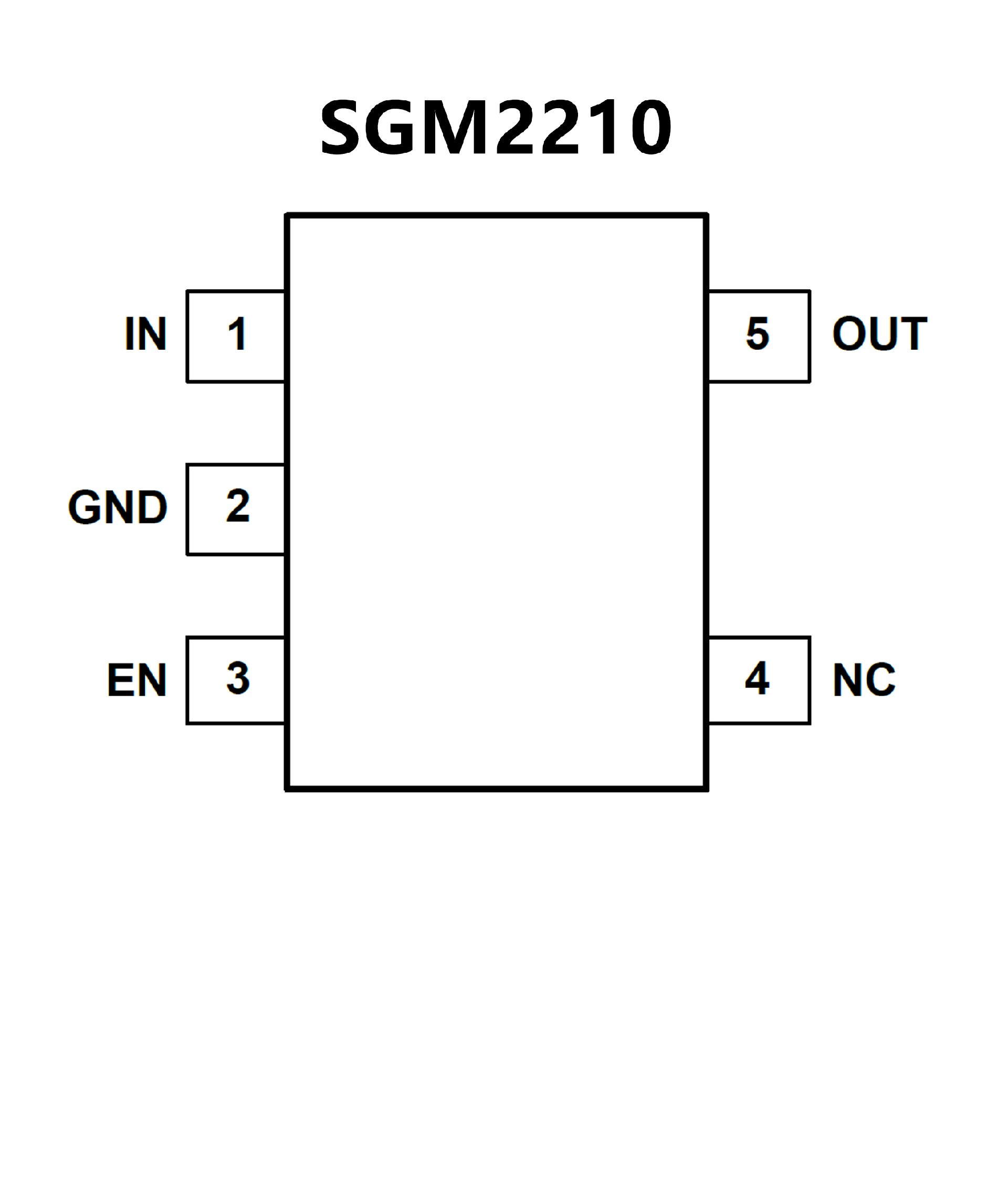

SGM2210-3.3.pdf• Operating Input Voltage Range: 2.5V to 20V
• Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
• Adjustable Output from 1.2V to 12V
• 300mA Output Current
• Output Voltage Accuracy: ±1% at +25℃
• Quiescent Current: 36μA (TYP)
• Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
• Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
• High PSRR: 100dB (TYP) at 1kHz
• Current Limiting and Thermal Protection
• With Output Automatic Discharge
• Stable with Small Case Size Ceramic Capacitors
• Shutdown Supply Current: 0.5μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23-5 Package

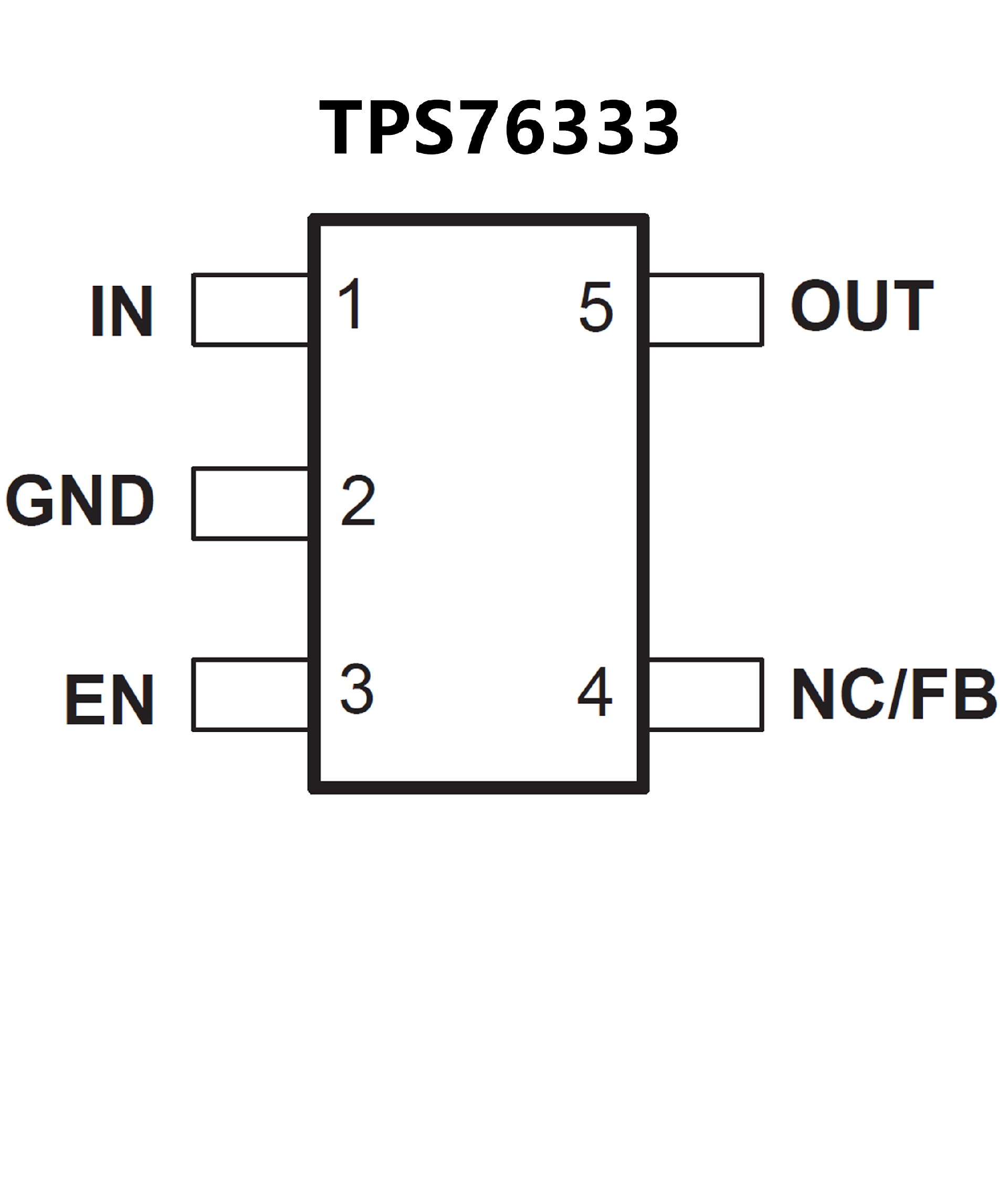

• 150-mA Low-Dropout Regulator
• Output Voltage: 5 V, 3.8 V, 3.3 V, 3.0 V, 2.8 V,
2.7 V, 2.5 V, 1.8 V, 1.6 V and Variable
• Dropout Voltage, Typically 300 mV
at 150 mA
• Thermal Protection
• Over Current Limitation
• Less Than 2-μA Quiescent Current in
Shutdown Mode
• −40°C to 125°C Operating Junction
Temperature Range
• 5-Pin SOT-23 (DBV) Package
