• Input Voltage Range: 2.7V to 20V

• Output Voltage Accuracy: ±1% at +25℃

• Adjustable Output Voltages: 1.2V to (V_IN - V_DROP)

• Low Noise:

  9.3μVRMS at V_OUT = 1.2V

  11μVRMS at V_OUT = 2.8V

  14μVRMS at V_OUT = 5.0V

• PSRR (VIN = V_OUT(NOM) + 1V):

  100dB at 1kHz

  83dB at 10kHz

  52dB at 100kHz

  55dB at 1MHz

• Low Dropout Voltage:

  360mV (TYP) at 500mA Load when V_OUT = 5.0V

• Low Quiescent Current: 39μA (TYP)

• Shutdown Current: 1.2μA (TYP)

• Stable with a 2.2μF Ceramic Output Capacitor

• Reverse Current Protection when V_OUT > V_IN

• Foldback Current-Limit Protection

   when V_OUT is Shorted to GND

• Automatic V_OUT Discharge when Disabled

• Programmable Precision Enable

• Programmable Soft-Start (TDFN Package Only)

• -40℃ to +125℃ Operating Temperature Range

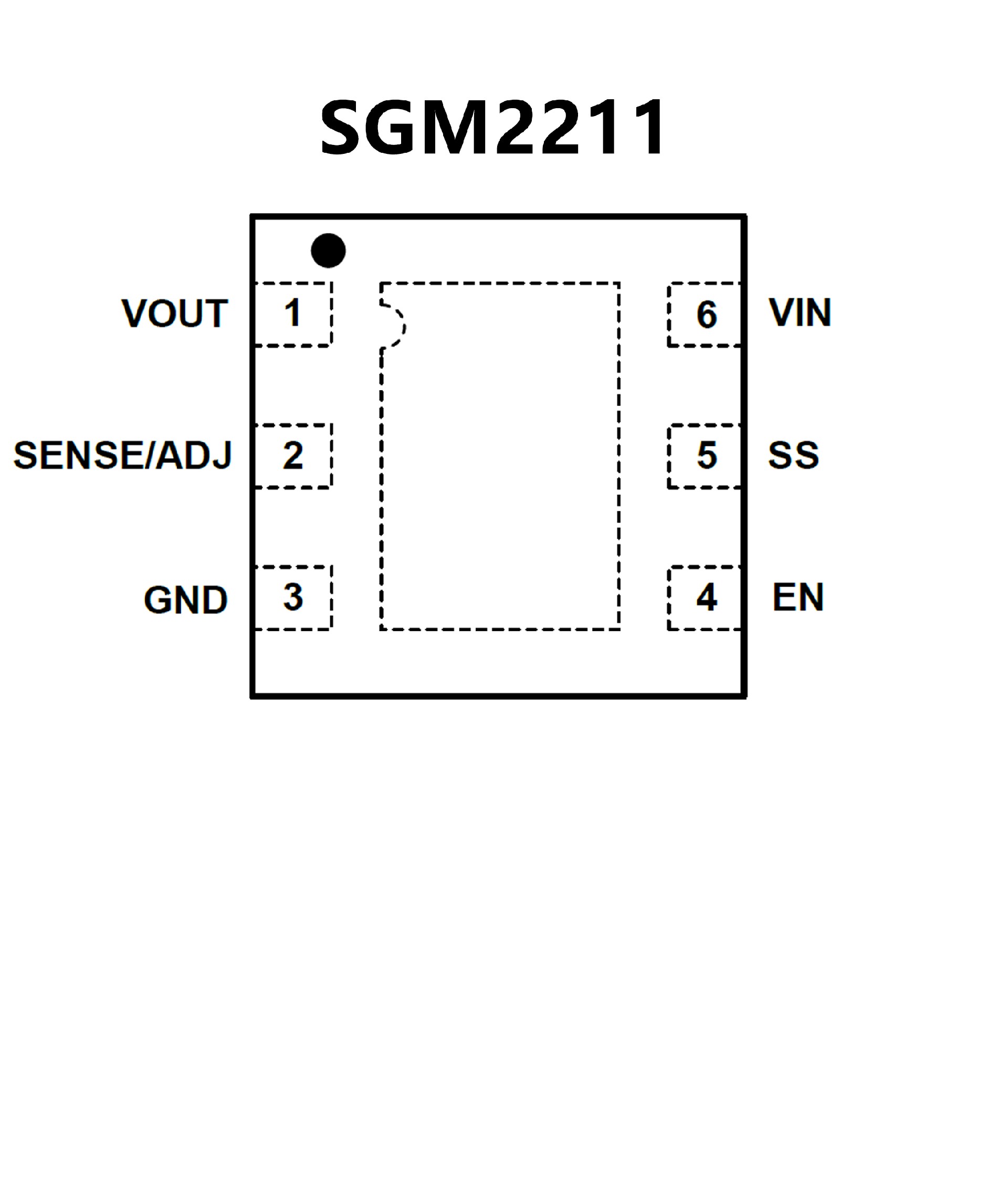

• Available in Green TDFN-2×2-6AL and SOT-23-5 Packages
