800mA, Low Noise, Low Quiescent Current,HighPSRR, Low Dropout Linear Regulator, SGM2212 P2P AMS1117.
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

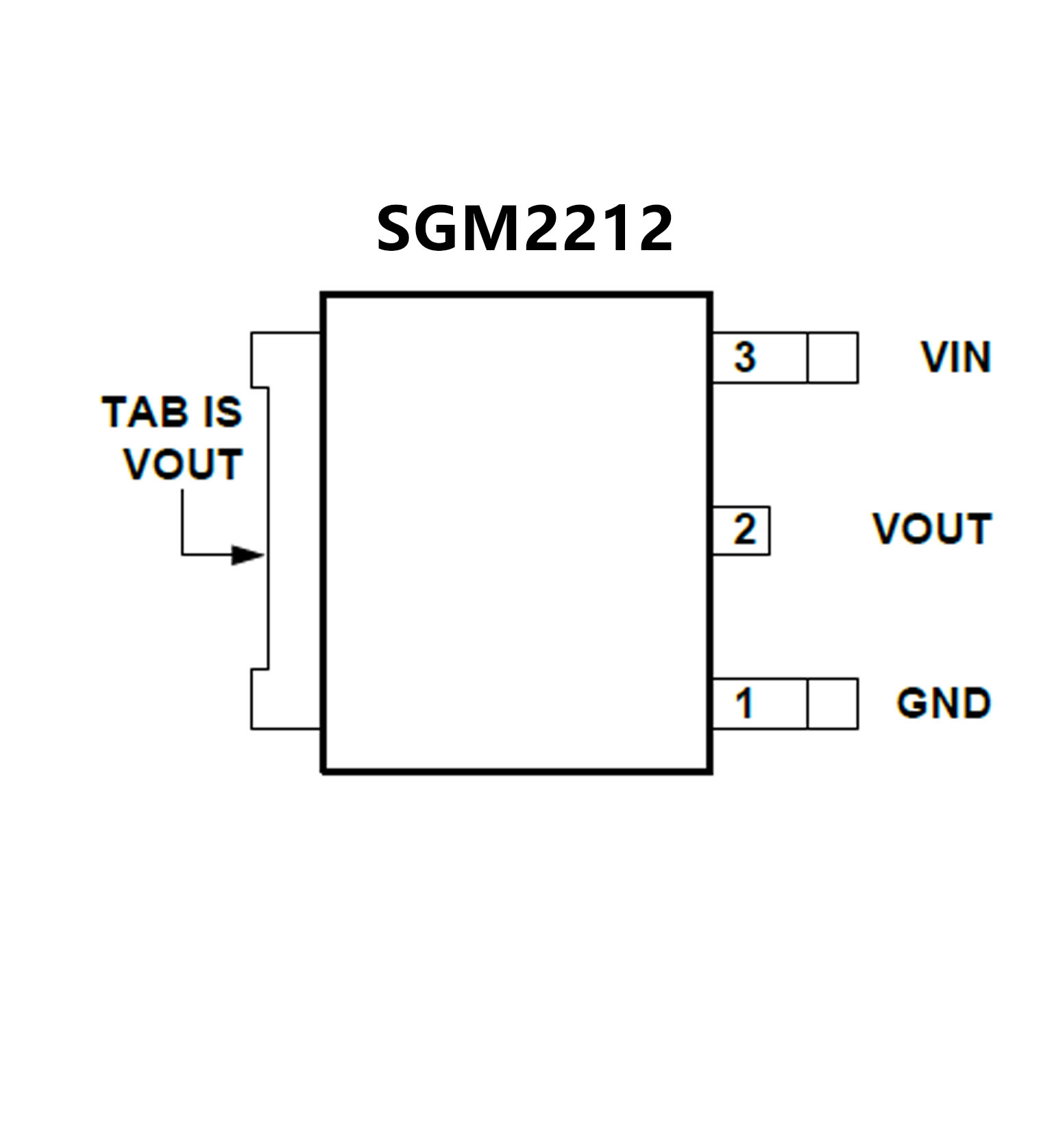

PIN CONFIGUTION
优势替代
FEATURES
• Low Dropout Voltage
• Load regulation:0.5% Max
• Optimized for Low Voltage
• On-chip thermal limiting.
• Maximum Input Voltage : 30V
• Adjustable Output Voltage or Fixed
1.2V, 1.8V,
2.5V, 3.3V, 5V
• Standard SOT-223,TO-252 ,SOT89 Packages

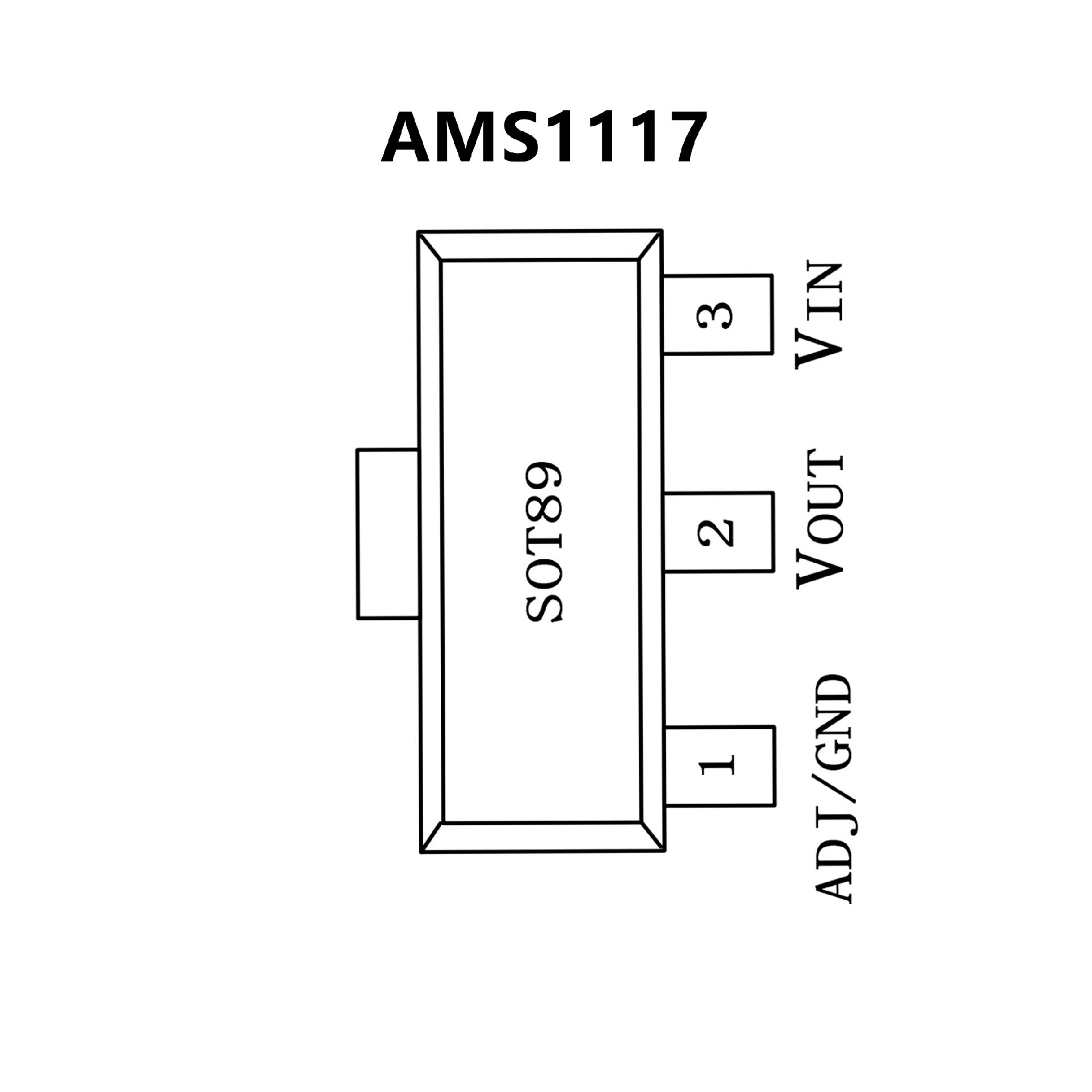

PIN CONFIGUTION
