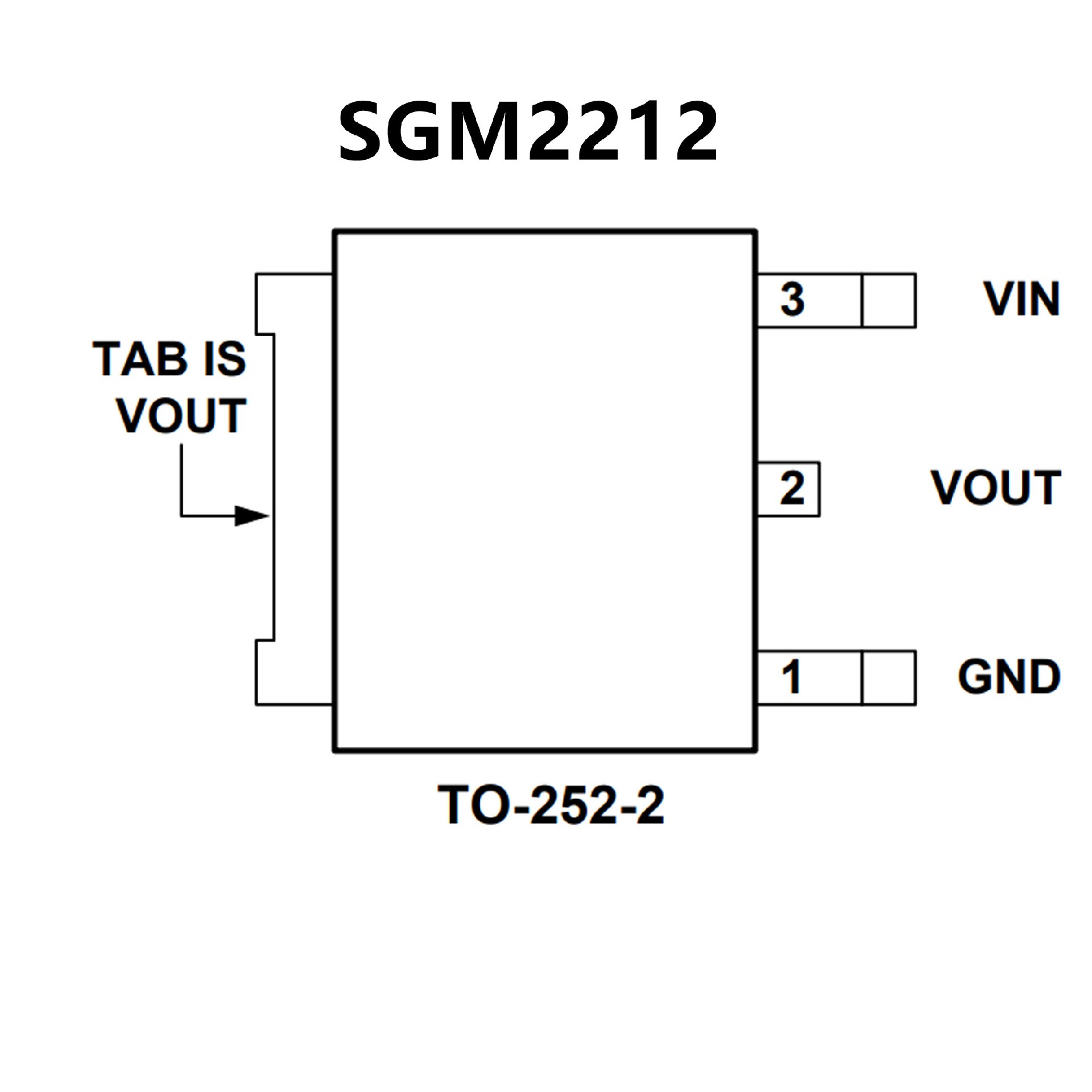

SGM2212.pdf• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

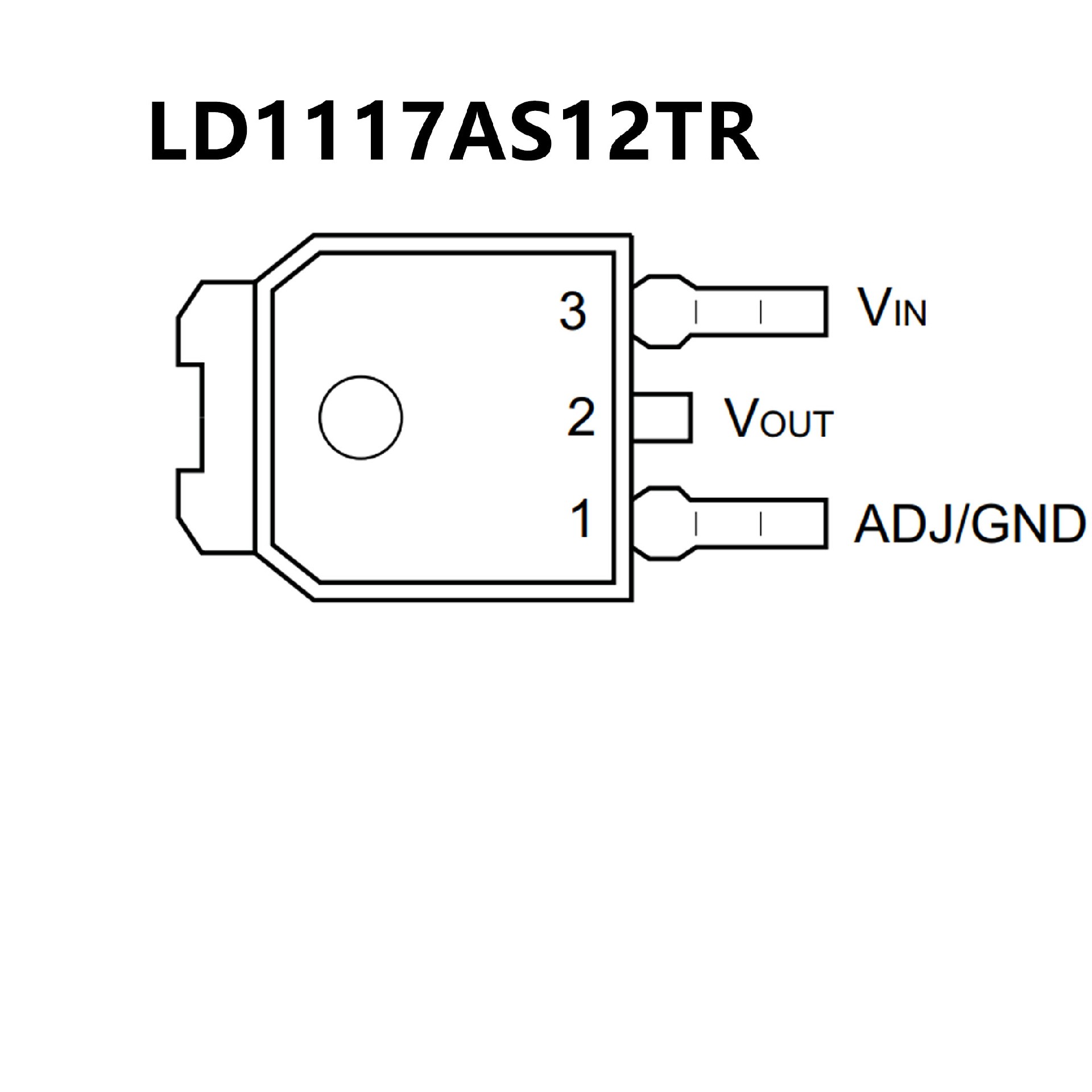

• Low dropout voltage:
1.15 V typ. @ IOUT = 1 A, 25 °C
• Very low quiescent current:
5 mA typ. @ 25 °C
• Output current up to 1 A
• Fixed output voltage of:
1.2 V, 1.8 V, 3.3 V
• Adjustable version availability
(VREF = 1.25 V)
• Internal current and thermal limit
• Only 10 µF for stability
