Low Noise, Low Drop, High Voltage, 800mA LD0,Replace LM1117
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
• Input Voltage Range: 2.7V to 20V
• Available in 1.8V, 2.5V, 2.8V, 3.3V, 5V and
Adjustable Versions
• Current Limiting and Thermal Protection
• Output Current: 800mA
• Line Regulation: 0.03% (TYP)
• Load Regulation: 0.1% (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3 and TDFN-3×3-8L Packages

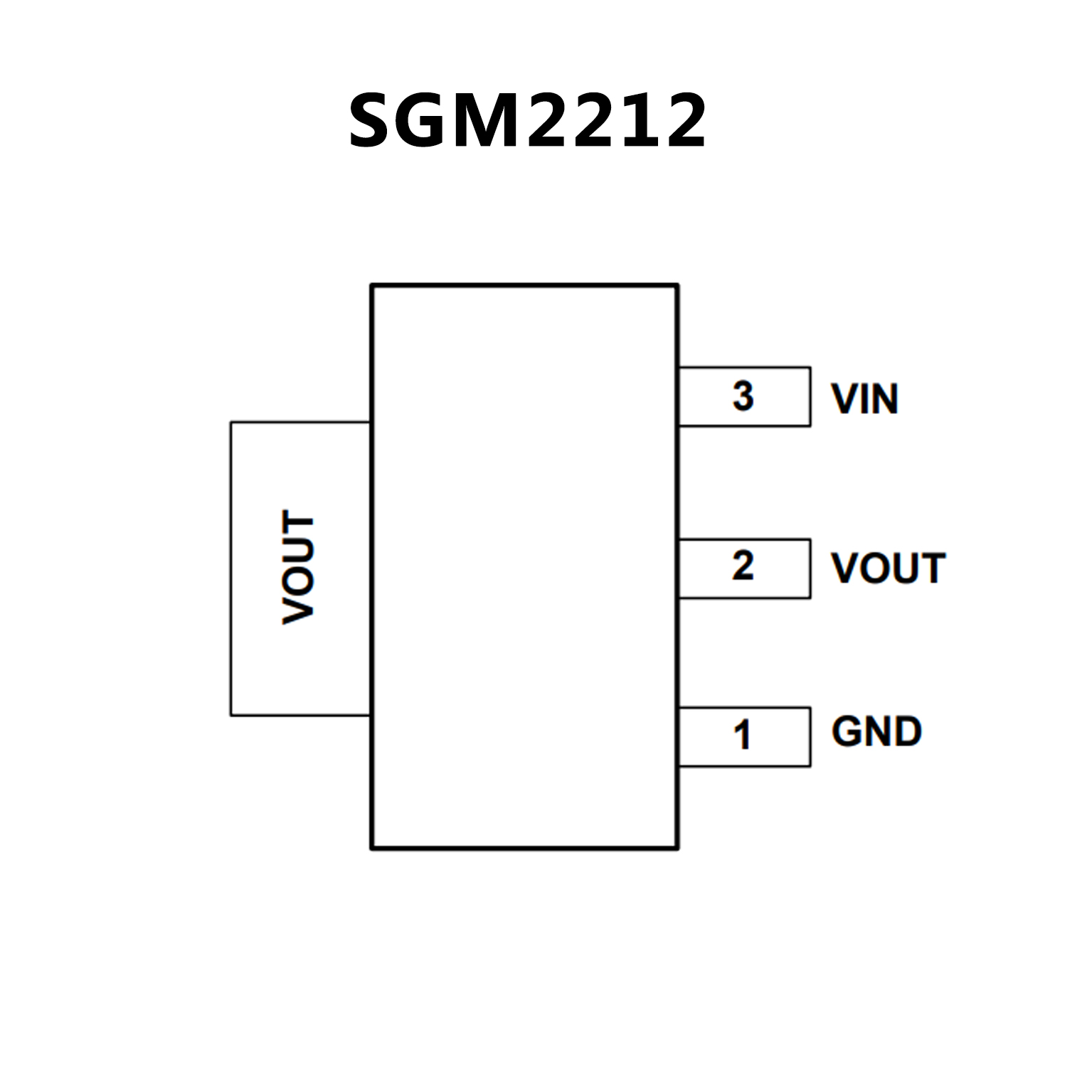

PIN CONFIGUTION
优势替代
FEATURES
• Output Current up to 1 A
• Low Dropout Voltage (1.2V at 1A Output current)
• Line Regulation typically at 0.1% max.
• Load Regulation typically at 0.2% max.
• Internal Current and Terminal Protection
• Maximum Input Voltage 20V
• Surface Mount Package SOT-223
• 100% Thermal Limit Burn-In
• Moisture Sensitivity Level 3

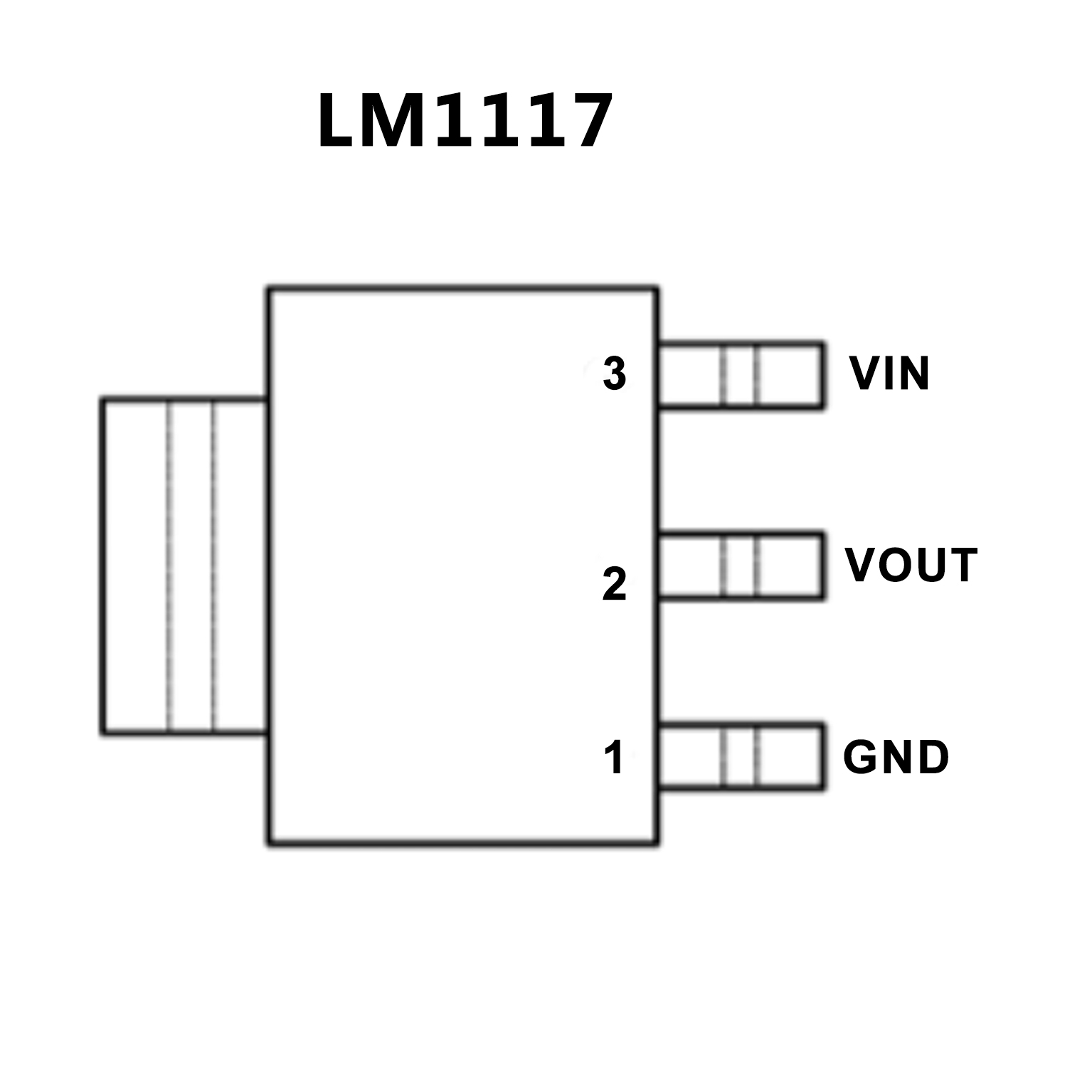

PIN CONFIGUTION
