800mA, Low Noise, Low Quiescent Current,High PSRR, Low Dropout Linear Regulator,SGM2212 Replace NX1117C.
SGM2212-3.3XKC3G
SGM2212-3.3XKC3G.pdf
SGM2212-3.3XKC3G.pdfFEATURES
• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

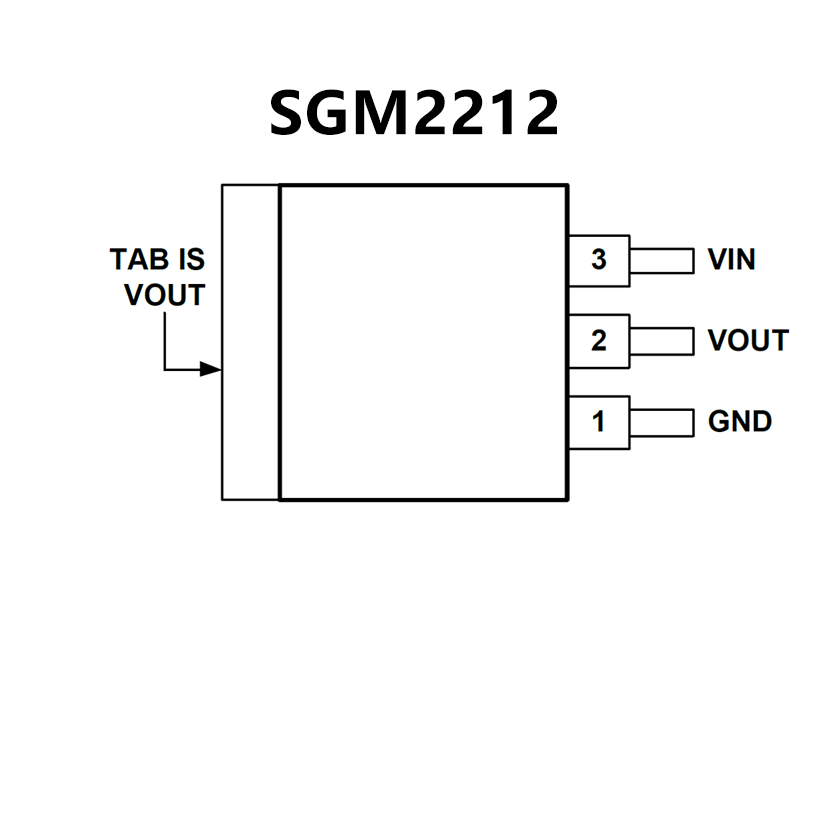

PIN CONFIGUTION
优势替代
FEATURES
• Maximum output current of 1 A
• SOA control
• Wide operation range to 20 V input
• Thermal shutdown
• Output voltage accuracy of
• 1 % or 1.25 %
• No minimum load requirements for fixed
output voltage versions
• Output current limiting
• Temperature range
-40 ℃ to 125℃

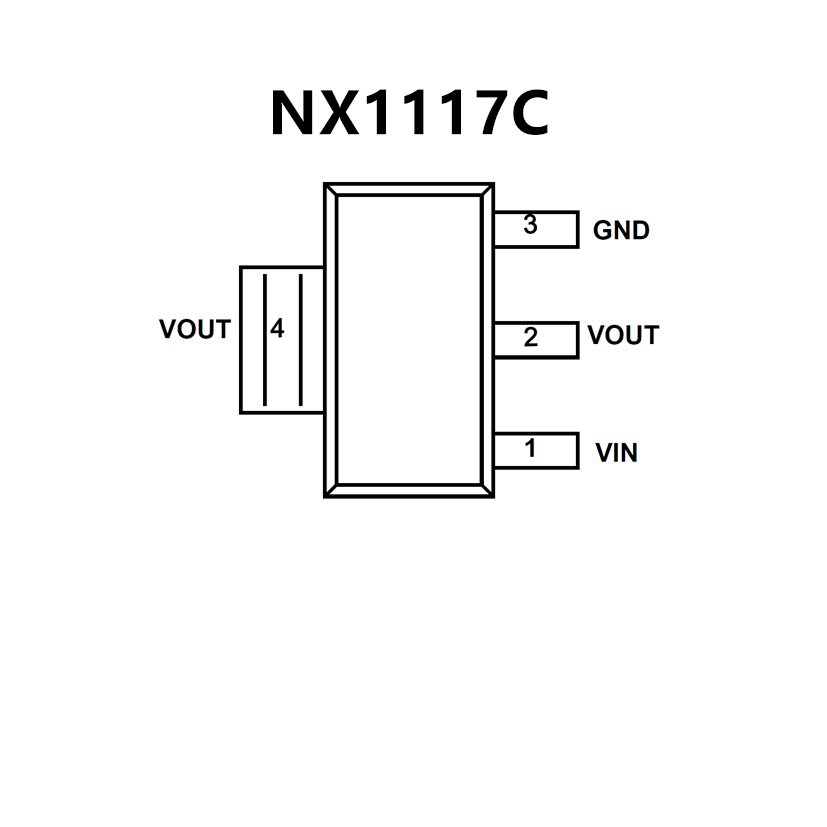

PIN CONFIGUTION
