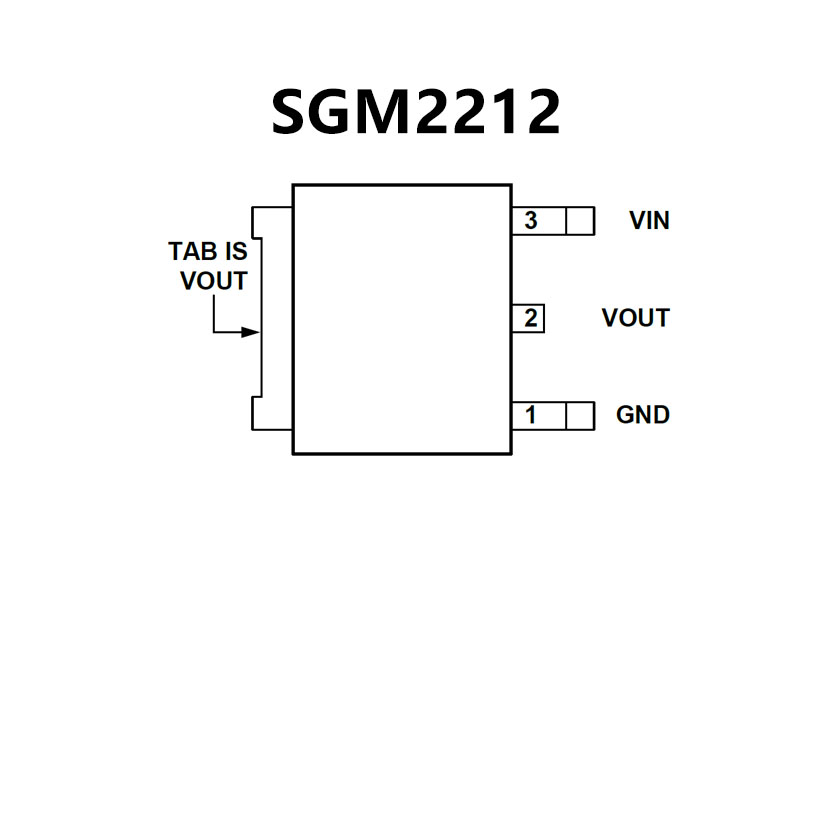

SGM2212-3.3.pdf• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

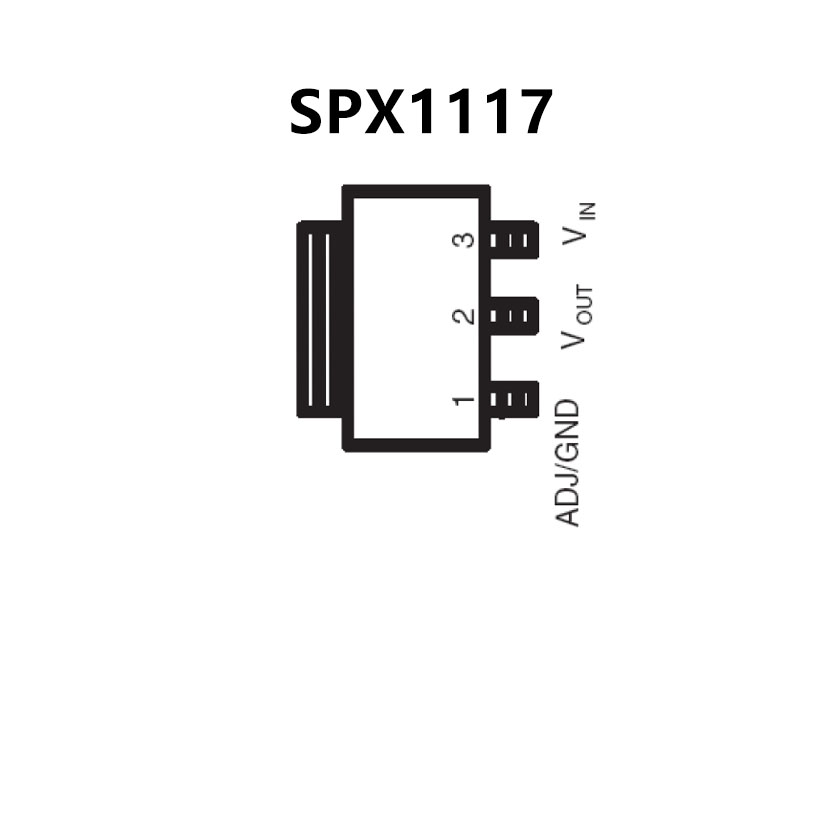

• Guaranteed 800mA Output Current
• Guaranteed 1A Peak Current
• Three Terminal Adjustable or
Fixed1.5V, 1.8V, 2.5V, 3.3V and 5V
• Low Quiescent Current
• Low Dropout Voltage of 1.1V at 800mA
• 0.1% Line and 0.2% Load Regulation
• Stable with 2.2μF Ceramic Capacitor
• Overcurrent and Thermal Protection
• Lead Free, RoHS Compliant SOT223Package
