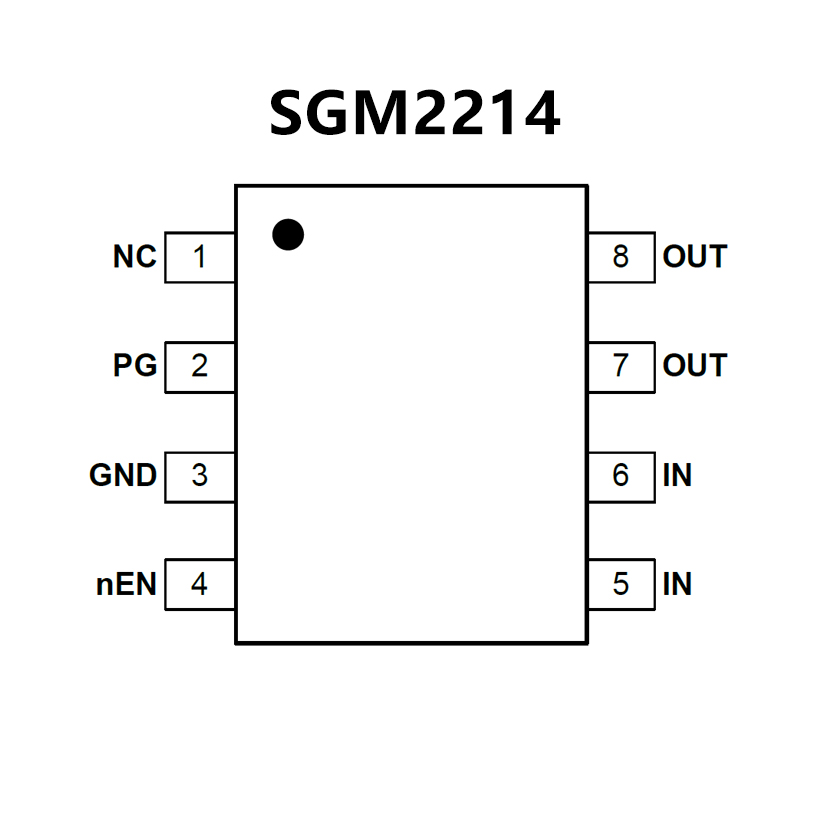

SGM2214-3.3XS8G.pdf• lnput Voltage Range: 2.7V to 16V
• Output Voltage Accuracy: 士1% at +25℃
• Low Dropout Voltage: 235mV (TYP) at 300mA
• Low Quiescent Current: 40uA(TYP)
Available in Multiple Output Voltage Versions
• Fixed Outputs of 1.5V,1.8V,2.5V,2.7V,2.8V,3.0V,
3.3V and 5.ov
• Adjustable Output Voltage Range: 1
• 2V to 12V. Power Supply Rejection Ratio:
85dB (TYP) at 1kHzOpen-Drain Power-Good Function
• Thermal Shutdown Protection
-40℃ to +125℃ Operating Temperature
• Range Available in a Green soIC-8 Package

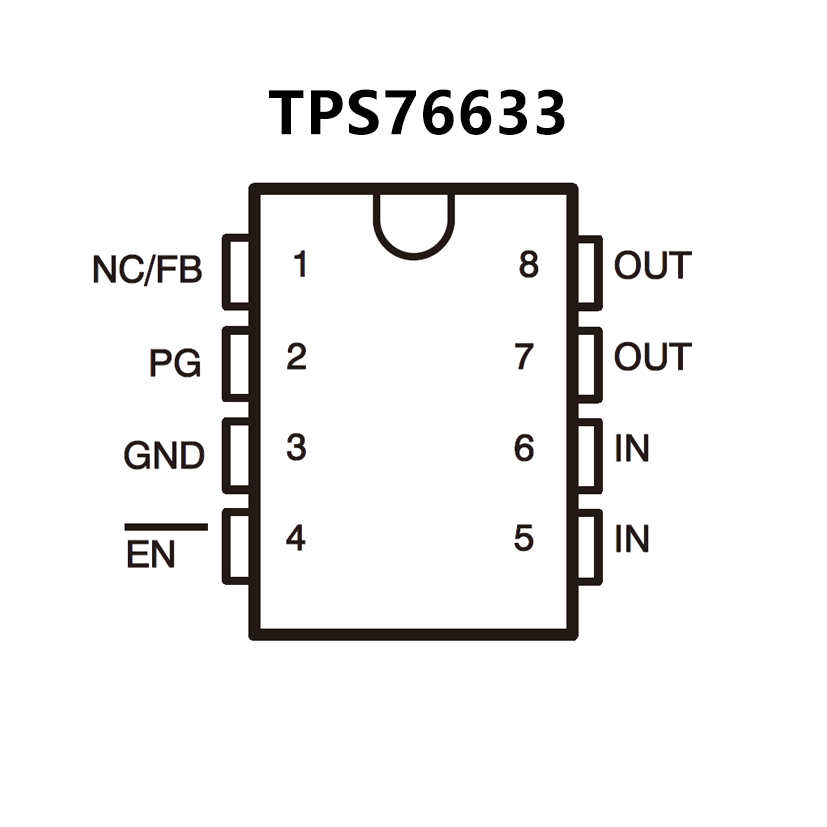

• 250-mA Low Dropout Voltage Regulator
• Available in 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V,
3.0 V, 3.3 V, 5.0 V Fixed Output and
Adjustable Versions
• Dropout Voltage to 140 mV (Typ) at 250 mA
(TPS76650)
• Ultralow 35-µA Typical Quiescent Current
• 3% Tolerance Over Specified Conditions
for Fixed Output Versions
• Open-Drain Power Good
• 8-Pin SOIC Package
• Thermal Shutdown Protection
