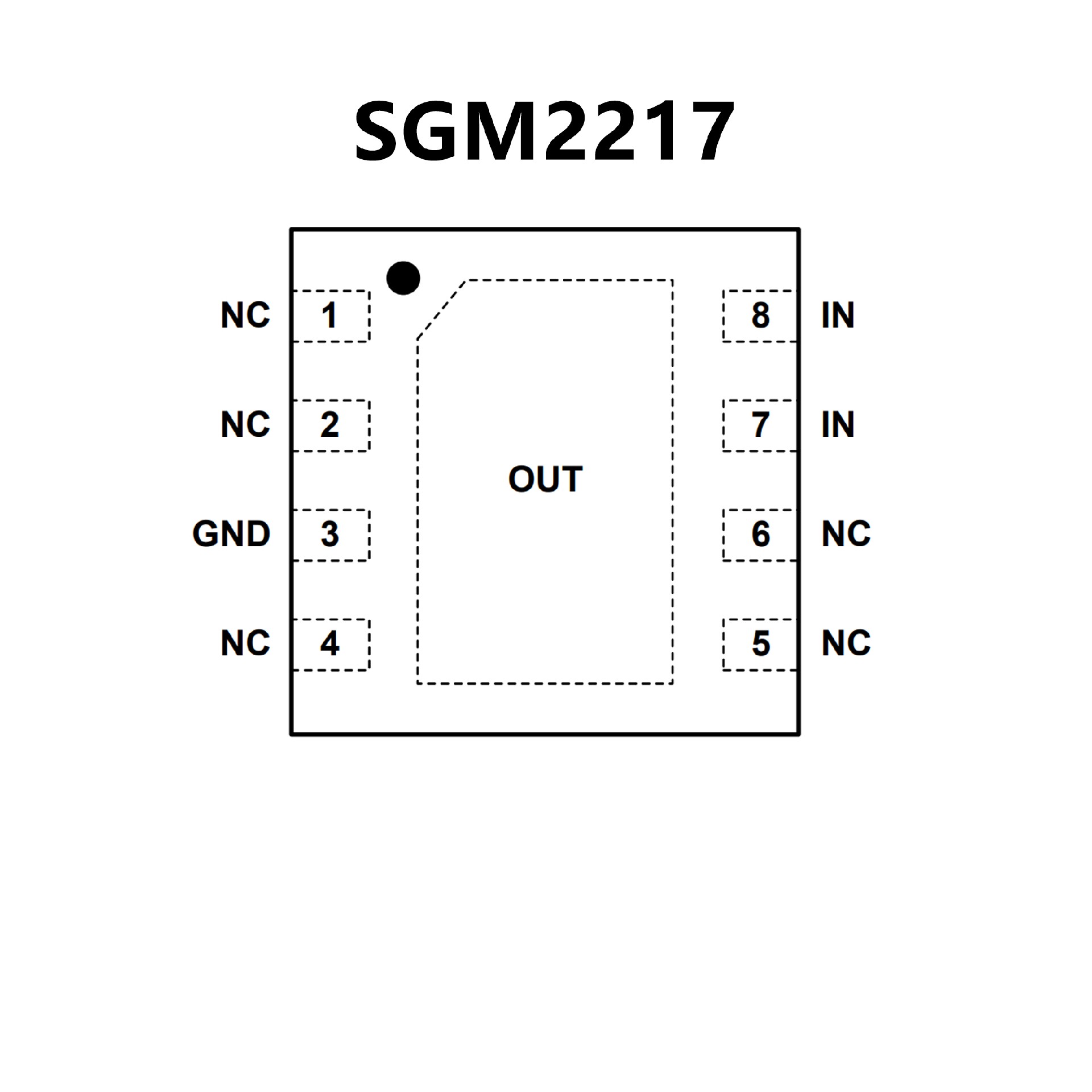

SGM2217-3.3.pdf• Wide Input Voltage Range: 2.8V to 30V
• Adjustable Output from 1.25V to 26V
• Fixed Outputs of 1.8V, 2.5V,
2.8V, 3.0V, 3.3V, 5.0Vand 12V
• 1.5A Maximum Output Current
• Low Dropout Voltage: 1.3V (TYP) at 1.5A
• Line Regulation: 0.04% (TYP)
• Load Regulation: 0.04% (TYP)
• Current Limiting and Thermal Protection
• Excellent Load and Line Transient Responses
• Stable with Small Case Size Ceramic Capacitors
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-263-3A
and TDFN-4×4-8LPackages

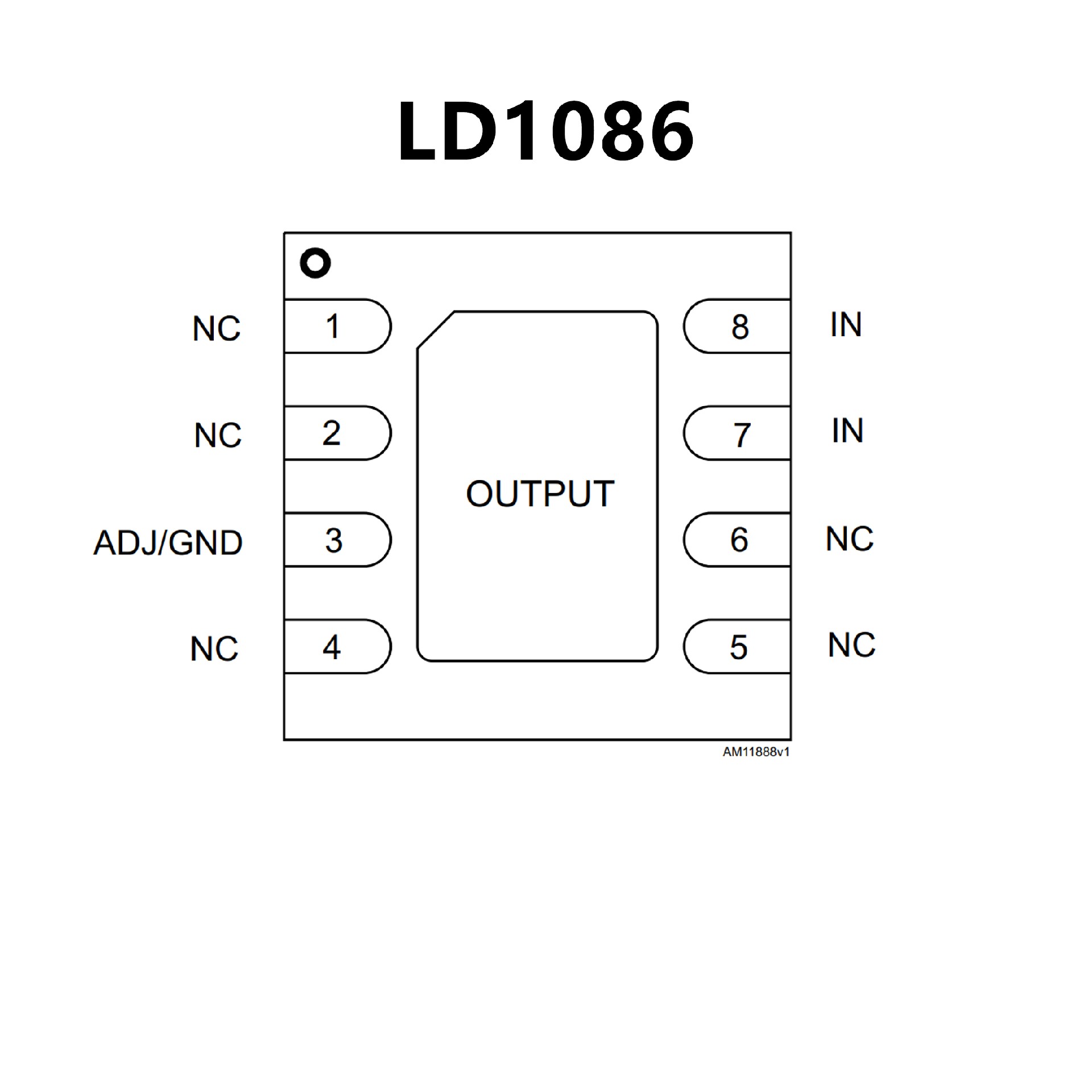

• Typical dropout: 1.3 V at 1.5 A
• Three-terminal adjustable or
fixed output voltage: 1.8 V, 2.5 V,
3.3 V, 5 V, 12 V
• Automotive grade
(adjustable VOUT in TO-220 and DPAK packages only)
• Output current guaranteed up to 1.5 A
• Output tolerance: ± 1% at 25 °C and ± 2%
in full temperature range
• Internal power and thermal limit
• Wide operating temperature range - 40 °C to 125 °C
• Package available: TO-220, D²PAK,
D²PAK/A, DPAK and DFN8 (4x4)
• Pinout compatibility with standard
adjustable voltage regulators
