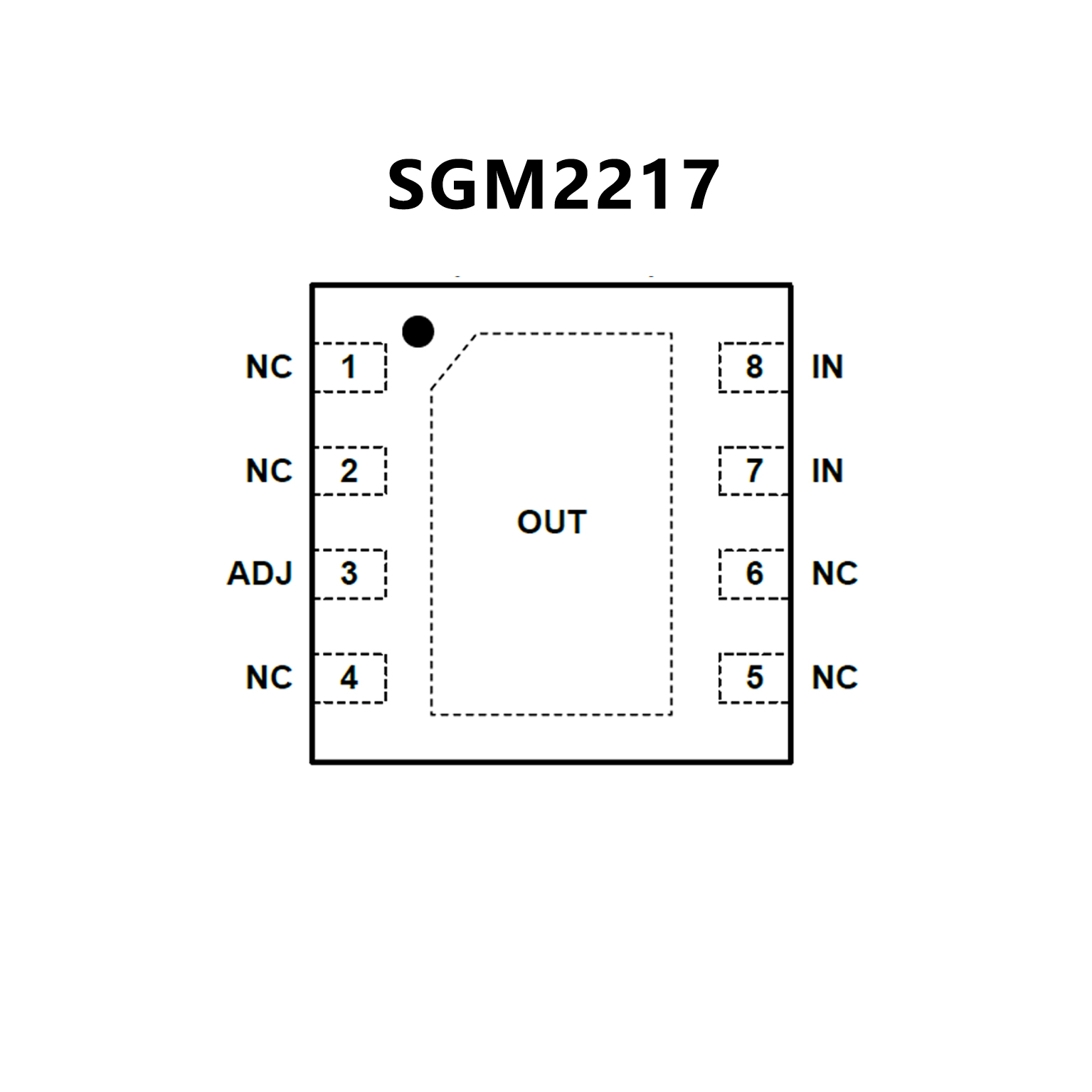

SGM2217.pdf• Wide Input Voltage Range: 2.8V to 30V
• Adjustable Output Voltage Range: 1.25V to 26V
• Fixed Output Voltages:
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V and 12V
• Maximum Output Current: 1.5A
• Low Dropout Voltage: 1.3V (TYP) at 1.5A
• Line Regulation: 0.04% (TYP)
• Load Regulation: 0.04% (TYP)
• Current Limiting and Thermal Protection
• Output Voltage is Stable with Ceramic Capacitor
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-263-3A and TDFN-4×4-8L Packages

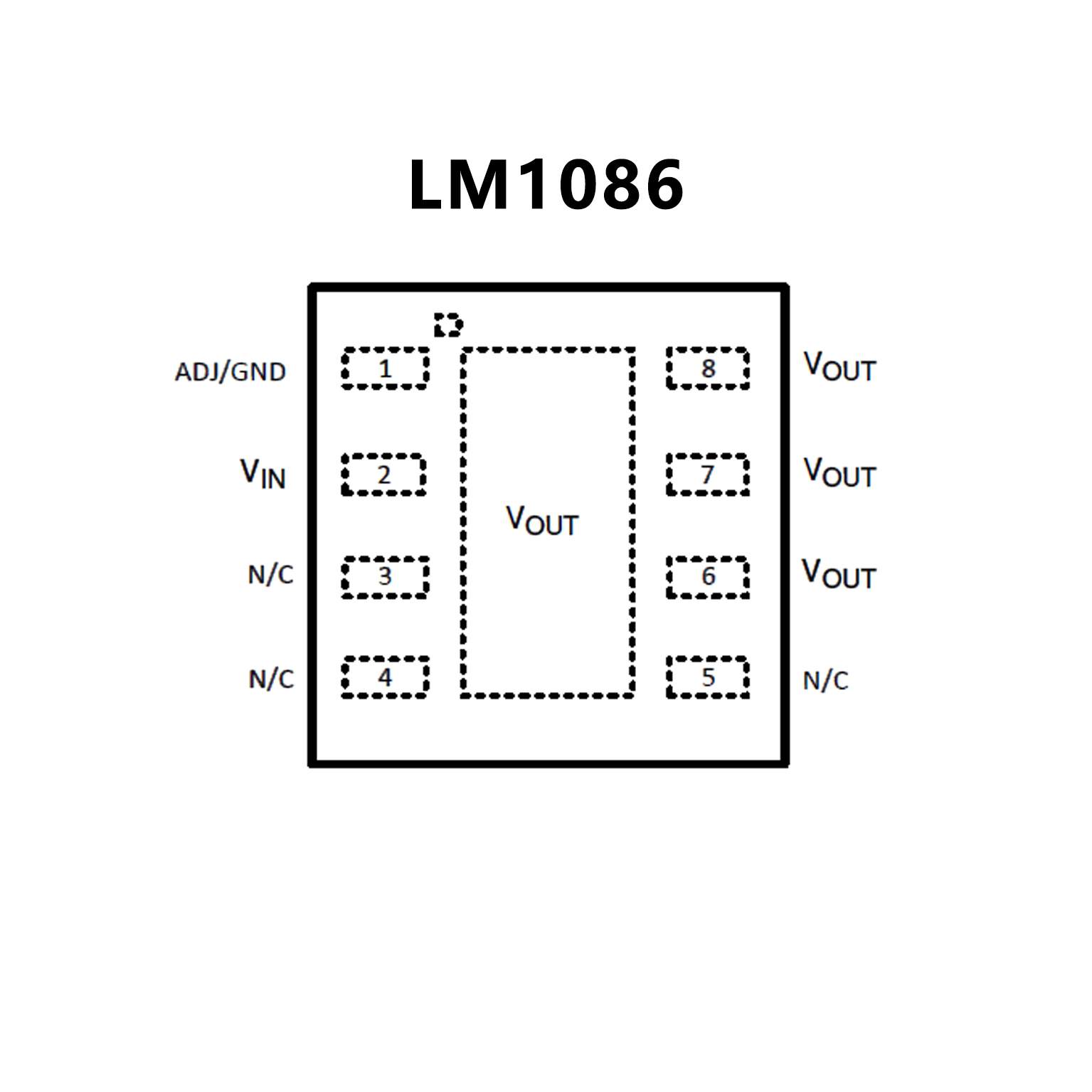

• Available in Fixed 1.8-V, 2.5-V, 3.3-V, 5-V
• Available in Adjustable Version
• Current Limiting and Thermal Protection
• 2% Output Accuracy
• Output Current 1.5 A
• Line Regulation 0.015% (Typical)
• Load Regulation 0.1% (Typical)
• Maximum Input Voltage up to 29V
• Minimum Adjustable Output Voltage Down to 1.25V
• Stable with Ceramic Output Capacitor with ESR
• Temperature Range : -40°C to 125°C
