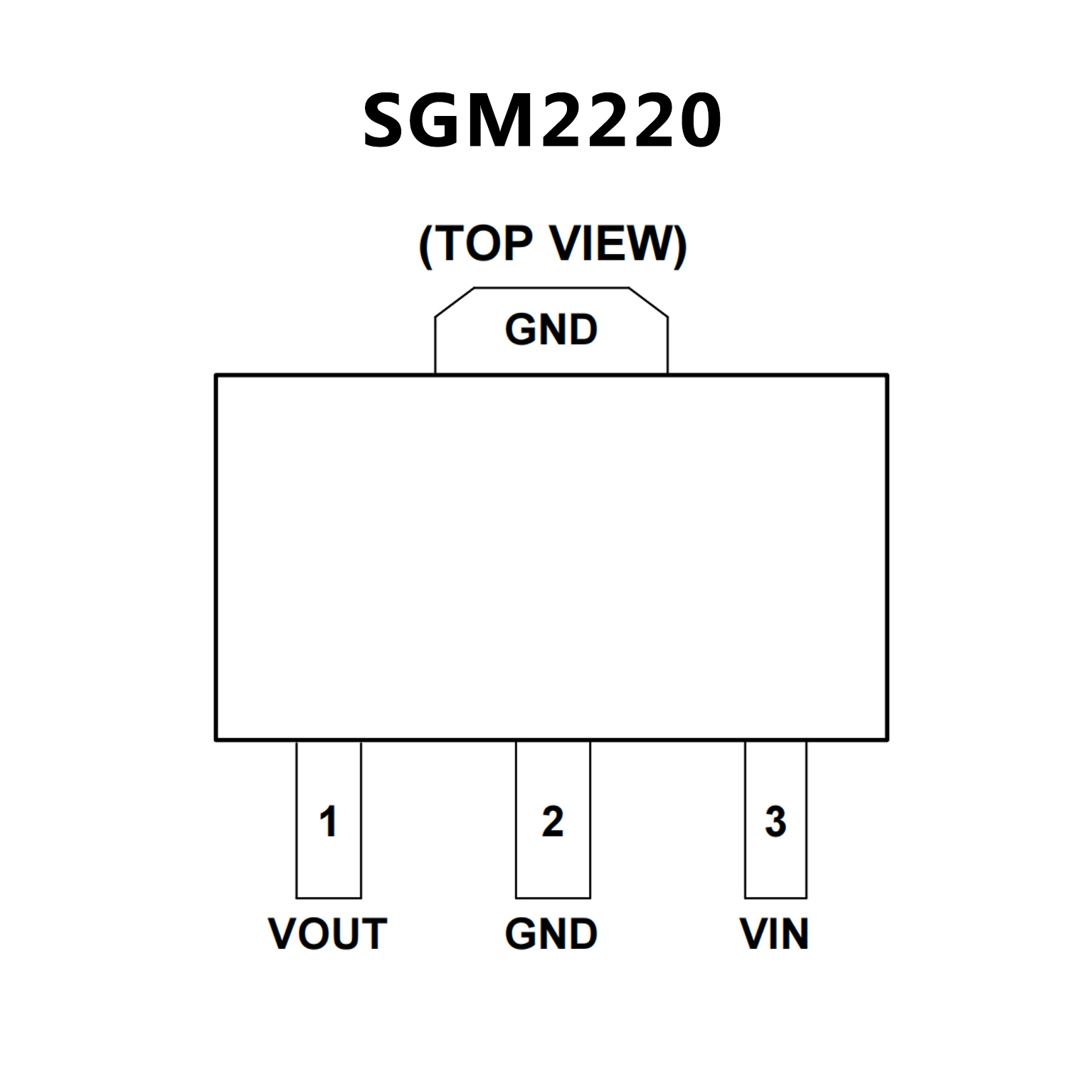

SGM2220.pdf• Operating Input Voltage Range: 2.2V to 13V
• Fixed Outputs of 1.8V, 2.8V, 3.0V, 3.3V, 3.9V,
4.0V, 4.1V, 4.2V and 5.0V
• Low Power Consumption: 1μA (TYP) at No Load
• Low Dropout Voltage:
330mV (TYP) at 300mA, VOUT = 5.0V
• Current Limiting and Thermal Protection
• Stable with Small Case Size Ceramic Capacitors
• UVLO with Hysteresis
• Reverse Current Protection when VOUT > VIN
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5 and SOT-89-3 Packages
• Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
• Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V : 1.3V ~ 6.0V (0.1V increments)
±1% (VOUT(T)>2.0V)

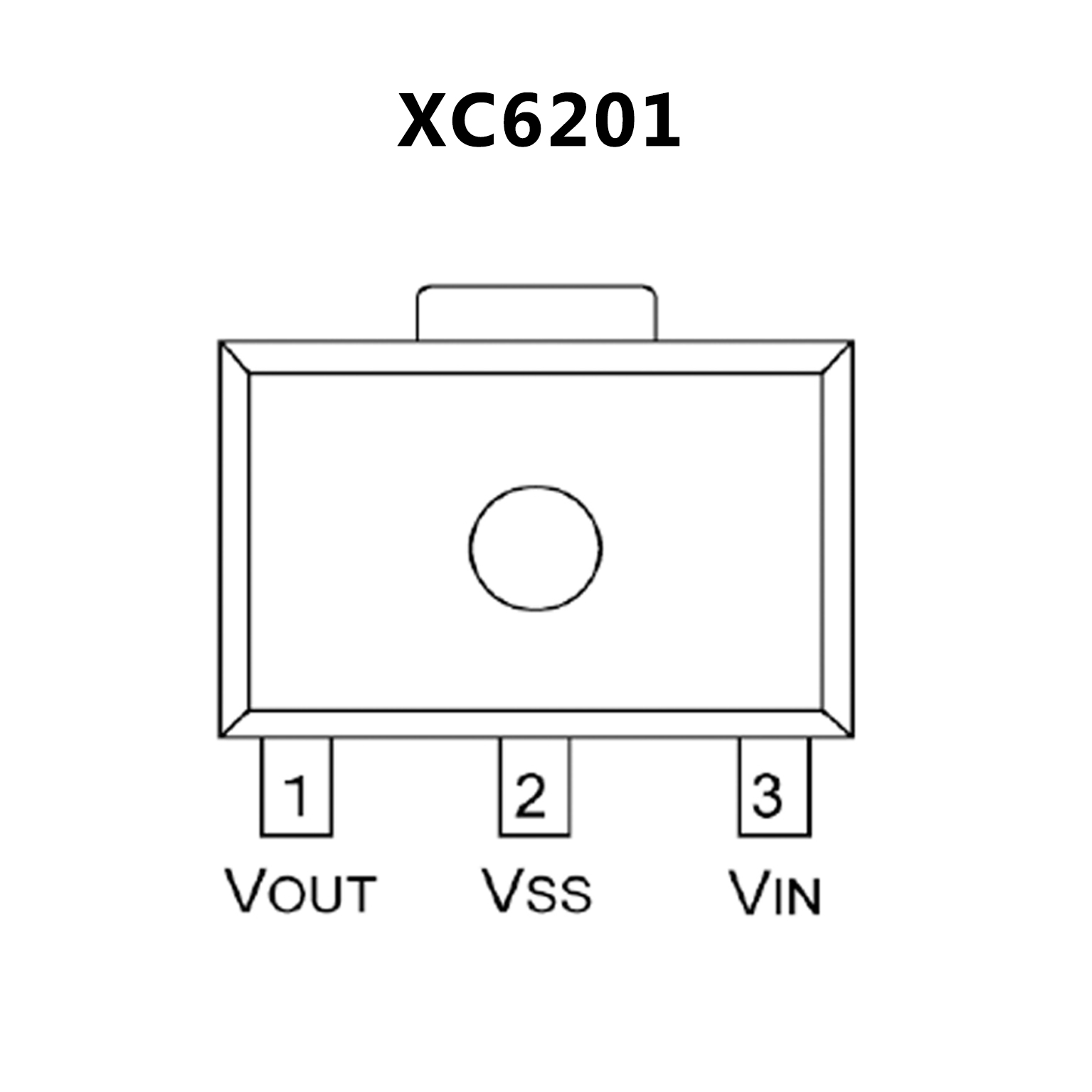

Low Power Consumption±2% : 2.0μA (TYP.)
• Operating Ambient Temperature
-40℃ ~ 85℃ : SOT-25, SOT-89 USP-6B
• Environmentally Friendly EU RoHS Compliant,
Pb Free Tantalum or Ceramic Capacitor compatible
