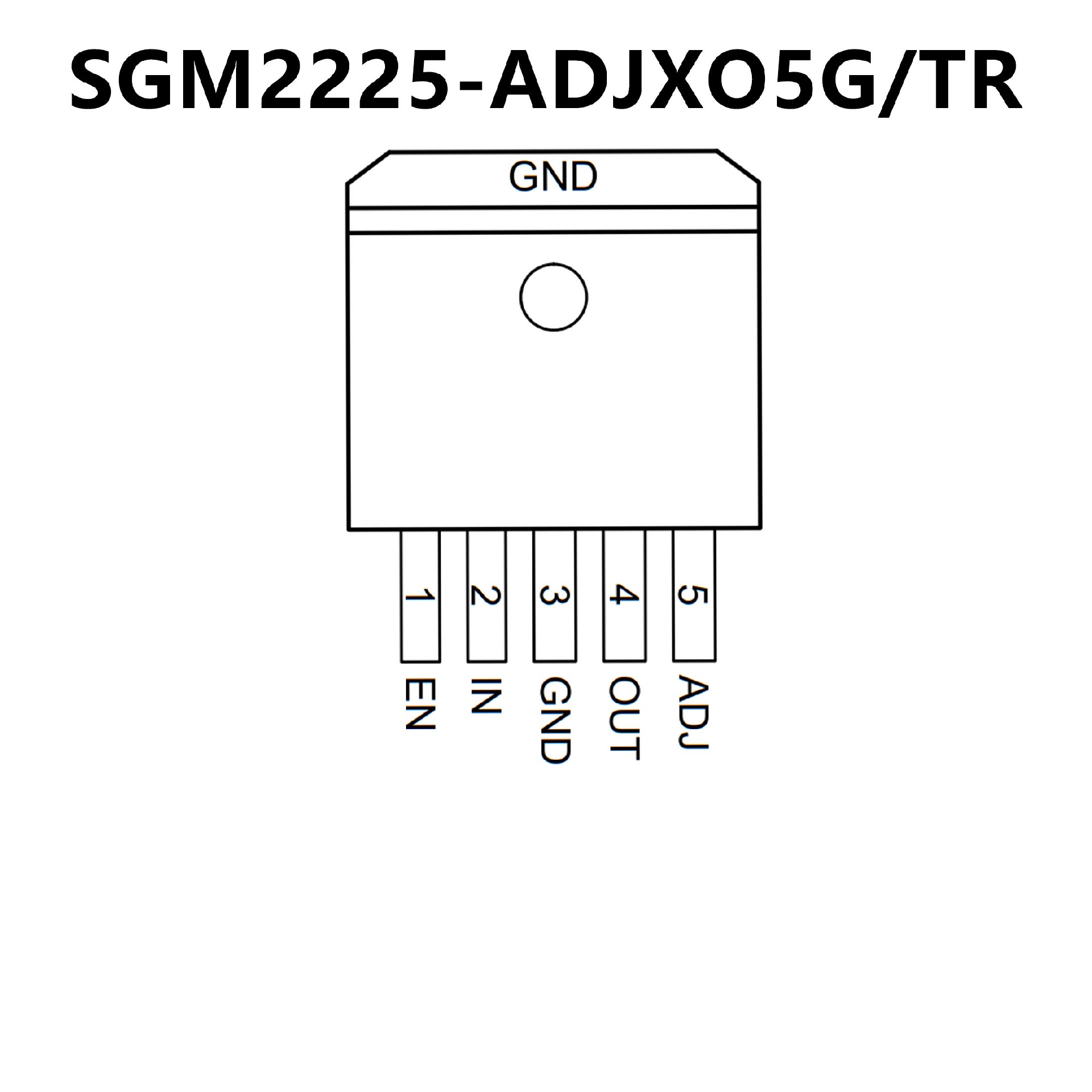

SGM2225-ADJXO5G.pdf• Wide Operating Input Voltage Range: 3.6V to 36V
• Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
• Adjustable Output from 1.8V to 15V
• Output Voltage Accuracy: ±1.5% at +25℃
• Low Dropout Voltage: 450mV (TYP) at 800mA
• Current Limiting and Thermal Protection
• Excellent Load and Line Transient Responses
• With Output Automatic Discharge
• No-Load Stability
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

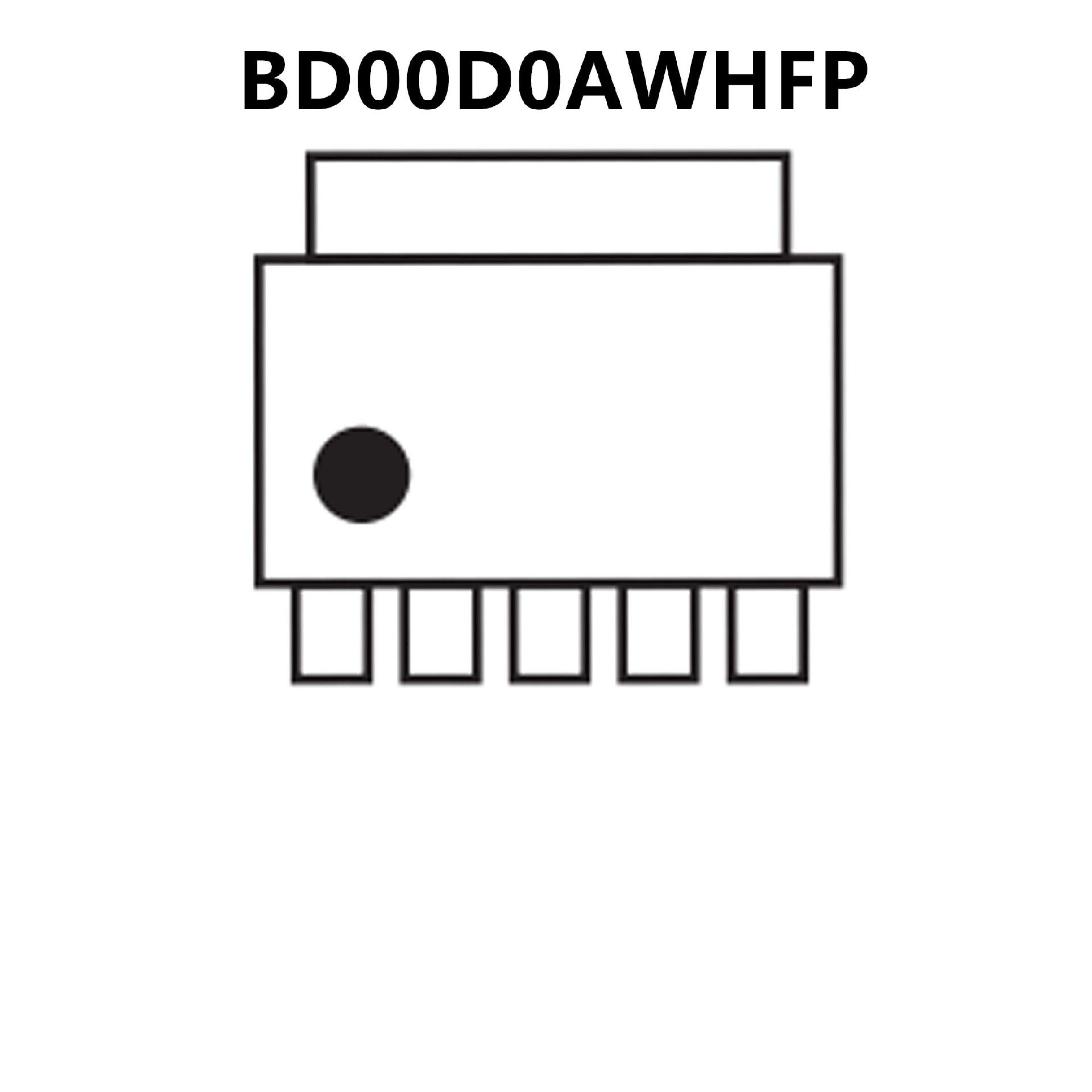

• Output Current : 2A
• High Output Voltage Precision : ±1%
• Low saturation with PDMOS output
• Built-in over-current protection circuit that
prevents the destruction of the IC due
to output short circuits
• Built-in thermal shutdown circuit
for protecting the IC from thermal
damage due to overloading
• Low ESR Capacitor
• HRP5 packaging
