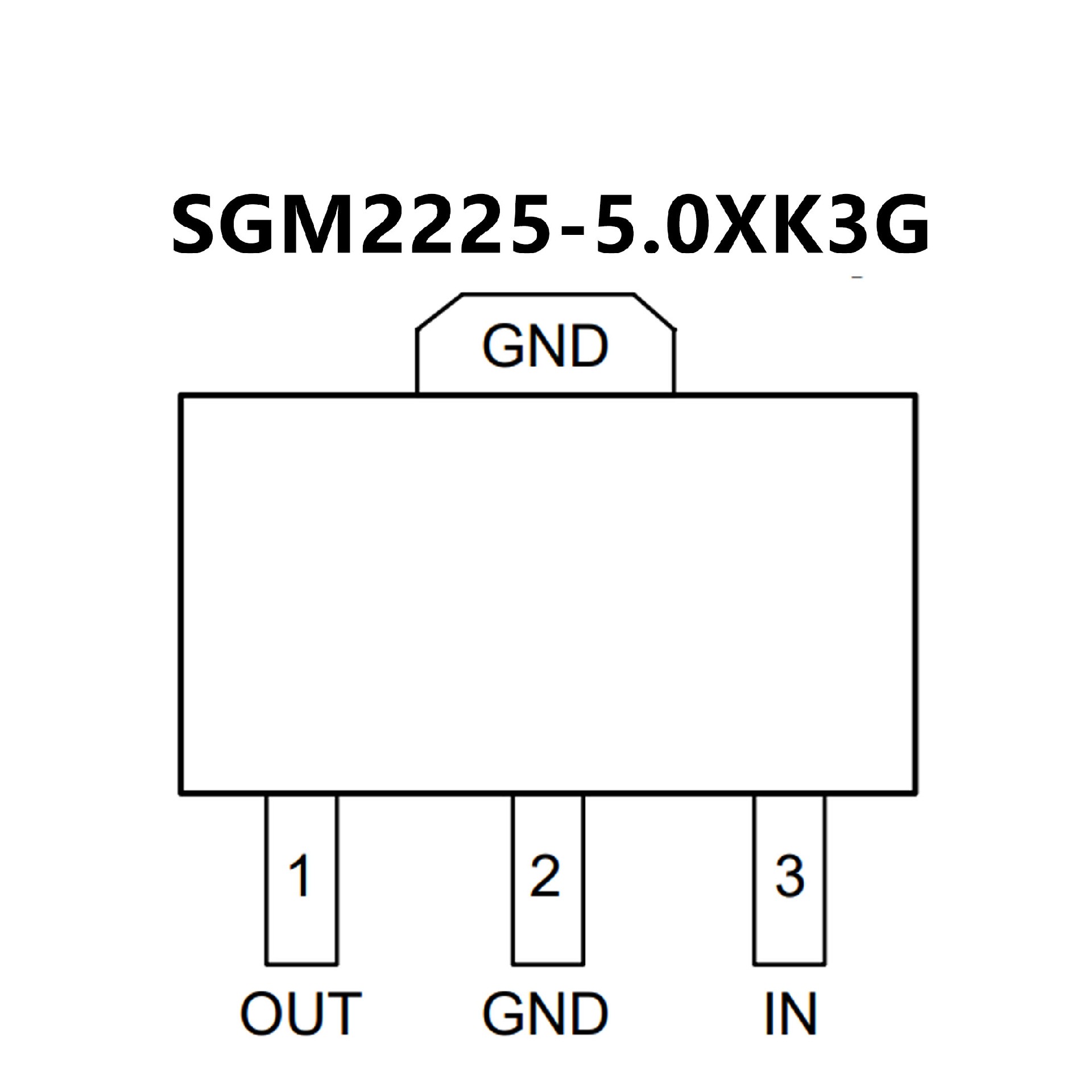

SGM2225.pdf• Wide Input Voltage Range: 3.6V to 36V
• Adjustable Output Voltage Range: 1.8V to 15V
• Output Voltage Accuracy: ±1.5% at +25℃
• Low Dropout Voltage: 450mV (TYP) at Full Load
• Extremely Tight Load and Line Regulations
• Fast Load Transient
• Low Output Voltage Temperature Coefficient
• Output Short-Circuit to GND Protection
• Current and Thermal Limiting
• No-Load Stability
• -40℃ to +125℃ Operating Temperature Range
• Thermally-Efficient Surface-Mount Package
• Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

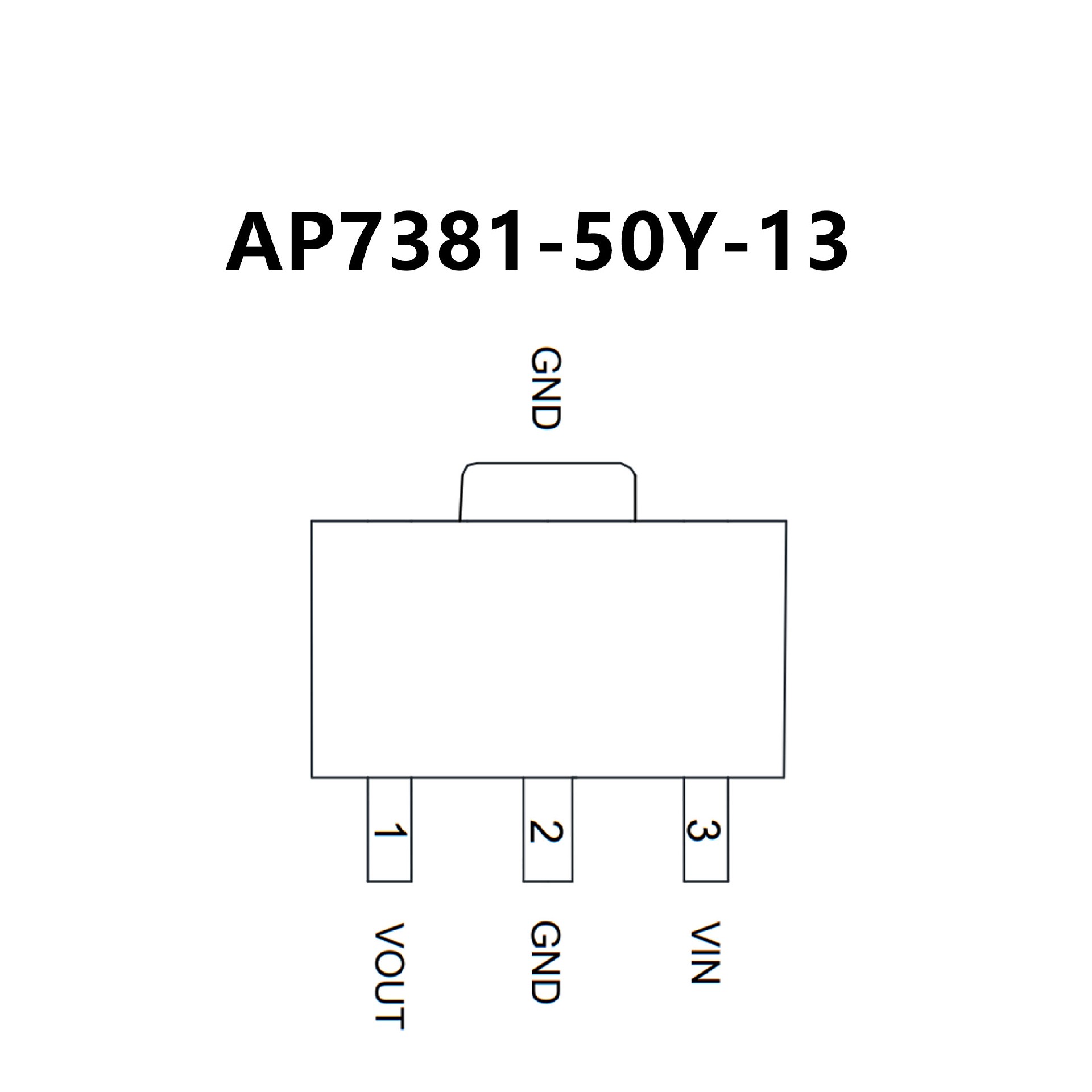

• Wide Input Voltage Range: Up to 40V
• Low Dropout Voltage: VDROP = 1000mV
@IOUT = 100mA@VOUT= 3.3V
• Low Ground Current
• High Output Voltage Accuracy
• Compatible with Low ESR Ceramic Capacitor
• Excellent Line/Load Regulation
• Thermal Shutdown Function
• Short Current Protection Function
• Totally Lead-Free & Fully RoHS Compliant
(Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device
(Note 3)
