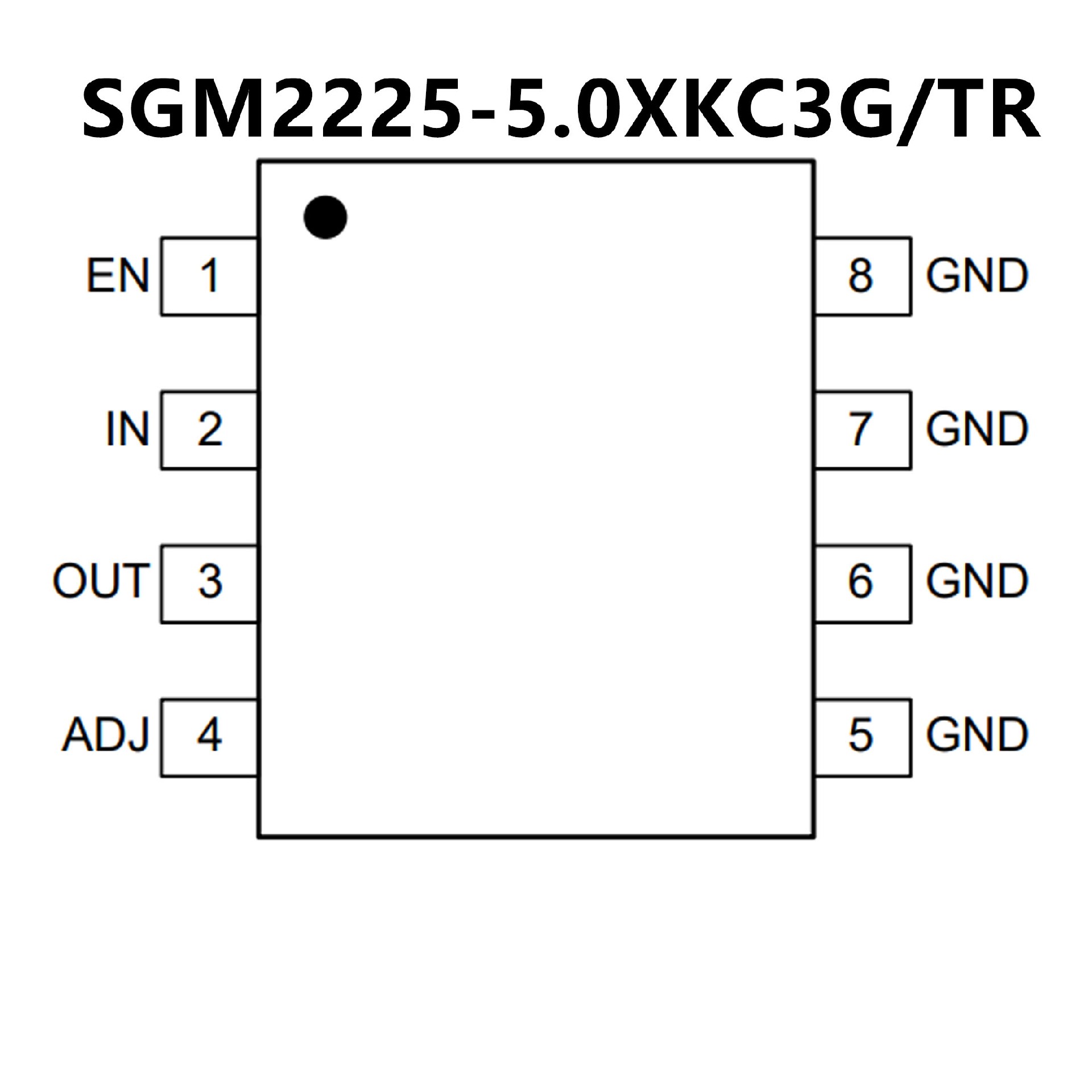

SGM2225-5.0.pdf• Wide Operating Input Voltage Range: 3.6V to 36V
• Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
• Adjustable Output from 1.8V to 15V
• Output Voltage Accuracy: ±1.5% at +25℃
• Low Dropout Voltage: 450mV (TYP) at 800mA
• Current Limiting and Thermal Protection
• Excellent Load and Line Transient Responses
• With Output Automatic Discharge
• No-Load Stability
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages
• Qualified for Automotive Applications
• Wide Temperature Range: -40 °C to +150 °C
• Wide Operating Input Range: 3.0 V to 42 V
• Low Quiescent Current: 40 μA (Typ.)
• Output Current: 200 mA
• High Output Voltage Accuracy: ±2 %
• Output Voltage: 3.3 V or 5.0 V (Typ.)
• Enable Input (Only W: Includes Enable Input)
• Over Current Protection (OCP)
• Thermal Shutdown Protection (TSD)
• AEC-Q100 Qualified (Note1)
(Note1:Grade1)
