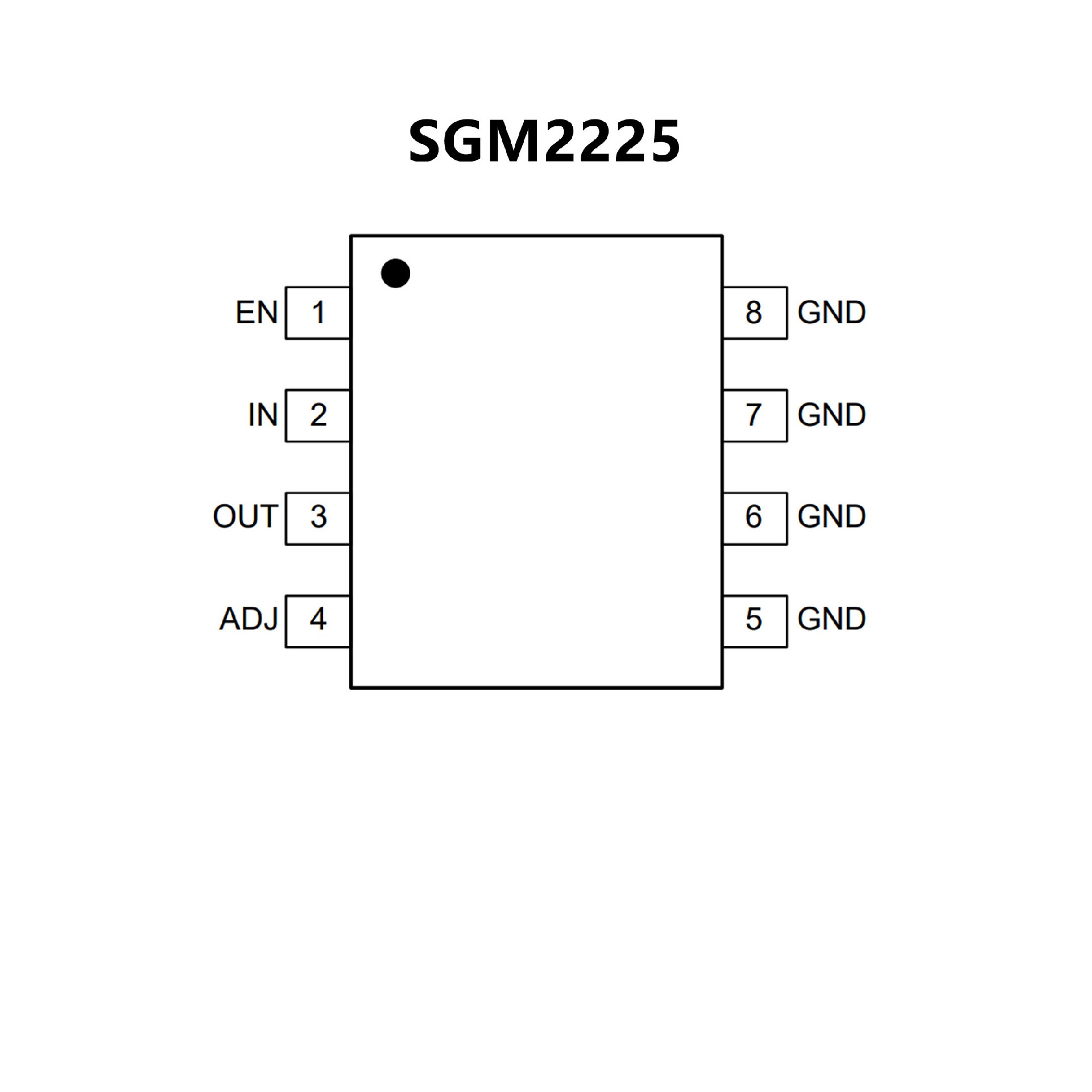

SGM2225.pdf• Wide Operating Input Voltage Range: 3.6V to 36V
• Fixed Outputs of 1.8V, 2.5V, 3.3V, 5.0V and 12V
• Adjustable Output from 1.8V to 15V
• Output Voltage Accuracy: ±1.5% at +25℃
• Low Dropout Voltage: 450mV (TYP) at 800mA
• Current Limiting and Thermal Protection
• Excellent Load and Line Transient Responses
• With Output Automatic Discharge
• No-Load Stability
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-223-3, SOT-89-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

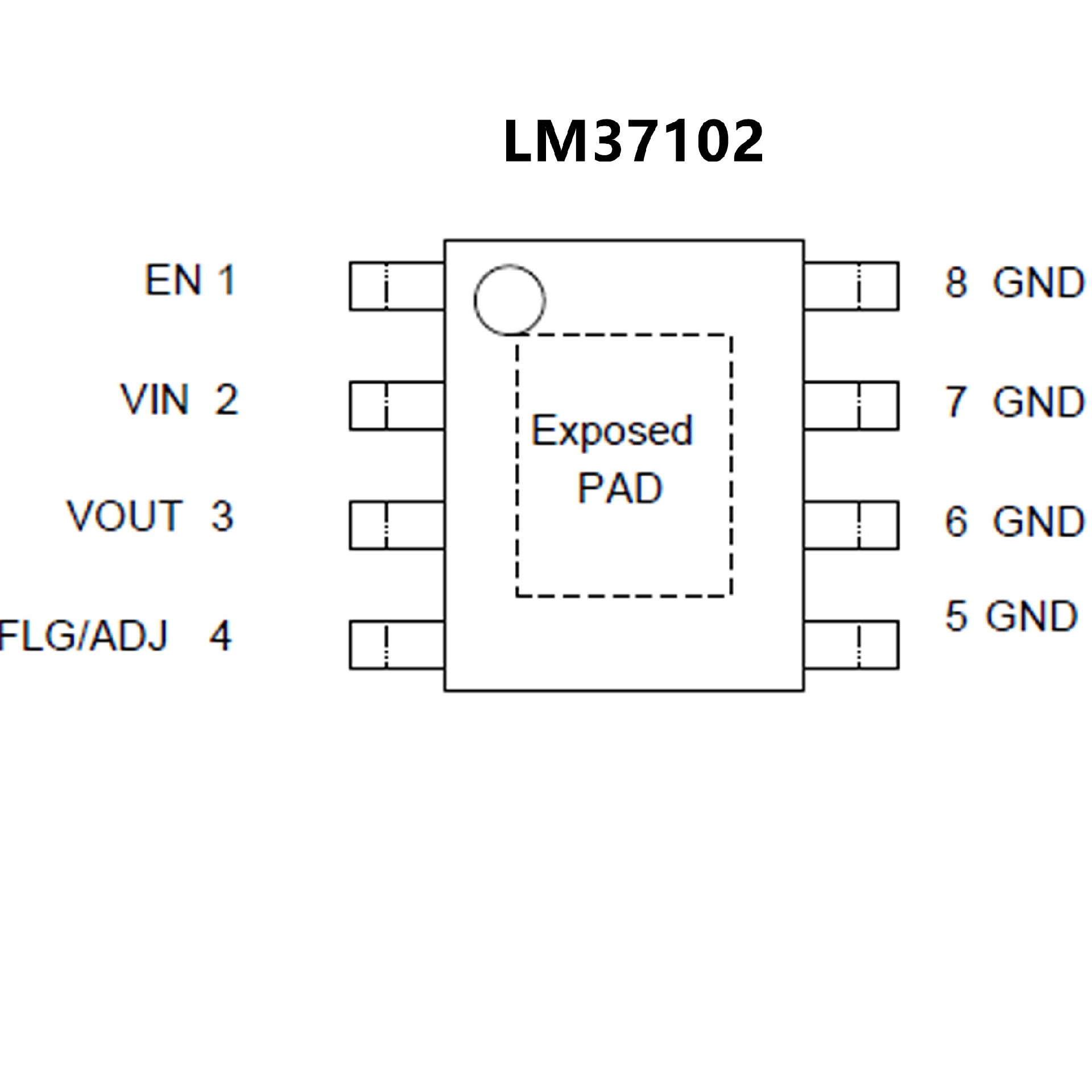

• Fixed and adjustable output voltages to 1.24V
• Stable with MLCC and Ceramic Capacitors
• 500mV typical dropout at 1AIdeal for 3.0V to 2.5V
conversionIdeal for 2.5V to 1.8V or 1.5V conversion
• 1A minimum guaranteed output current
• 1% initial accuracy
• Low ground current
• Current limiting and thermal shutdown
• Reversed-battery protection
• Reversed-leakage protection
• Fast transient response
• Moisture Sensitivity Level 3
