40V, 150mA, Low Quiescent CurrentLinear RegulatorAEC-Q100 Qualified, SGM2236Q Replace MPQ2013A.
FEATURES

 AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1
  TA = -40℃ to +125℃
 Operating Input Voltage Range: 2.5V to 40V
 Enable Pin Accept Voltages Higher than the
  Supply Voltage and up to 40V
 Fixed Output from 1.8V to 12V
 Adjustable Output from 1.215V to 35V
 200mA Output Current
 Output Voltage Accuracy: ±1% at +25℃
 Low Quiescent Current: 3.2μA (TYP)
 Low Dropout Voltage:
  500mV (TYP) at 200mA, VOUT = 5.0V
 Current Limiting and Thermal Protection
 With Output Automatic Discharge
 Stable with Small Case Size Ceramic Capacitors
• -40to +125Operating Temperature Range
 Available in Green TDFN-2×2-6AL and

  TDFN-3×3-8JL Packages

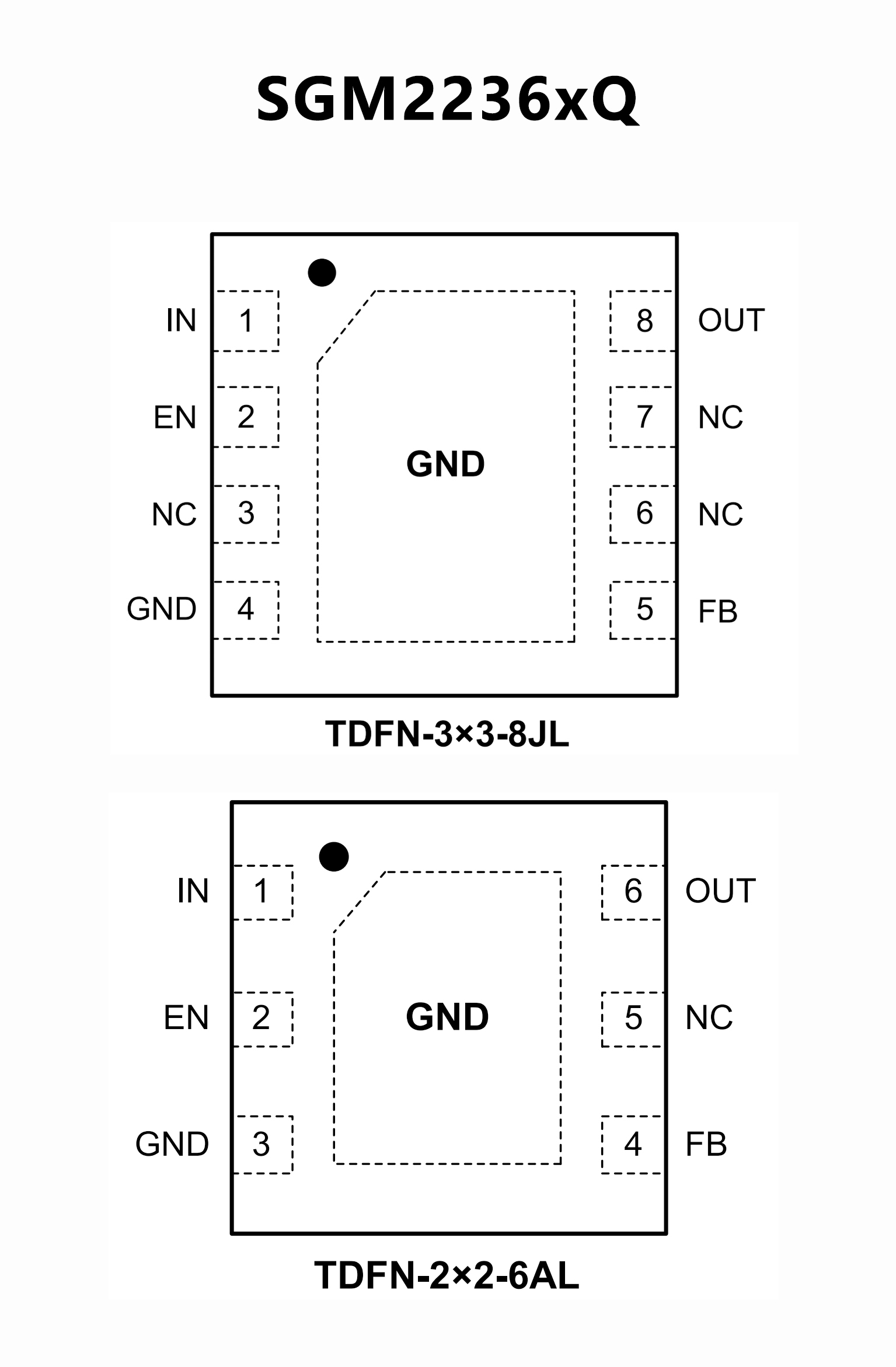

PIN CONFIGUTION
优势替代

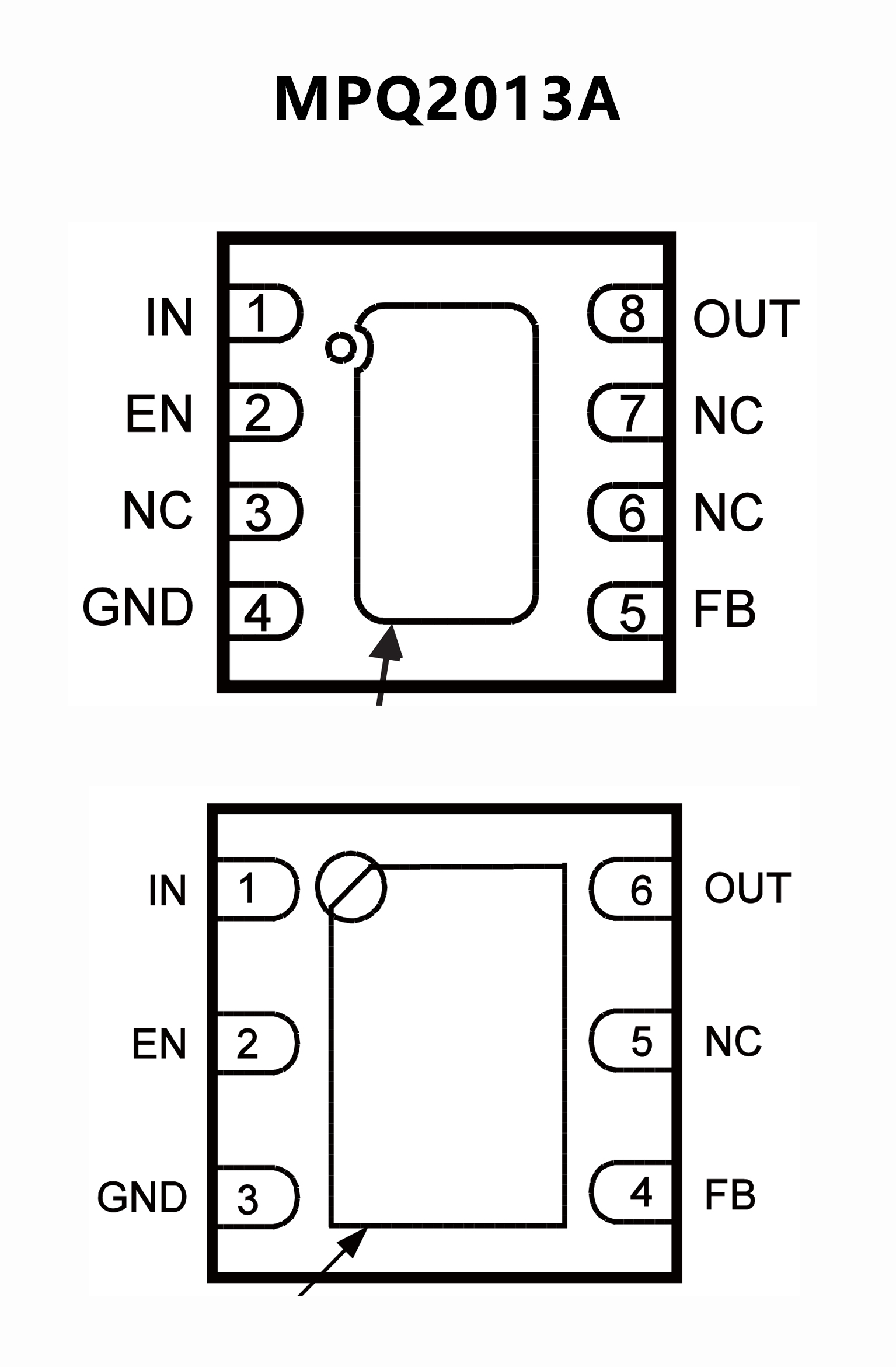

MPQ2013A MPQ2013A.pdf

No.13878

FEATURES

 2.5V to 40V Input Range

 3.3µA Quiescent Supply Current

 Stable With Low-value Output Ceramic Capacitor (> 0.47 μF)

 150mA Specified Current for QFN-6 and QFN-8 Packages

 620mV Dropout at 150mA Load

 Available in Fixed and Adjustable Output (1.215 V to 15 V)

  Versions

 Output ±2% Accuracy for QFN-8 Package Output ±4%

  Accuracy for QFN-6 Package

 Specified Current Limit

 Thermal Shutdown

 -40°C to +150°C Specified Junction Temperature Range

• Available in QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm)

  Packages

• Available in AEC-Q100 Grade 1






PIN CONFIGUTION
