1.0 A Low-Dropout PositiveFixed and AdjustableVoltage Regulators, SGM2240Q Replace NCV1117-1A.
FEATURES

 AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1
  TA = -40℃ to +125℃
 Operating Input Voltage Range: 2.7V to 20V
 Fixed Output from 1.5V to 12V
 Adjustable Output from 1.25V to 18V
 1A Output Current
 Output Voltage Accuracy: ±1% at +25℃
 Low Dropout Voltage: 1.25V (TYP) at 1A
 Can Start Up when the Output Voltage is Negative
 Current Limiting and Thermal Protection
 Stable with Small Case Size Ceramic Capacitors
 -40℃ to +125℃ Operating Temperature Range
 Available in Green SOT-223-3 and TO-252-2A

  Packages

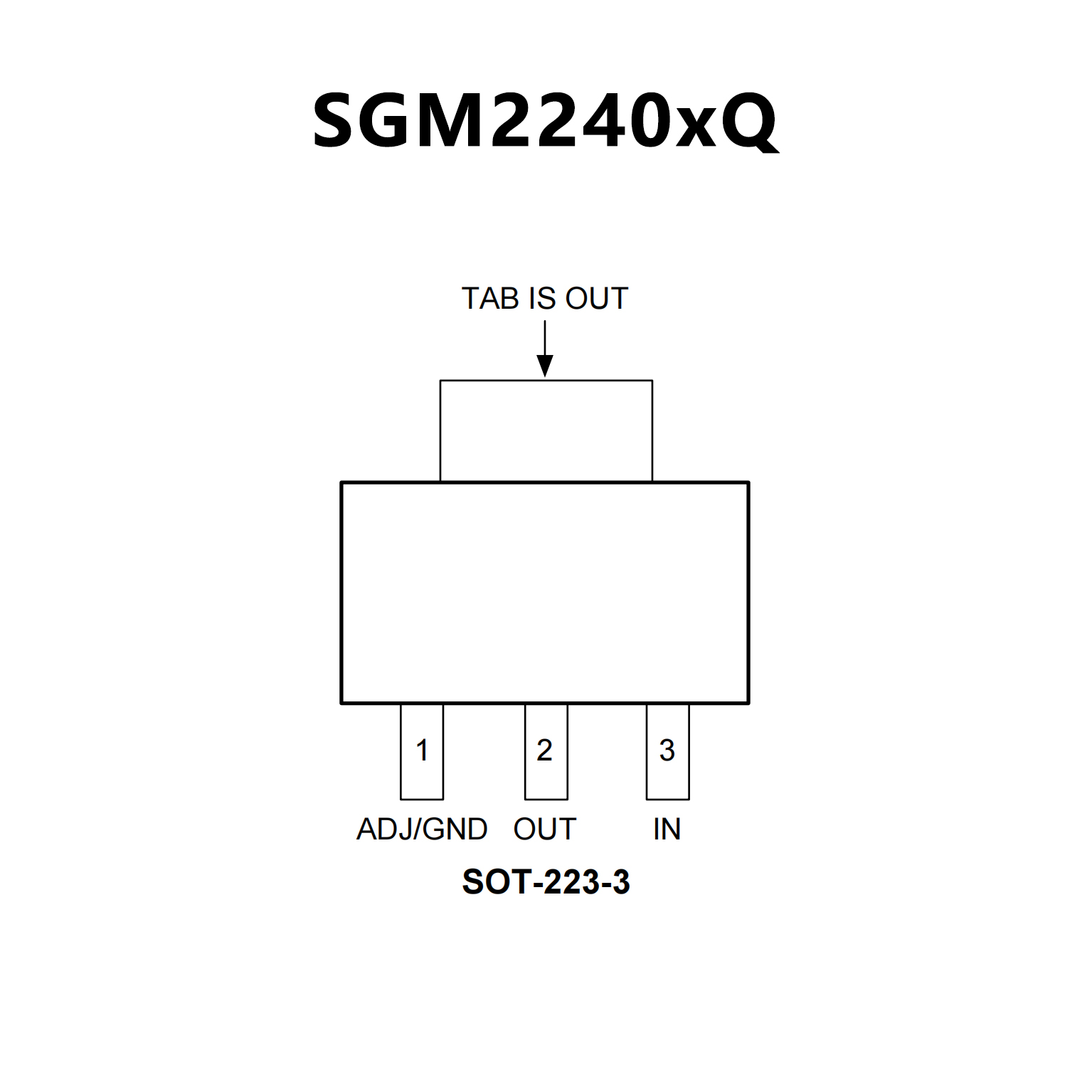

PIN CONFIGUTION
优势替代
NCV1117-1A NCV1117-1A.pdf

No.13881

FEATURES

 Output Current in Excess of 1.0 A

 1.2 V Maximum Dropout Voltage at 800 mA Over

  Temperature

 Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V,

  2.5 V, 2.85 V,  3.3 V, 5.0 V, and 12 V

 Adjustable Output Voltage Option

 No Minimum Load Requirement for Fixed Voltage

  Output Devices

 Reference/Output Voltage Trimmed to ±1.0%

 Current Limit, Safe Operating and Thermal

  Shutdown Protection

 Operation to 20 V Input

 NCV Prefix for Automotive and Other Applications

  Requiring Unique Site and Control Change Requirements;

  AEC−Q100 Qualified and PPAP Capable

 These are Pb-Free Devices

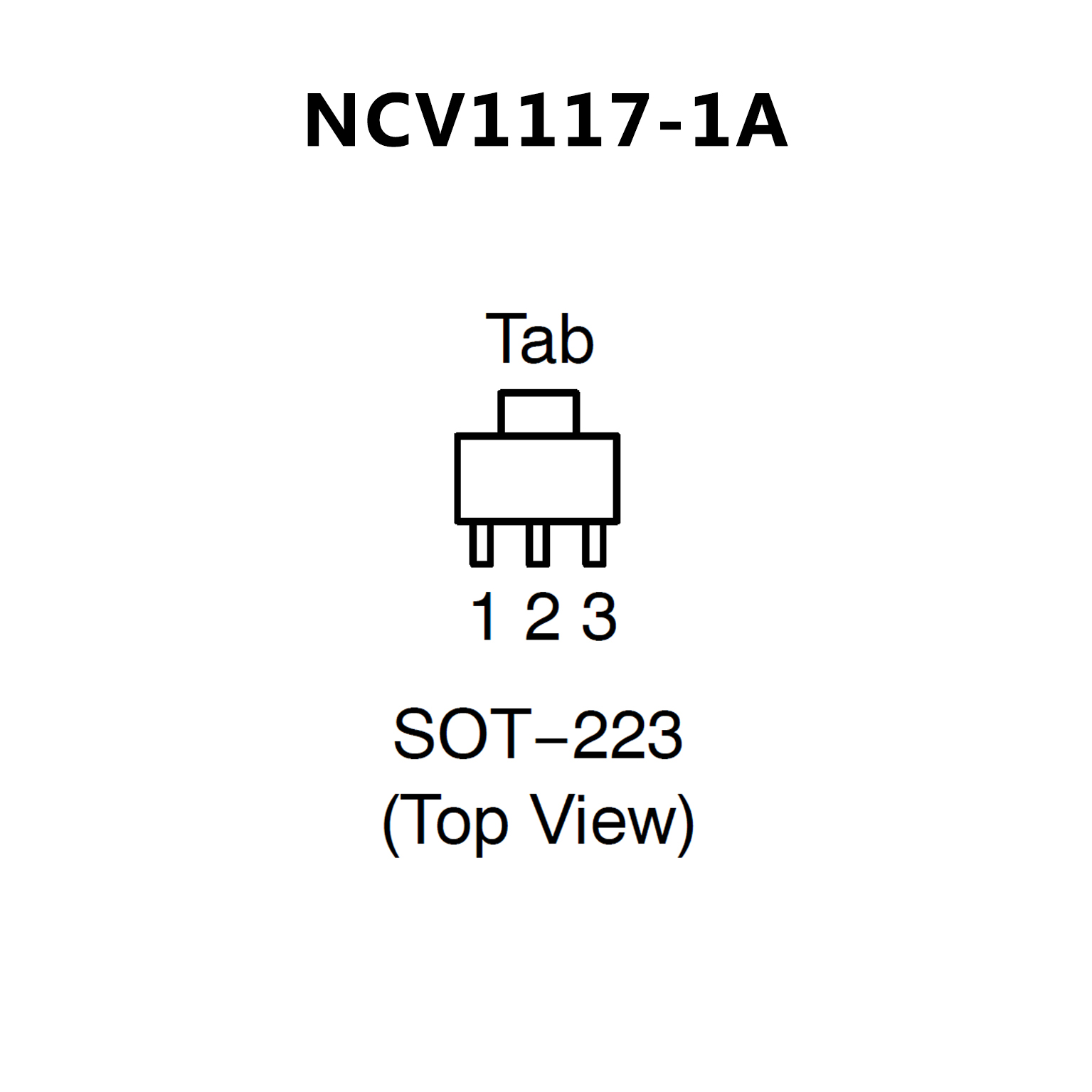

PIN CONFIGUTION
