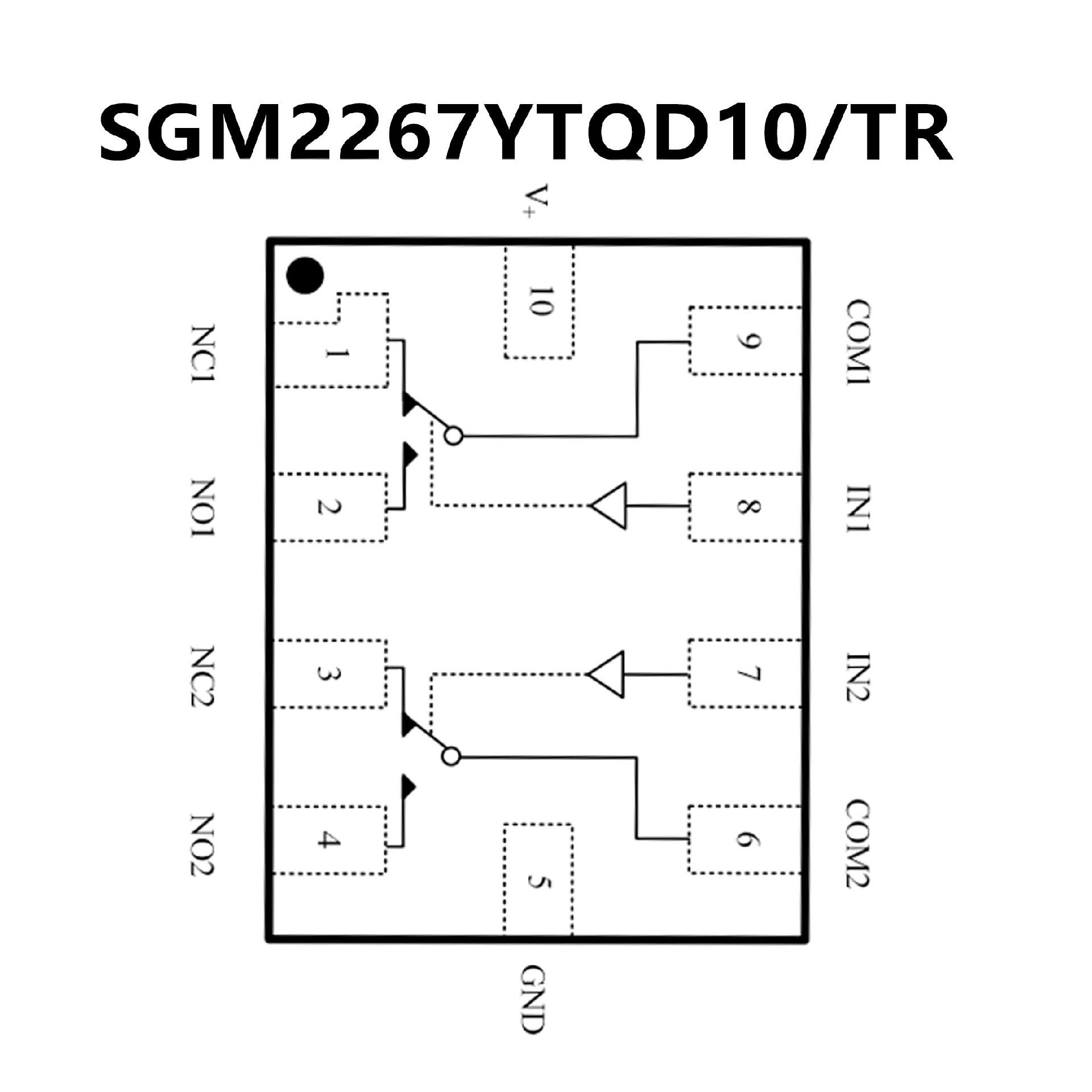

SGM2267.pdf• Voltage Operation: +1.8V to +4.2V
• Ultra Low On-Resistance: 0.4Ω (TYP) at +4.2V
• On-Resistance Matching: 0.04Ω (TYP)
• On-Resistance Flatness: 0.08Ω (TYP)
• -3dB Bandwidth: 40MHz
• High Off-Isolation: -78dB at 100kHz
• Low Crosstalk: -103dB at 100kHz
• Rail-to-Rail Input and Output Operation
• TTL/CMOS Compatible
• Break-Before-Make Switching
• Extended Industrial Temperature Range:-40°C to +85°C
• Lead (Pb) Free TQFN-10 (2.1mm×1.6mm) Package
• Typical 0.35Ω On Resistance (RON) for +2.7V Supply

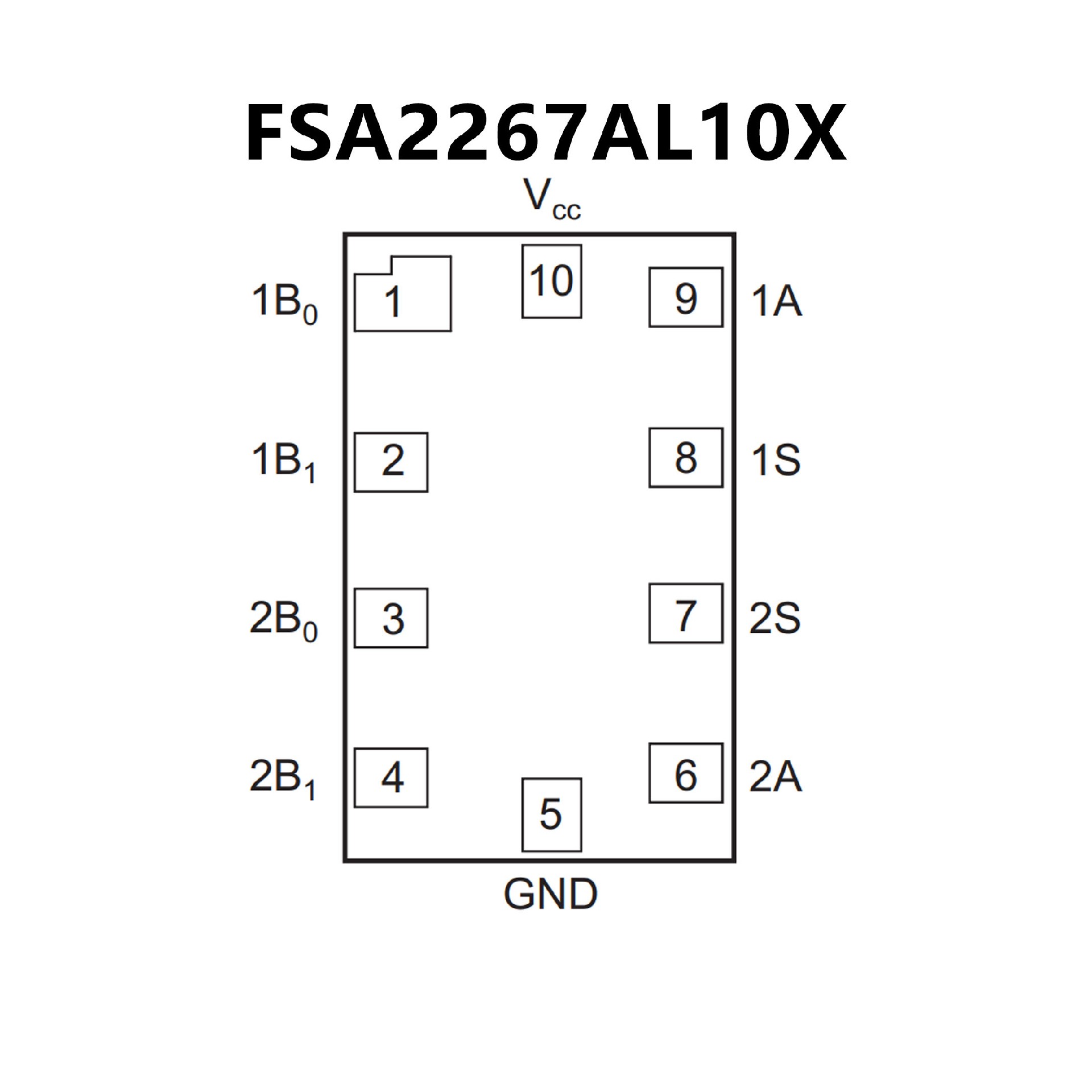

• FSA2267A Features <10µA ICCT Current
when S Input is Lower than VCC
• RON Fatness for +2.7V Supply: 0.25Ω Maximum
• 1.6mm x 2.1mm 10-Lead MicroPak™ Package
• Broad VCC Operating Range
• Low THD (0.02% Typical for 32ΩLoad)
• High Current Handling Capability
(350mA Continuous
Current <3.3V Supply)
