1MHz, General Purpose CMOS Operational Amplifier,SGM2358 Replace TLV9002.
SGM2358
SGM2358.pdf
SGM2358.pdfFEATURES
• Low Cost
• Rail-to-Rail Output
• 1.7mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 1MHz
• Very Low Input Bias Currents: 10pA
• Input Common-Mode Voltage Range Includes
Ground
• Operates from 2.5 V to 5.5 V
• Small Packaging: SO-8

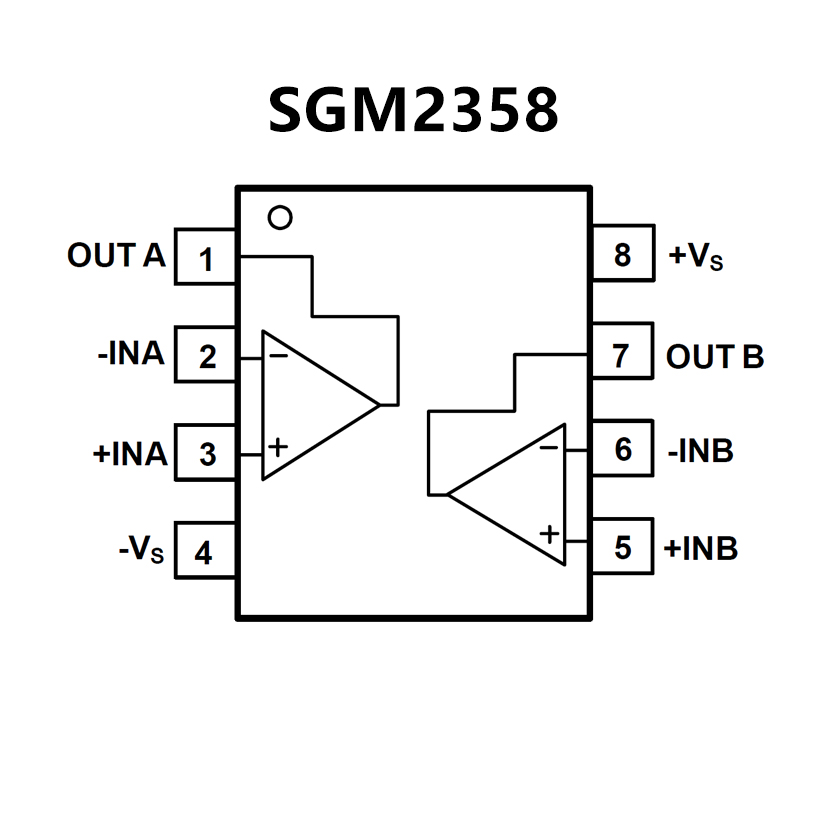

PIN CONFIGUTION
优势替代
FEATURES
• Scalable CMOS amplifier for
low-cost applications
• Rail-to-rail input and output
• Low input offset voltage: ±0.4 mV
• Unity-gain bandwidth: 1 MHz
• Low broadband noise: 27 nV/√Hz
• Low input bias current: 5 pA
• Low quiescent current: 60 μA/Ch
• Unity-gain stable
• Internal RFI and EMI filter
• Operational at supply voltages as low as 1.8 V
• Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance
• Extended temperature range: –40°C to 125°C

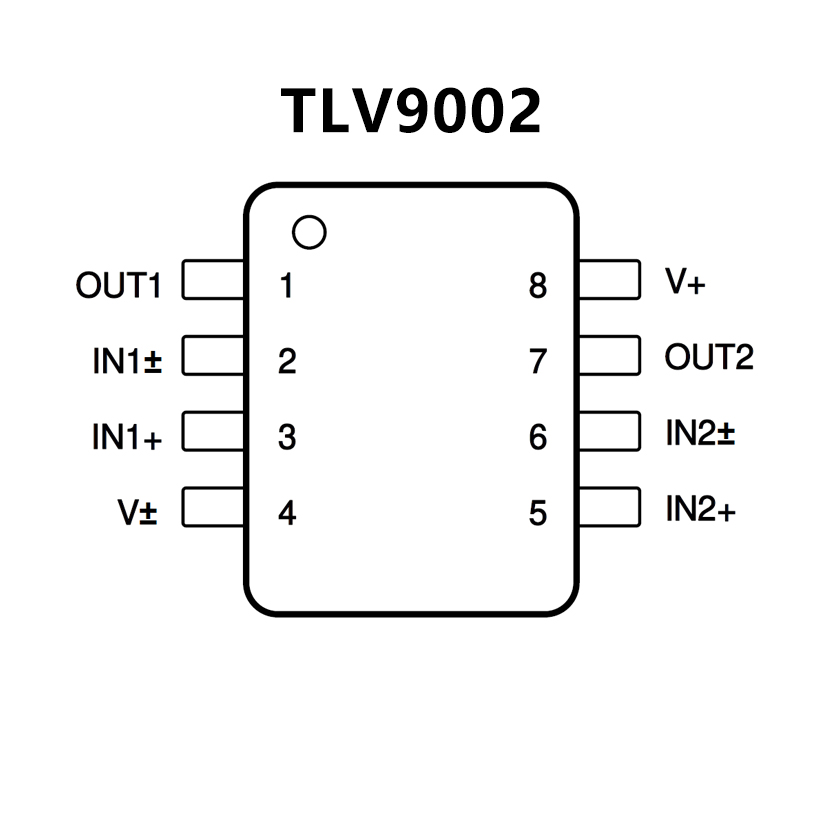

PIN CONFIGUTION
