1MHz, General Purpose CMOS Operational Amplifier,SGM2358YS Replace TP358A.
SGM2358YS
SGM2358YS.pdf
SGM2358YS.pdfFEATURES
• Low Cost
• Rail-to-Rail Output
1.7mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 1MHz
• Very Low Input Bias Currents: 10pA
• Input Common-Mode Voltage Range Includes
Ground
• Operates from 3 V to 5.5 V
• Small Packaging: SO-8

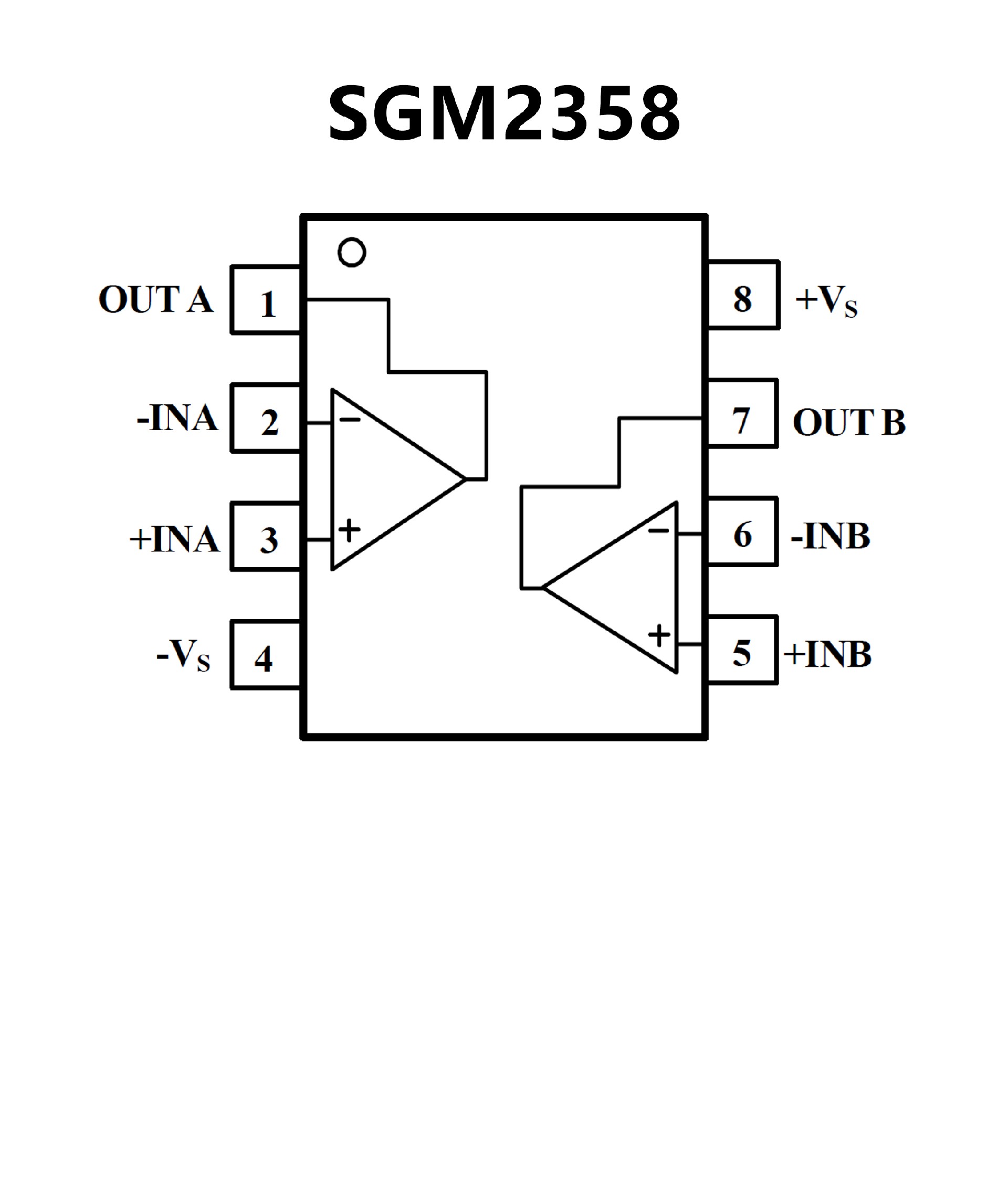

PIN CONFIGUTION
优势替代
FEATURES
• General Purpose, Low Cost
• Gain Bandwidth Product: 1MHz
• Low Quiescent Current: 45μA/Amplifier
• Offset Voltage: 5.0mV Maximum
• Offset Voltage Temperature Drift: 2uV/°C
• Input Bias Current: 10pA
• CMRR/PSRR: 90dB
• Unity Gain Stable
• Rail-to-Rail Input and Output
• No Phase Reversal for Overdriven Inputs
• Supply Voltage Range:
• TP321-DF0R: 2.1V to 5.5V
• Other Part: 2.1V to 6.0V
• Operation Range: –40°C to 125°C

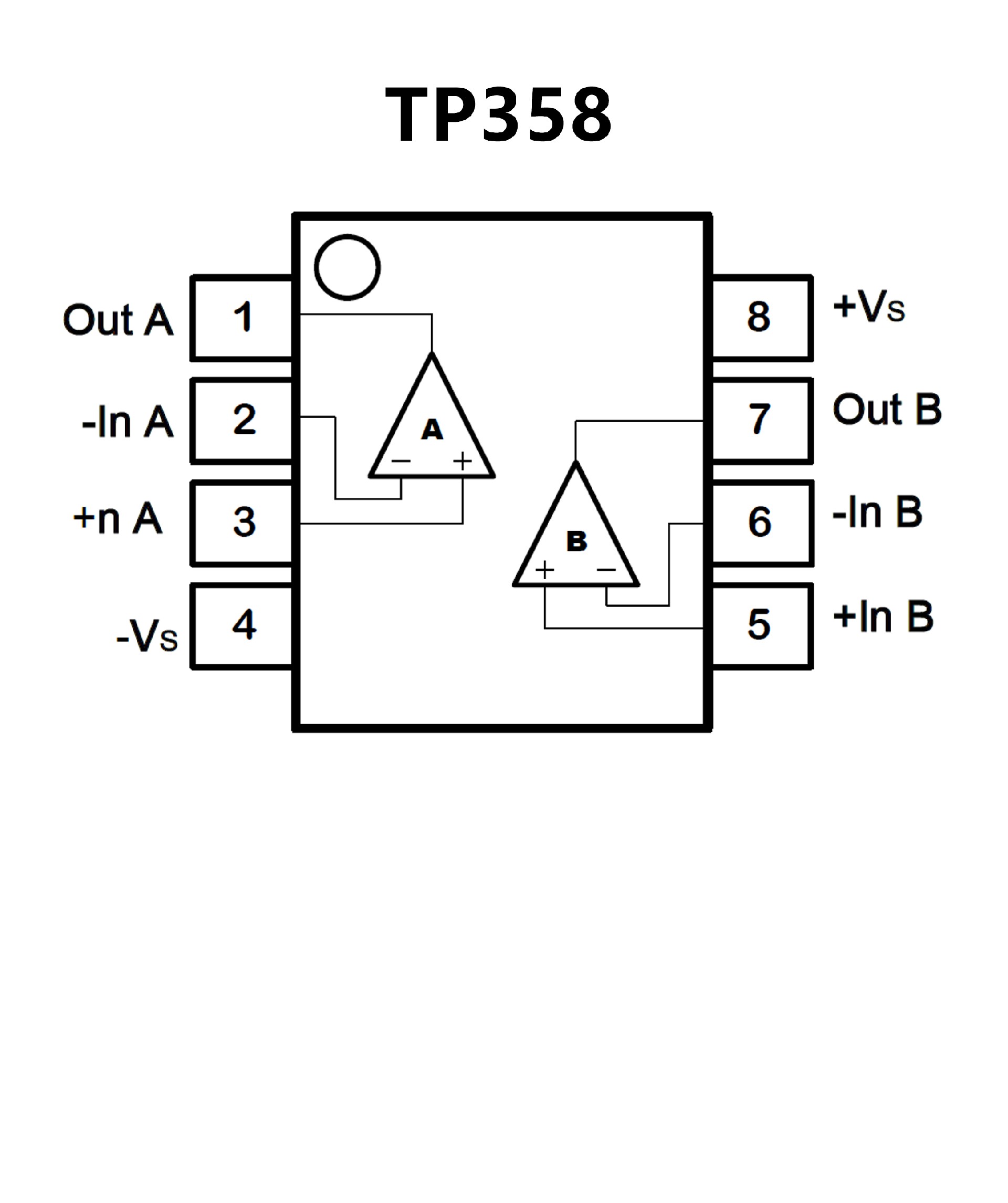

PIN CONFIGUTION
