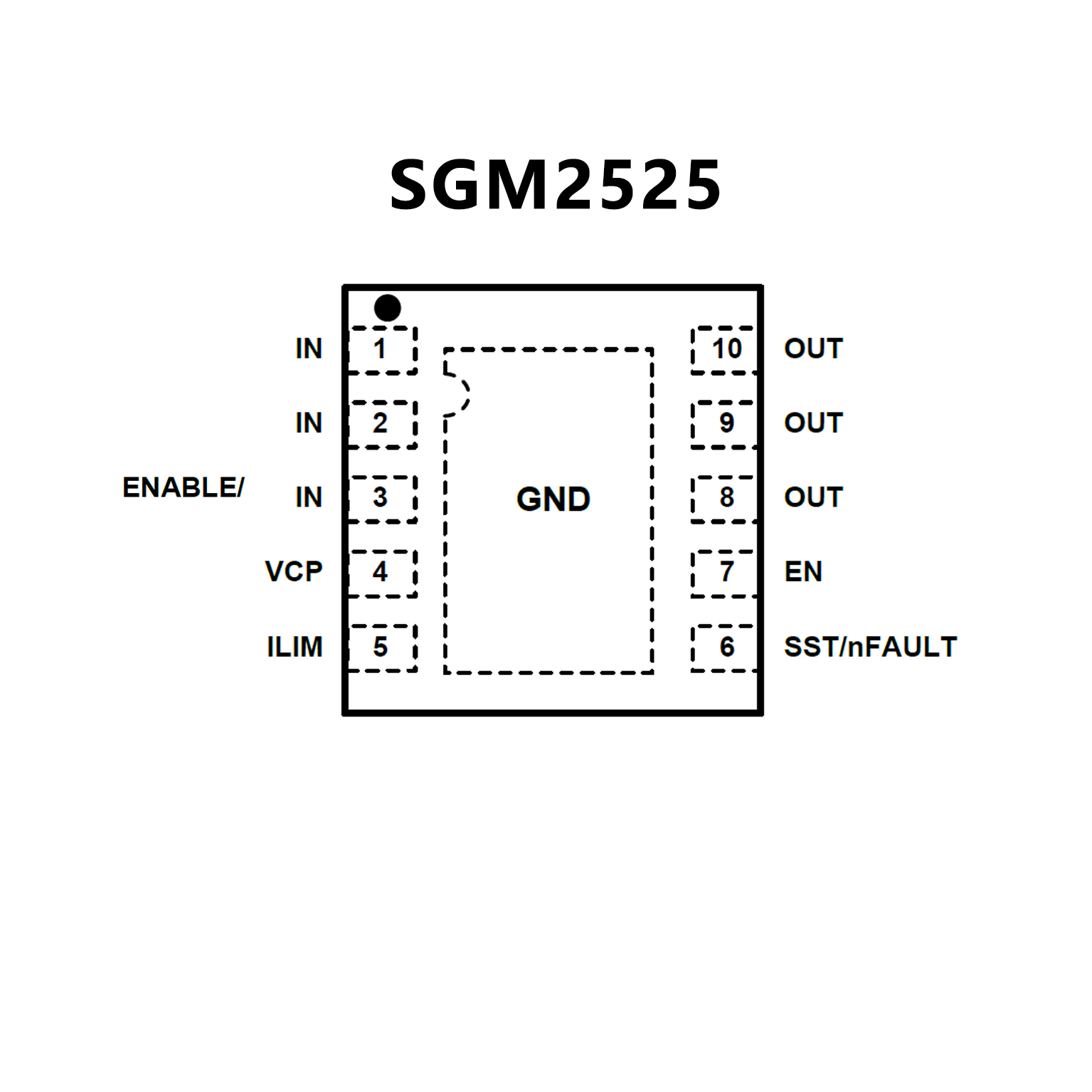

SGM2525.pdf• Wide Input Voltage Range from 4.5V to
24V with Surge up to 30V
• Extremely Low RDS(ON) for the Integrated
Protection Switch: 23mΩ
• Programmable Soft-Start Time
• Programmable Current Limit 5A MAX
• Thermal Shutdown Protection
SGM2525: Latched-Off SGM2526: Auto-Recovery
• Selectable Input Range and Clamping Output
Voltage Threshold
• Enable Interface Pin
• -40℃ to +85℃ Operating Temperature Range
• Available in the Green TDFN-3×3-10L Package

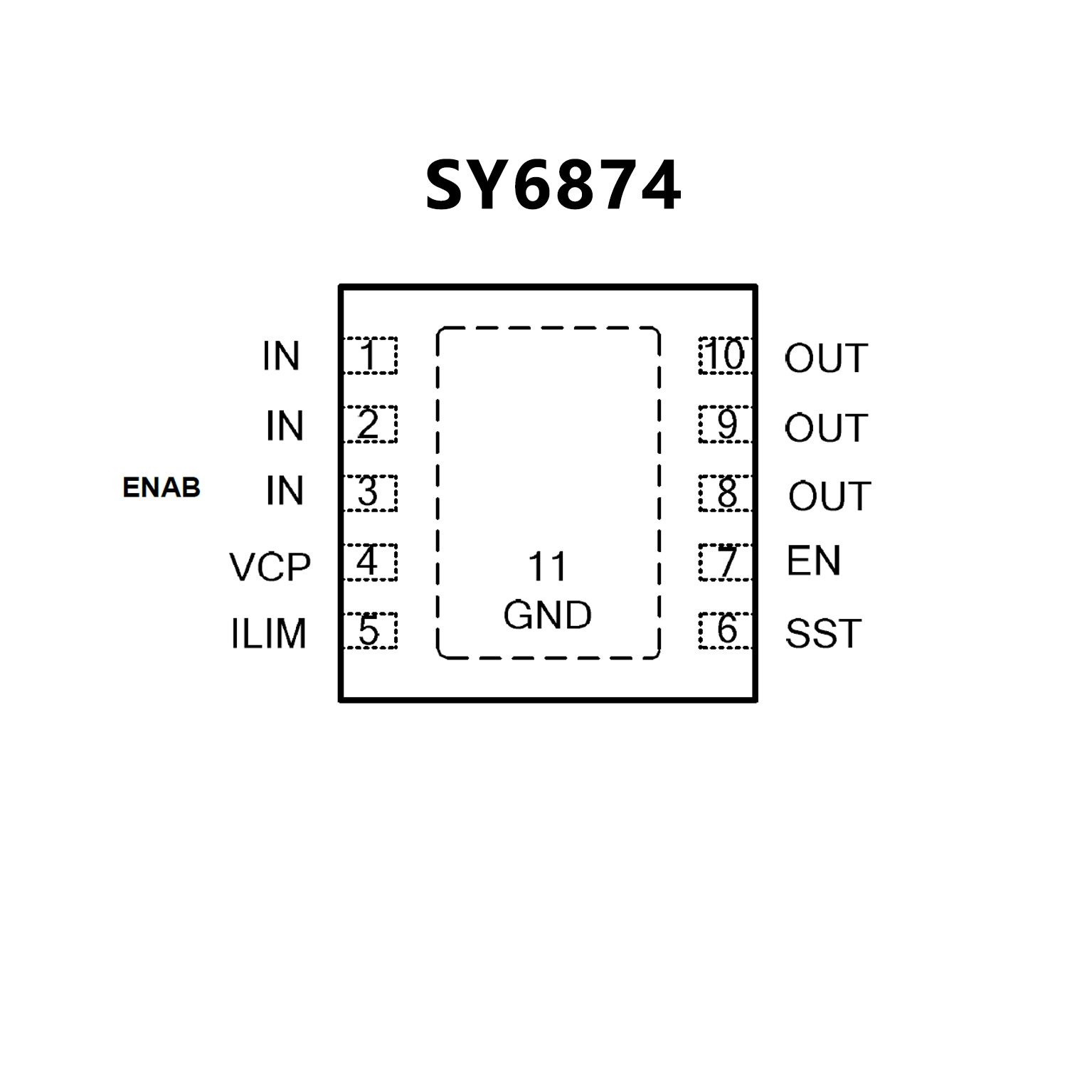

• Wide Input Voltage Range from 2.5V to
15V with surge up to 30V
• Extremely Low RDS(ON) for the Integrated
Protection Switch: 50 mΩ
• Programmable Soft-Start Time
• Programmable Current Limit up to 4A
• Short-circuit Protection
• Selectable Input Range and Clamping
Output Voltage Threshold.
• Enable Interface Pin
• Thermal Shutdown Protection & Auto Recovery
• RoHS Compliant and Halogen Free
• Compact package: DFN3X3-10
