Programmable Current Limit Switch with Output Voltage Clamping, SGM2526 Replace SY6874.
SGM2526
SGM2526.pdf
SGM2526.pdfFEATURES
• Wide Input Voltage Range from 4.5V to 24V with
Surge up to 30V
• Extremely Low RDS(ON) for the Integrated
Protection Switch: 23mΩ
• Programmable Soft-Start Time
• Programmable Current Limit 5A MAX
• Thermal Shutdown Protection
SGM2525: Latched-Off
SGM2526: Auto-Recovery
• Selectable Input Range and Clamping Output
Voltage Threshold
• Enable Interface Pin
• -40℃ to +85℃ Operating Temperature Range
• Available in the Green TDFN-3×3-10L Package

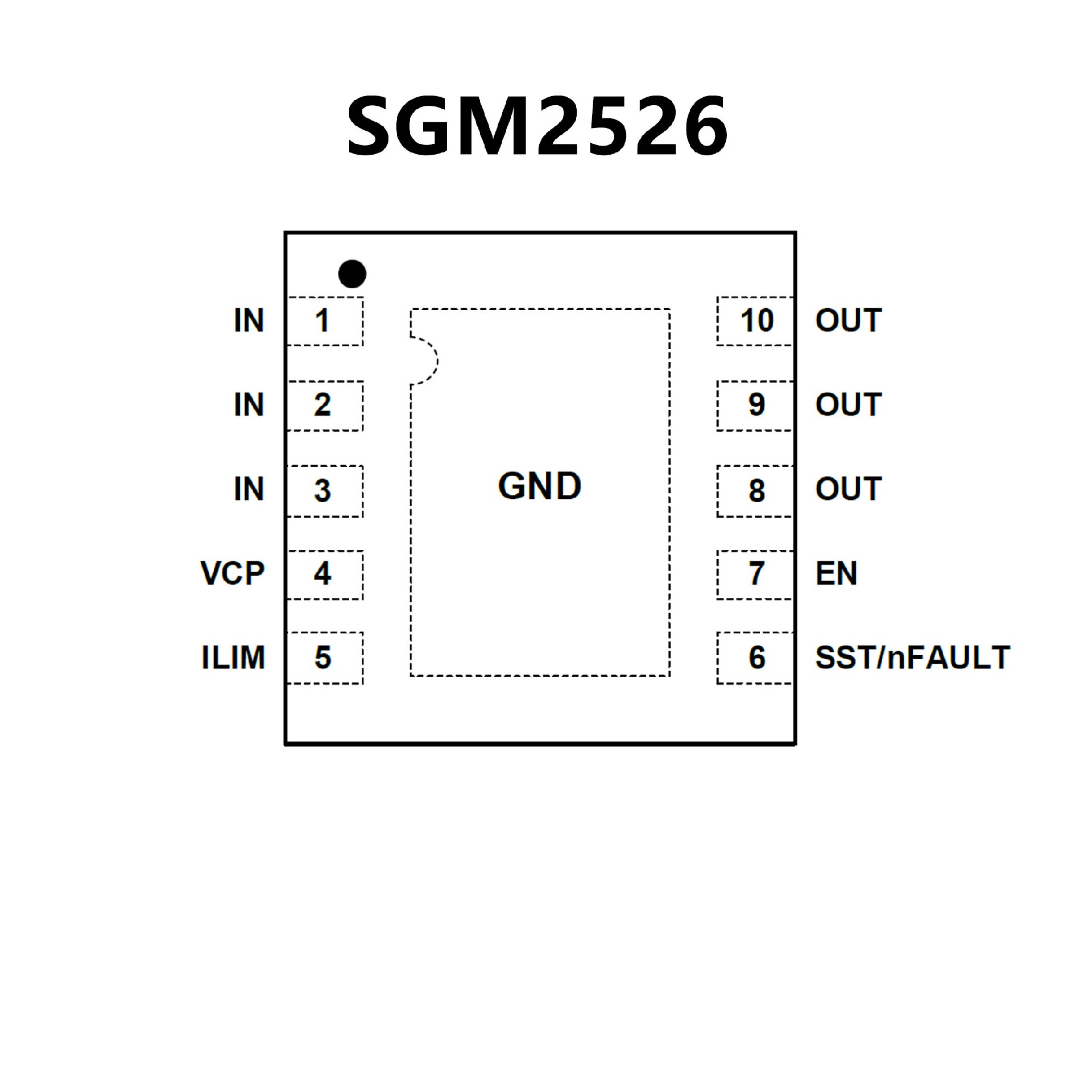

PIN CONFIGUTION
优势替代
FEATURES
• Wide Input Voltage Range from 2.5V to 15V with
surge up to 30V
• Extremely Low RDS(ON) for the Integrated
Protection Switch: 50 mΩ
• Programmable Soft-Start Time
• Programmable Current Limit up to 4A
• Short-circuit Protection
• Selectable Input Range and Clamping Output
Voltage Threshold.
• Enable Interface Pin
• Thermal Shutdown Protection & Auto Recovery
• RoHS Compliant and Halogen Free
• Compact package: DFN3X3-10

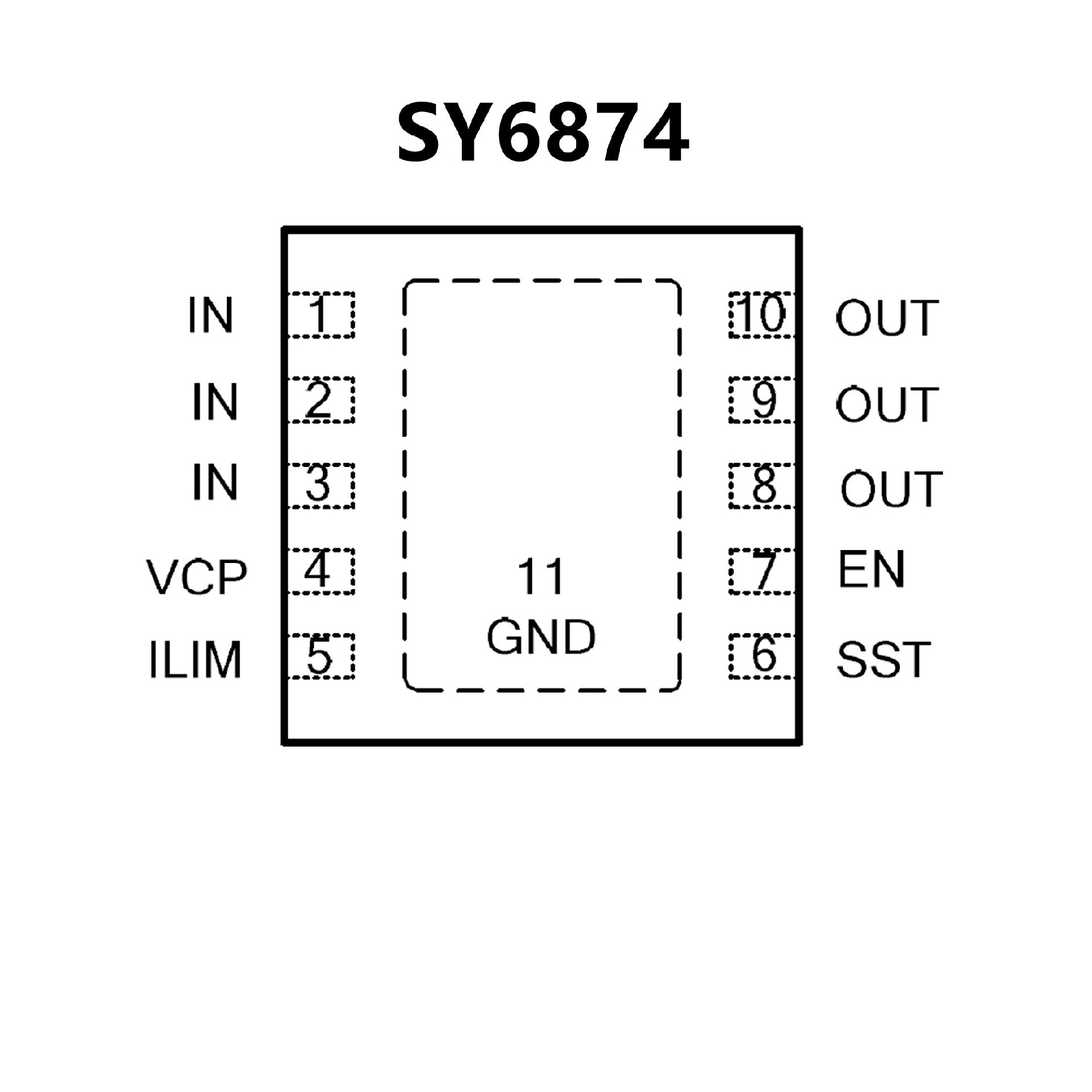

PIN CONFIGUTION
