SGM2528C.pdf• Wide Input Voltage Range from 9V to
18V withSurge up to 30V
• Extremely Low RDS(ON) for the
IntegratedProtection Switch: 26mΩ (TYP)
• 3-State ENABLE/FAULT Pin,
Bidirectional Interface
• Programmable Soft-Start Time
• Programmable Current Limit up to 5A
• Thermal Shutdown Options:
SGM2528A: Thermal Latch-Off with VCLAMP
SGM2528B: Thermal Auto-Retry with VCLAMP
SGM2528C: Thermal Latch-Off without VCLAMP
• Fault Output for Thermal Shutdown
• Accurate Under-Voltage Lockout
• Accurate Over-Voltage Clamp
(SGM2528A andSGM2528B)

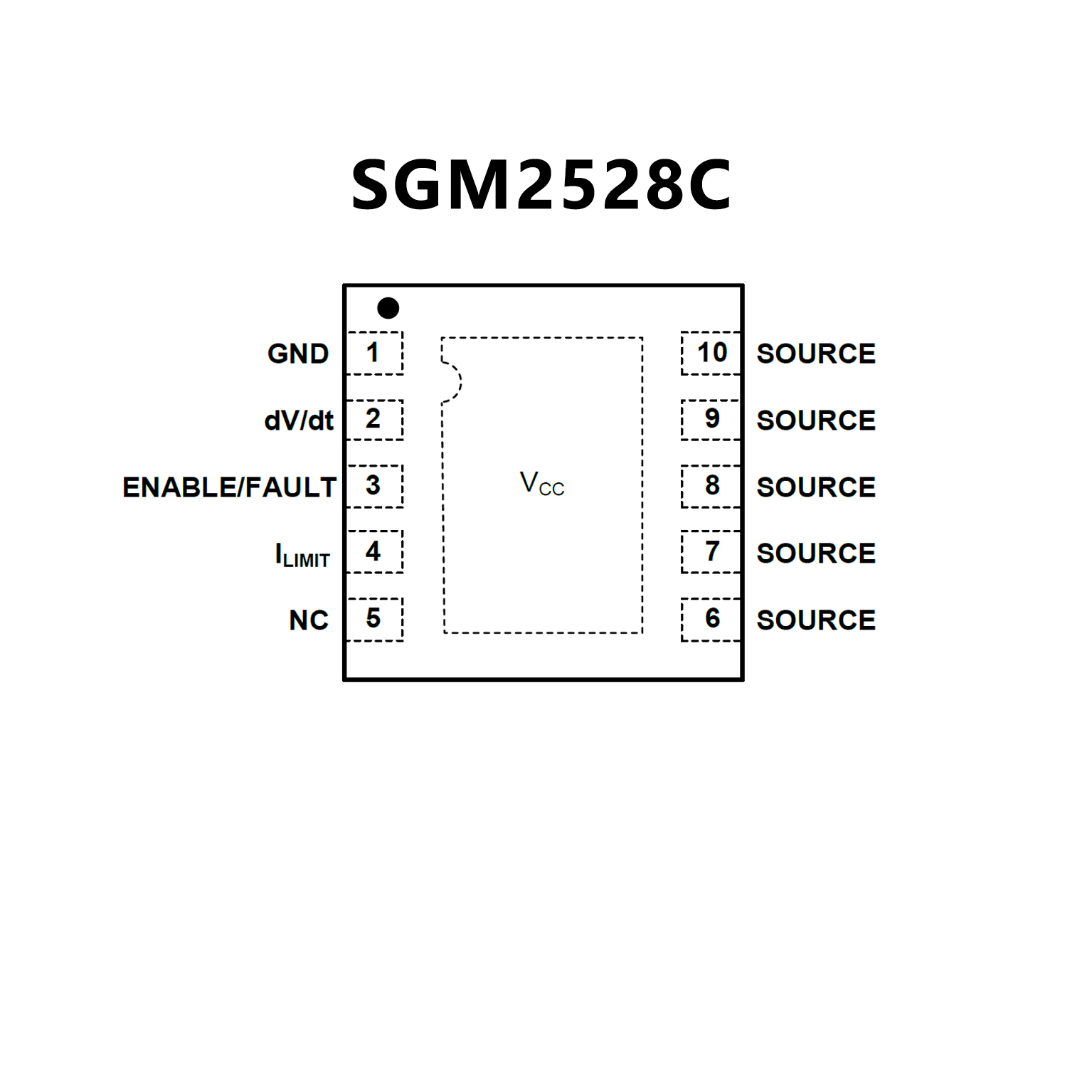

• Available in a Green TDFN-3×3-10L Package

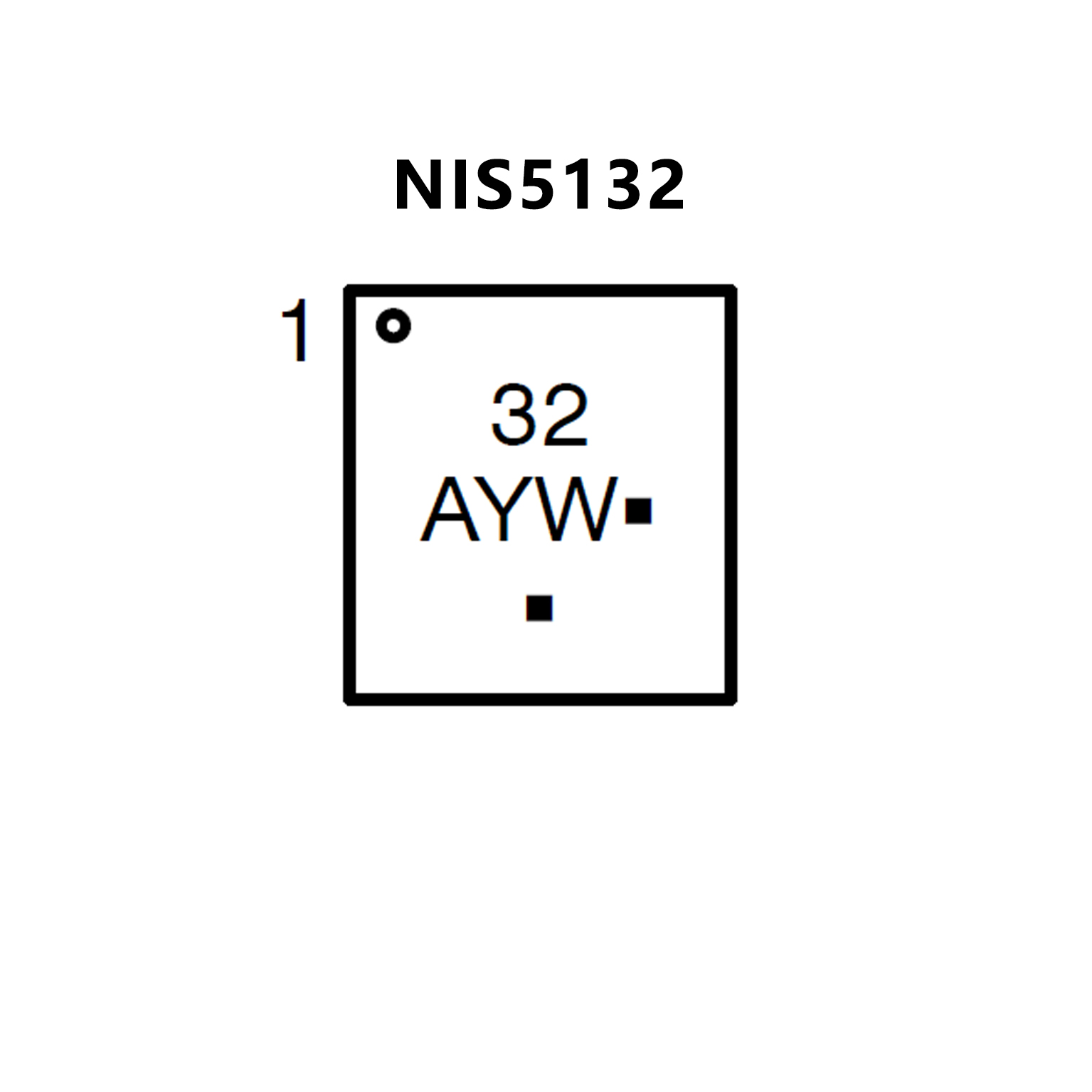

• Integrated Power Device
• Power Device Thermally Protected
• No External Current Shunt Required
• 9 V to 18 V Input Range
• 44 m Typical
• Internal Charge Pump
• Internal Undervoltage Lockout Circuit
• Internal Overvoltage Clamp (MN1 and MN2 versions)
• ESD Ratings: Human Body Model (HBM); 2000 V
Machine Model (MM); 200 V
• These Devices are Pb−Free and are RoHS Compliant
