• Up to 1.5A Maximum Load Current

• Meets USB Current Limiting Requirements

• Adjustable Current Limit: 100mA to 1.7A

• Fast Over-Current Response: 2μs

• 90mΩ High-side MOSFET

• No Reverse Leakage Current of High-side MOSFET

• Reverse Input-Output Voltage Protection

• Operating Range: 2.5V to 5.5V

• Built-In Soft-Start Function

• Quick Auto-Discharge in Disable Status (SGM2553D)

• Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,

  Test Program 1 with CB Report

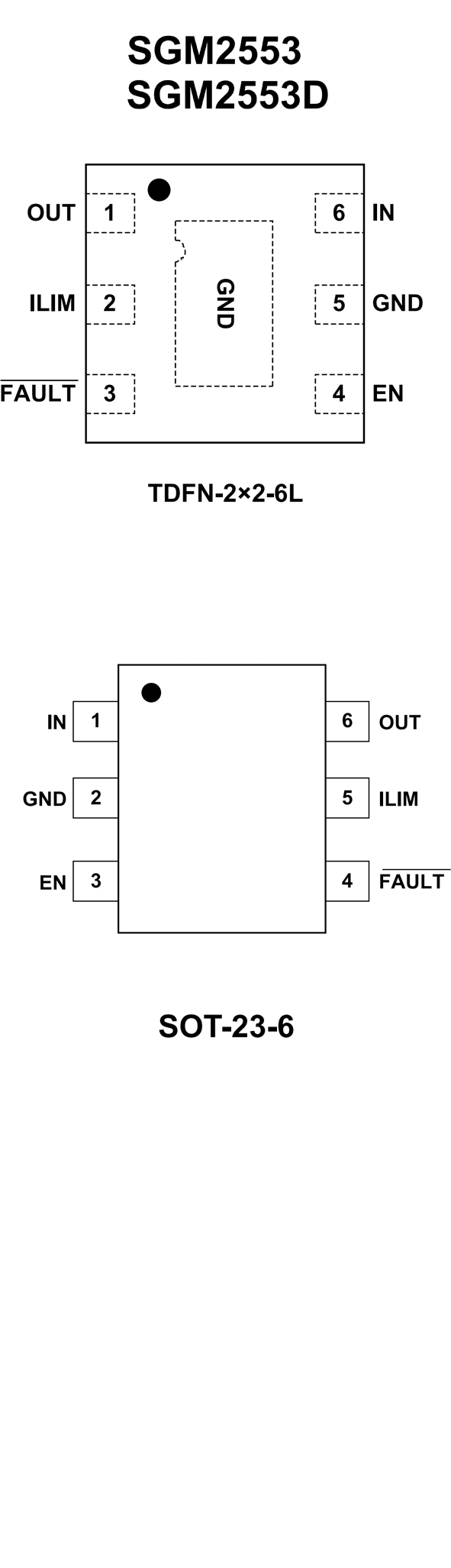

• Available in the Green TDFN-2×2-6L and

  SOT-23-6 Packages
