• 90mΩ (TYP) High-side MOSFET per Channel

• 600mA Minimum Continuous Current per Channel

• 1.1A Current Limit

• Input Voltage Range: 2.7V to 5.5V

• Low Quiescent Current: 28μA (Dual-Channel)

• Soft-Start Function

• Short-Circuit Protection with Thermal Shutdown

• Thermally Isolated Channels

• Fault Status Flag with 4ms Filter Eliminates False

  Assertions

• Under-Voltage Lockout Protection for VIN

• No Reversed Leakage Current

• 1.8V Logic-Compatible Inputs

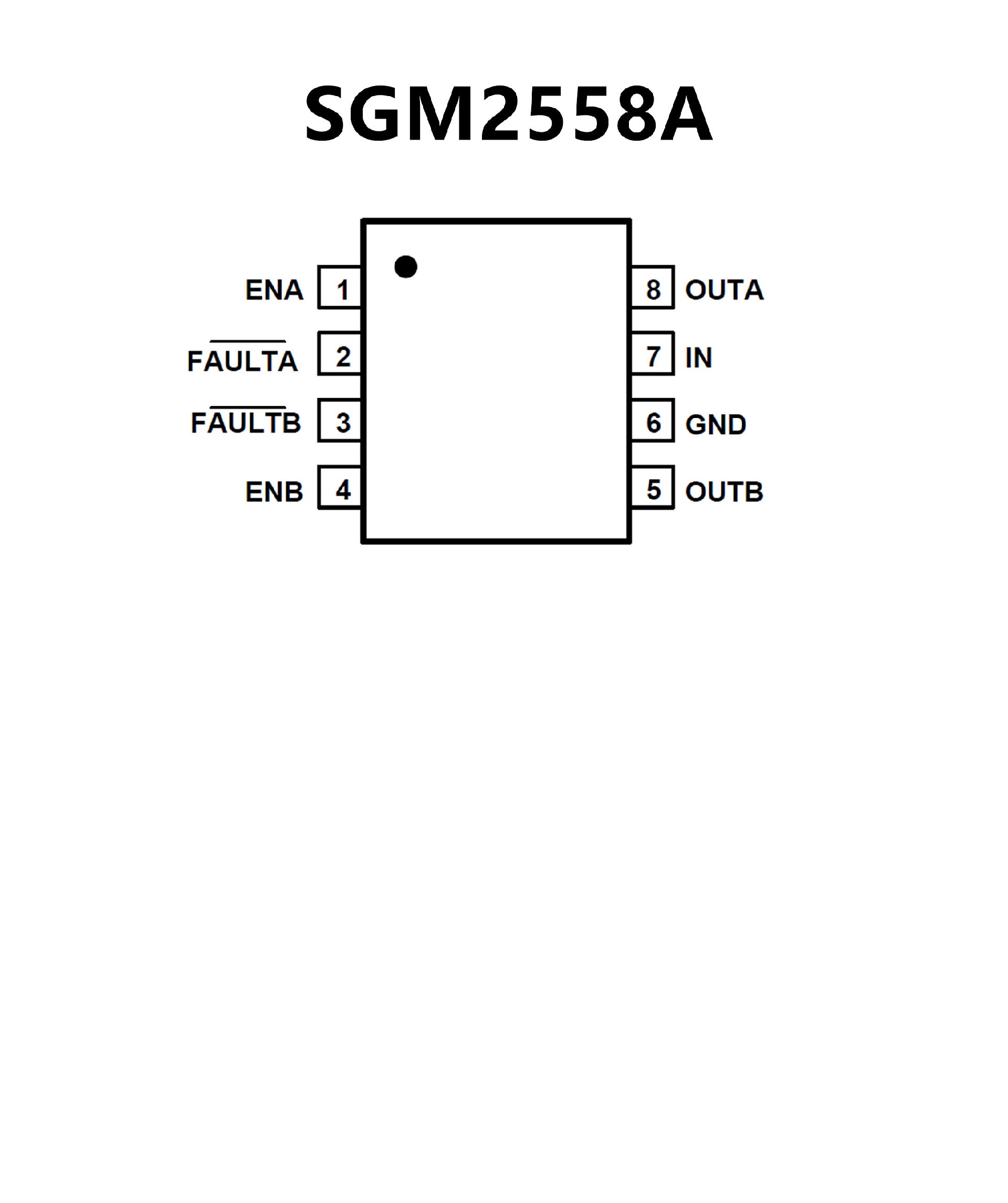

• Available in the Green SOIC-8 and TDFN-3×3-8L

  Packages
