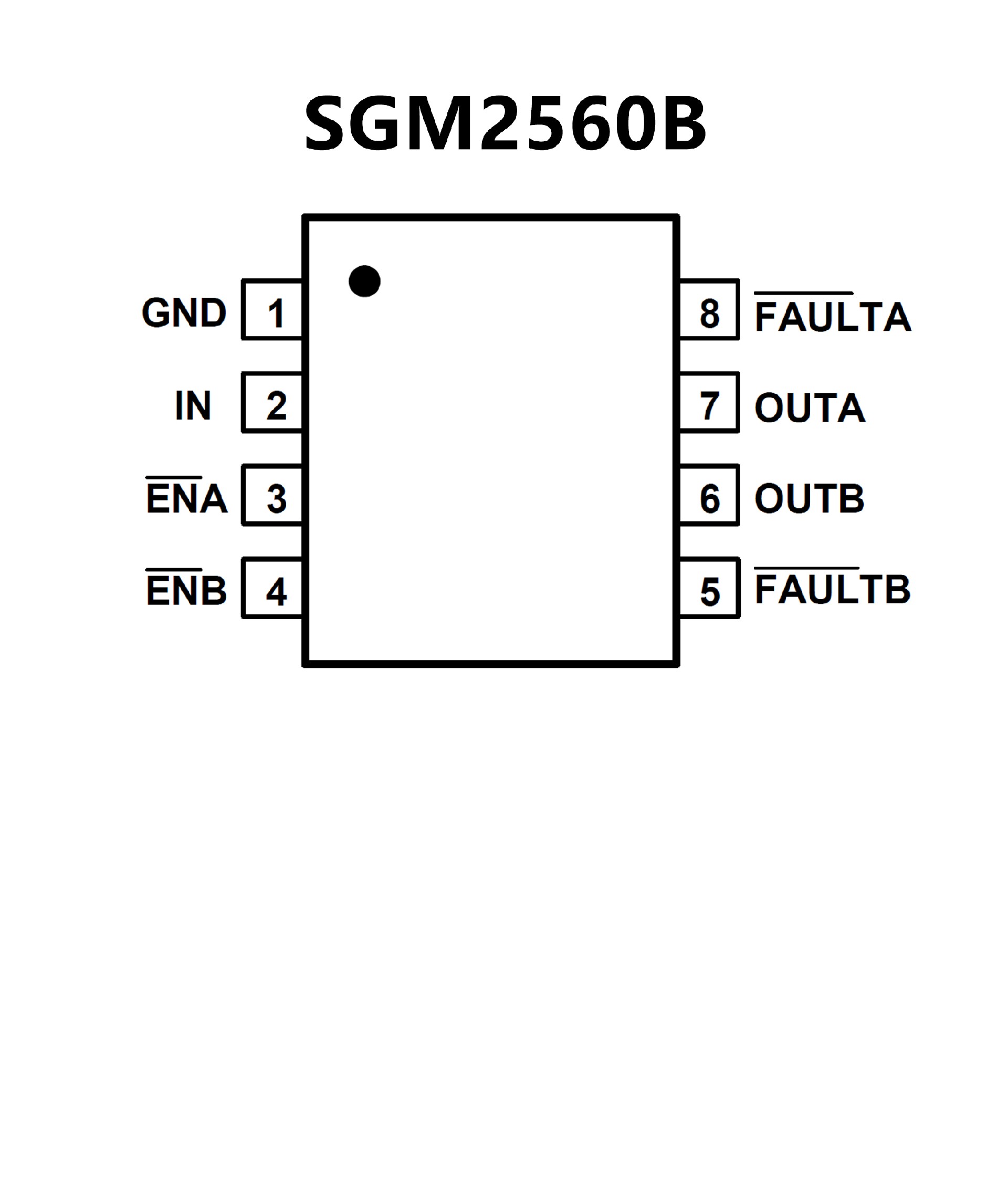

SGM2560B.pdf• 90mΩ (TYP) High-side MOSFET per Channel
• 1.1A Current Limit
• Input Voltage Range: 2.7V to 5.5V
• Low Quiescent Current: 28μA (Dual-Channel)
• Soft-Start Function
• Short-Circuit Protection with Thermal Shutdown
• Thermally Isolated Channels
• Fault Status Flag with 4ms Filter Eliminates False
Assertions
• Under-Voltage Lockout Protection for VIN
• No Reversed Leakage Current
• 1.8V Logic-Compatible Inputs
• Available in the Green SOIC-8 and TDFN-3×3-8L
Packages

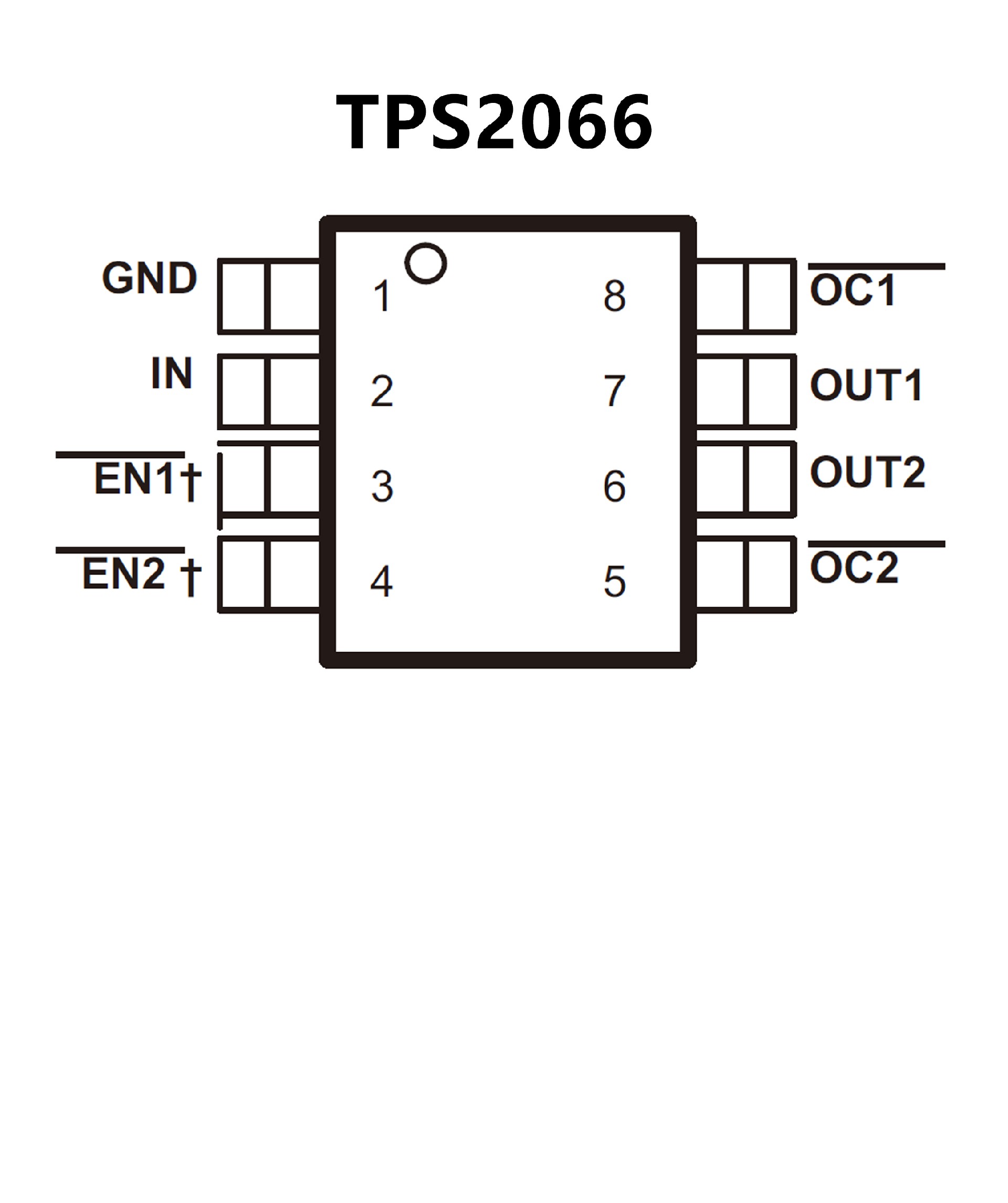

• 70-mΩ High-Side MOSFET
• 1-A Continuous Current
• Thermal and Short-Circuit Protection
• Accurate Current Limit
(1.1 A min, 1.9 A max)
• Operating Range: 2.7 V to 5.5 V
• 0.6-ms Typical Rise Time
• Undervoltage Lockout
• Deglitched Fault Report (OC)
• No OC Glitch During Power Up
• 1-μA Maximum Standby Supply Current
• Bidirectional Switch
• Ambient Temperature Range: -40°C to 85°C
• Built-in Soft-Start
• UL Listed - File No. E169910
