5.5V, 4A, 16mΩ RON Load Switch with Reverse Current Protection,SGM2564 Replace NCP451.
SGM2564
SGM2564.pdf
FEATURES
• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 4A
• Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
• Low Shutdown Current: 180nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.2V GPIO Control Input
• Bidirectional Power Supply for Power Zone Application
• Controlled Slew Rate to Avoid Inrush Current
• Quick Output Discharge
• Available in a Green WLCSP-1.45×0.95-6B Package

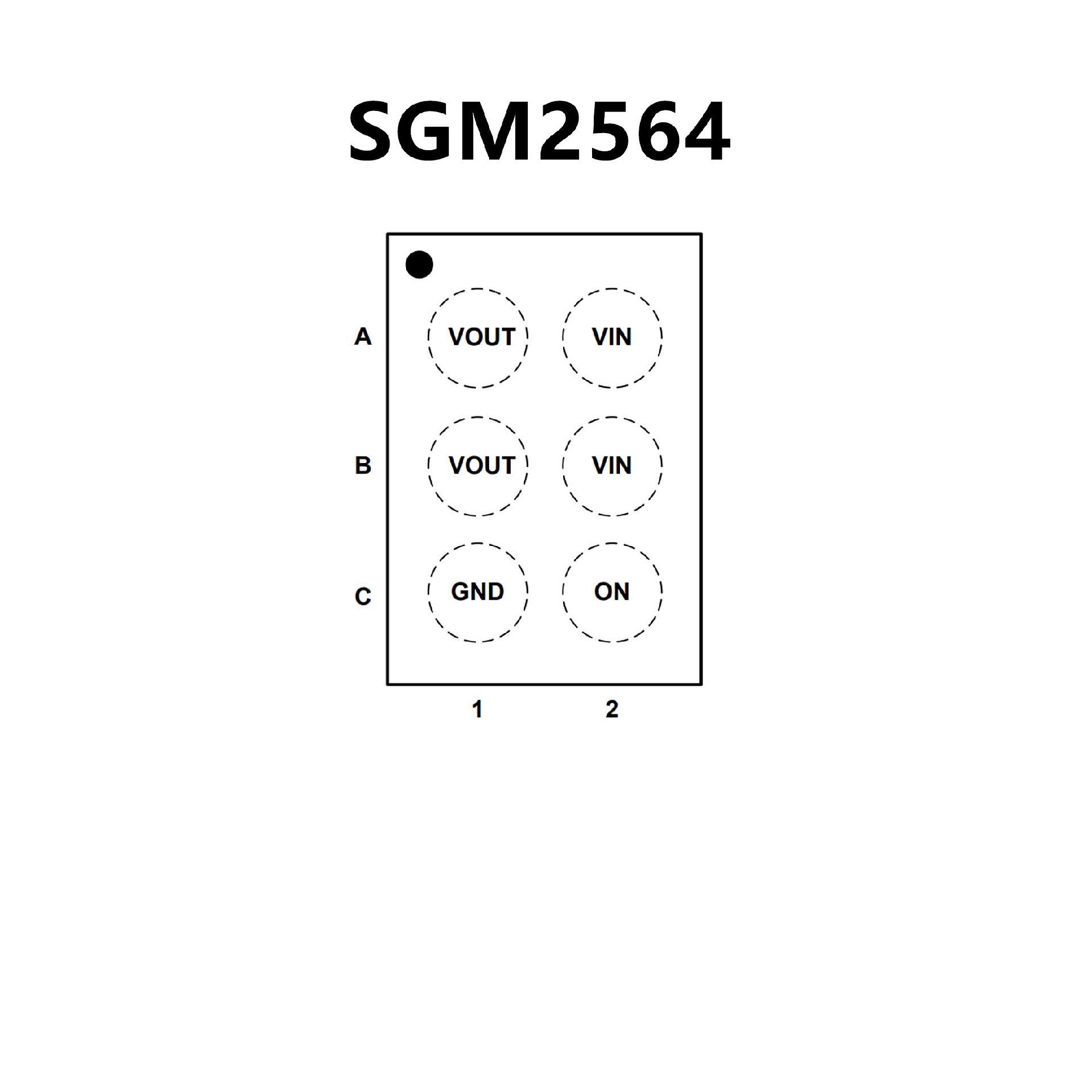

PIN CONFIGUTION

优势替代
FEATURES
• 0.75 V – 5.5 V Operating Range
• 12 mΩN MOSFET from 3.6 V to 5.5 V
• 13 mΩN MOSFET from 1 V to 3.3 V
• DC Current Up to 3 A
• Output Auto−Discharge
• Active High EN Pin
• WLCSP6 0.9 x 1.4 mm
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHSCompliant

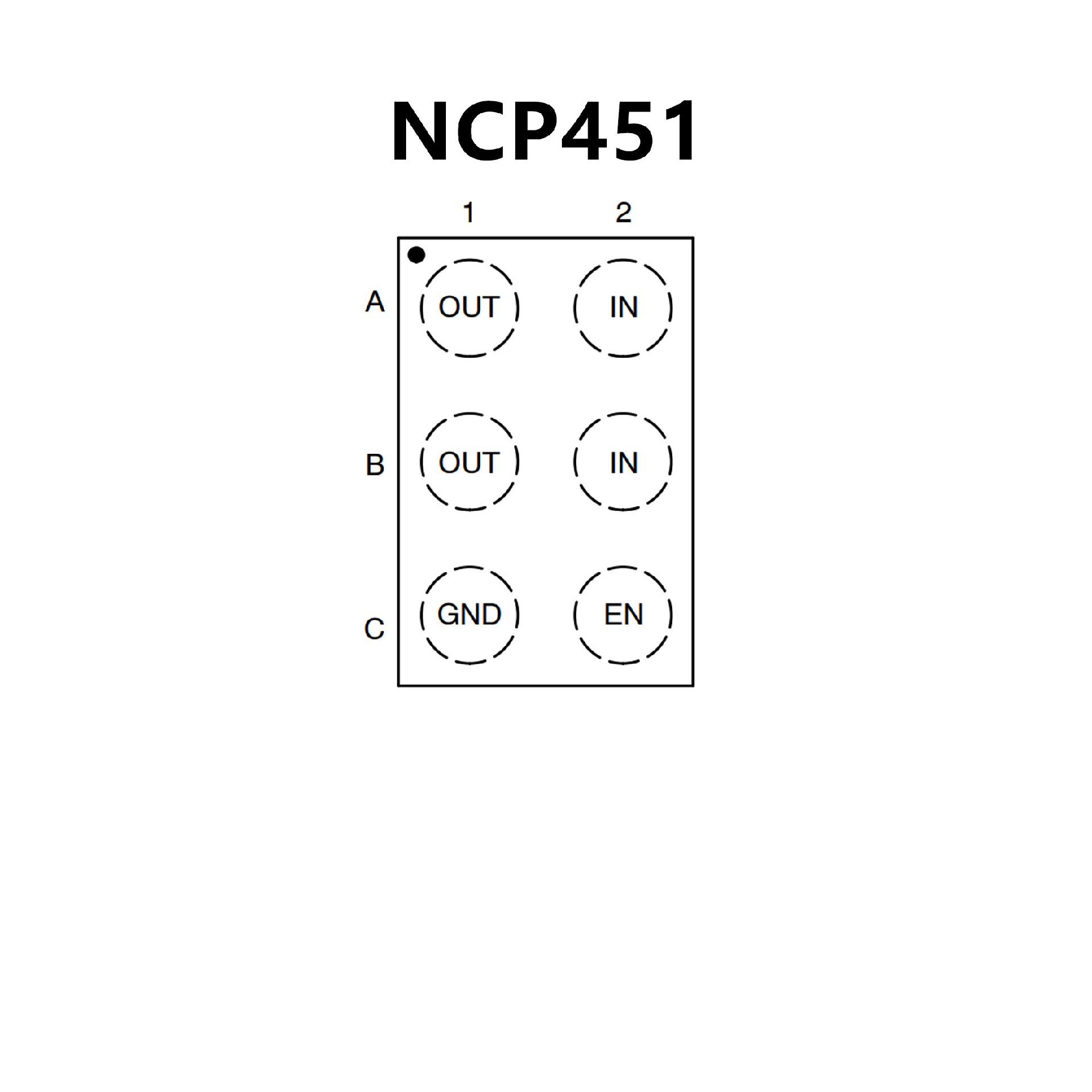

PIN CONFIGUTION
