5.5V, 4A, 16mΩ RON Load Switch with Reverse Current Protection,SGM2564 Replace WS4623.
SGM2564
SGM2564.pdf
SGM2564.pdfFEATURES
• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 4A
• Low On-Resistance
RON = 16mΩ at VIN = 3.3V
RON = 16mΩ at VIN = 1.8V
• Low Shutdown Current: 180nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.2V GPIO Control Input
• Bidirectional Power Supply for Power Zone Application
• Controlled Slew Rate to Avoid Inrush Current
• Quick Output Discharge
• Available in a Green WLCSP-1.45×0.95-6B Package

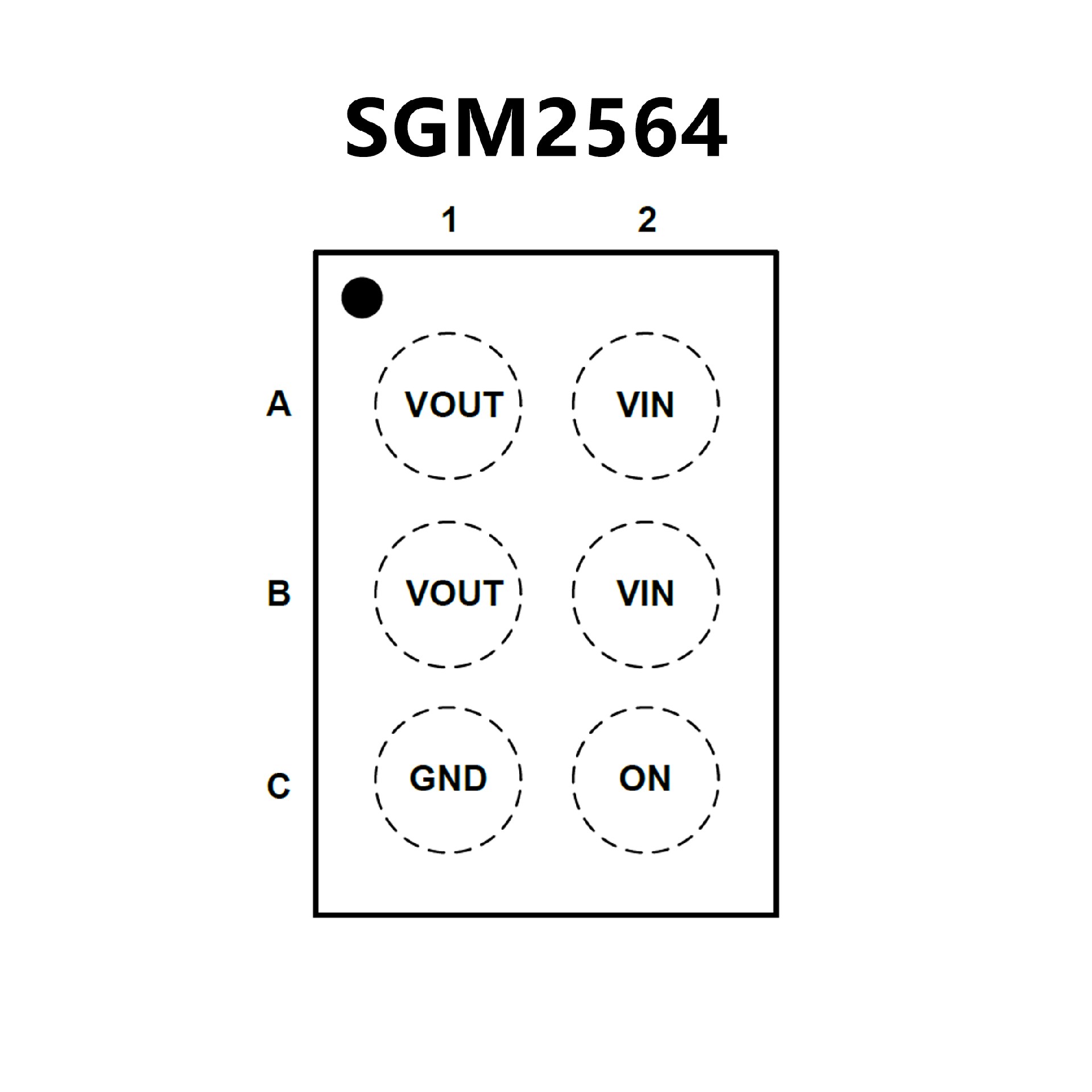

PIN CONFIGUTION
优势替代
FEATURES
• Input Voltage Range :1.2V~5.5V
• Main switch Ron : 19mΩ @ 4.5V
• Maximum Output current : 3A.
• Quiescent current : 300nA @ Typ
• Standby current : 100nA @ Typ
• Recommend capacitor : 1μF
• Active High EN Pin
• CSP-6L 1 x 1.5 mm

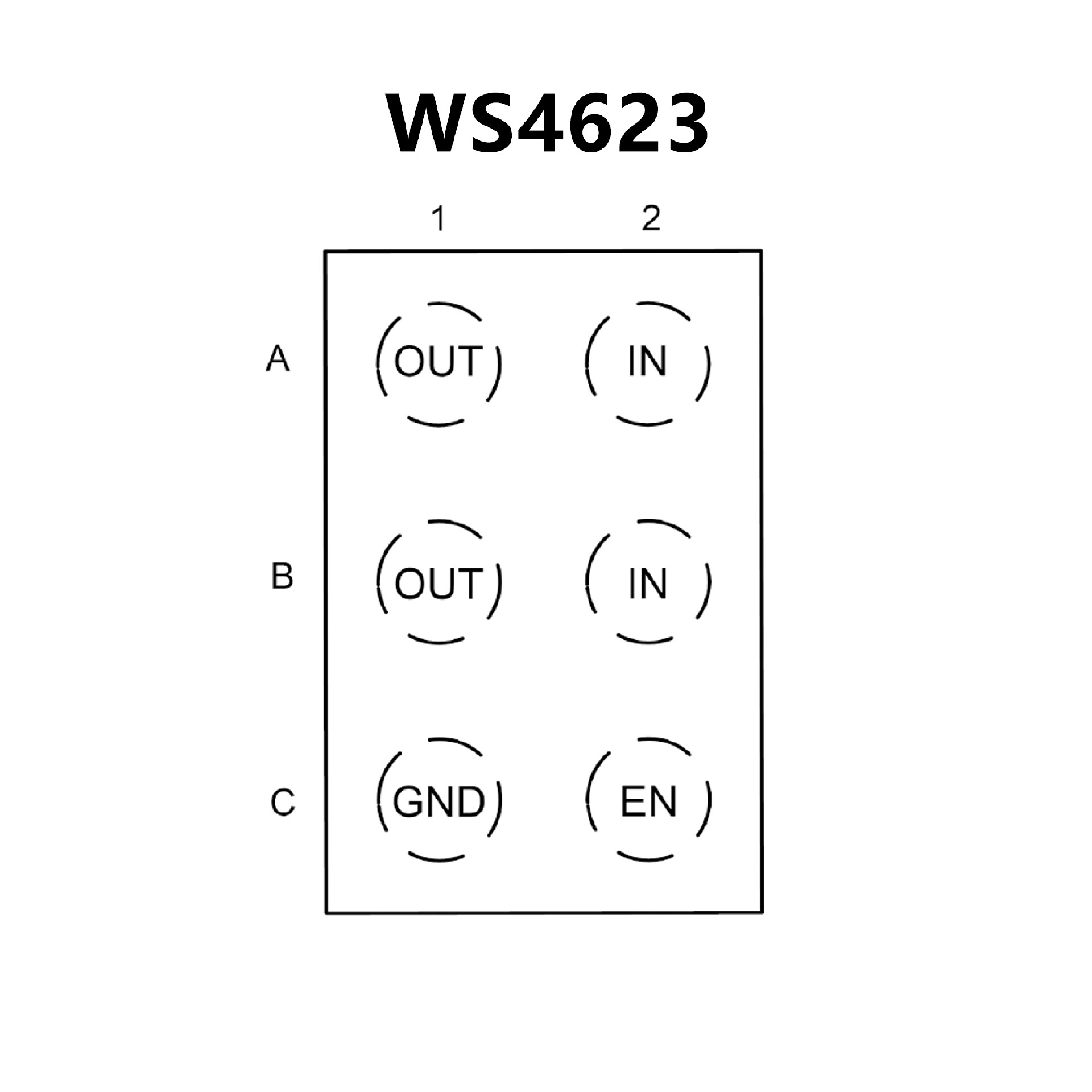

PIN CONFIGUTION
