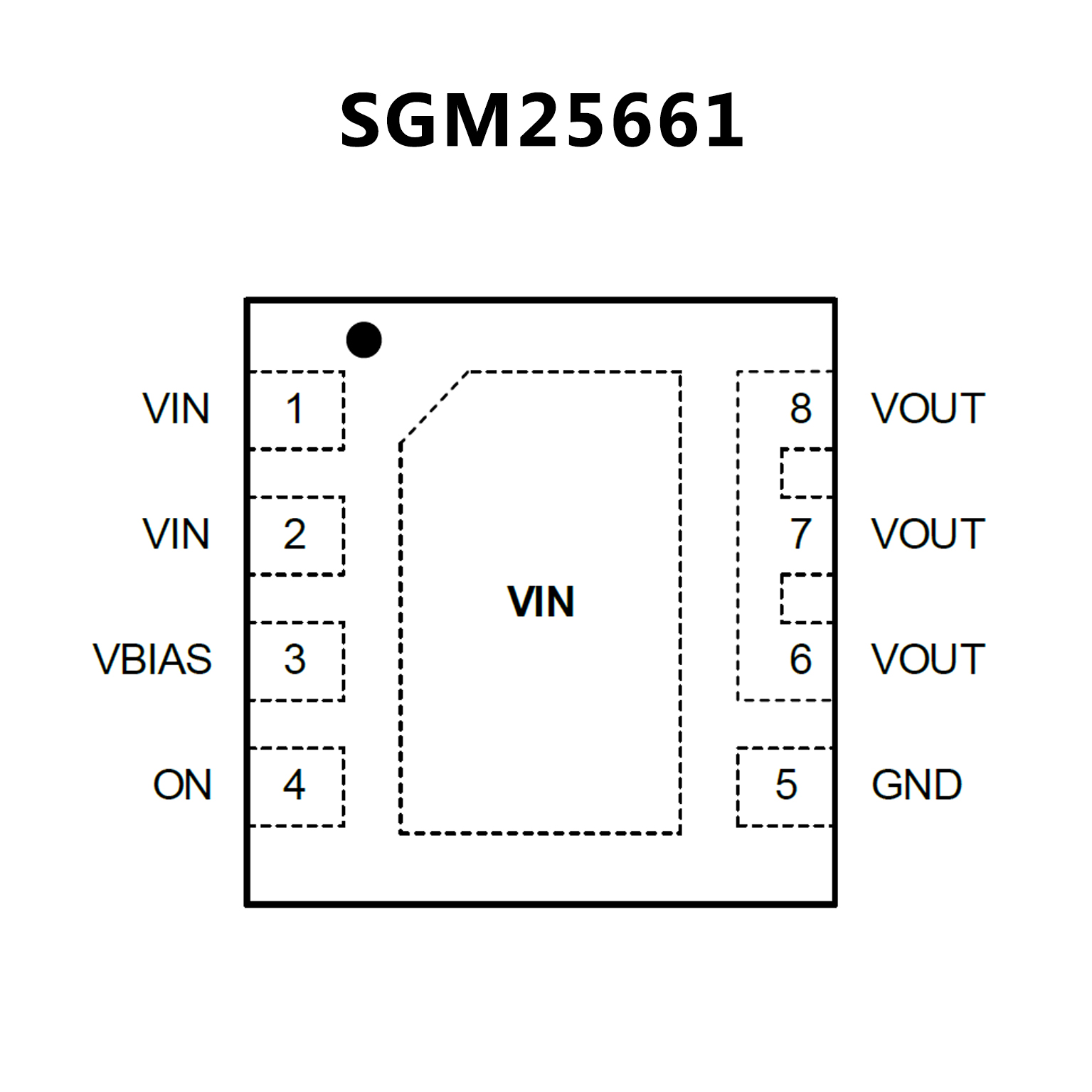

SGM25661.pdf• Input Voltage Range: 0.8V to 3.5V
• VBIAS Voltage Range: 3V to 5.5V
• Ultra-Low On-Resistance:
RON = 5.3mΩ (TYP) at VIN = 2.5V, VBIAS = 5V
• Maximum Continuous Load Current: 6A
• Low Quiescent Current: 0.6µA (TYP)
• Support with 1.2V, 1.8V, 2.5V and 3.3V GPIOs
• Rise Time: 8.1μs at VIN = 2.5V, VBIAS = 5V
• Fast Output Discharge
• -40℃ to +85℃ Operating Temperature Range
• Available in a Green TDFN-3×3-8EL Package

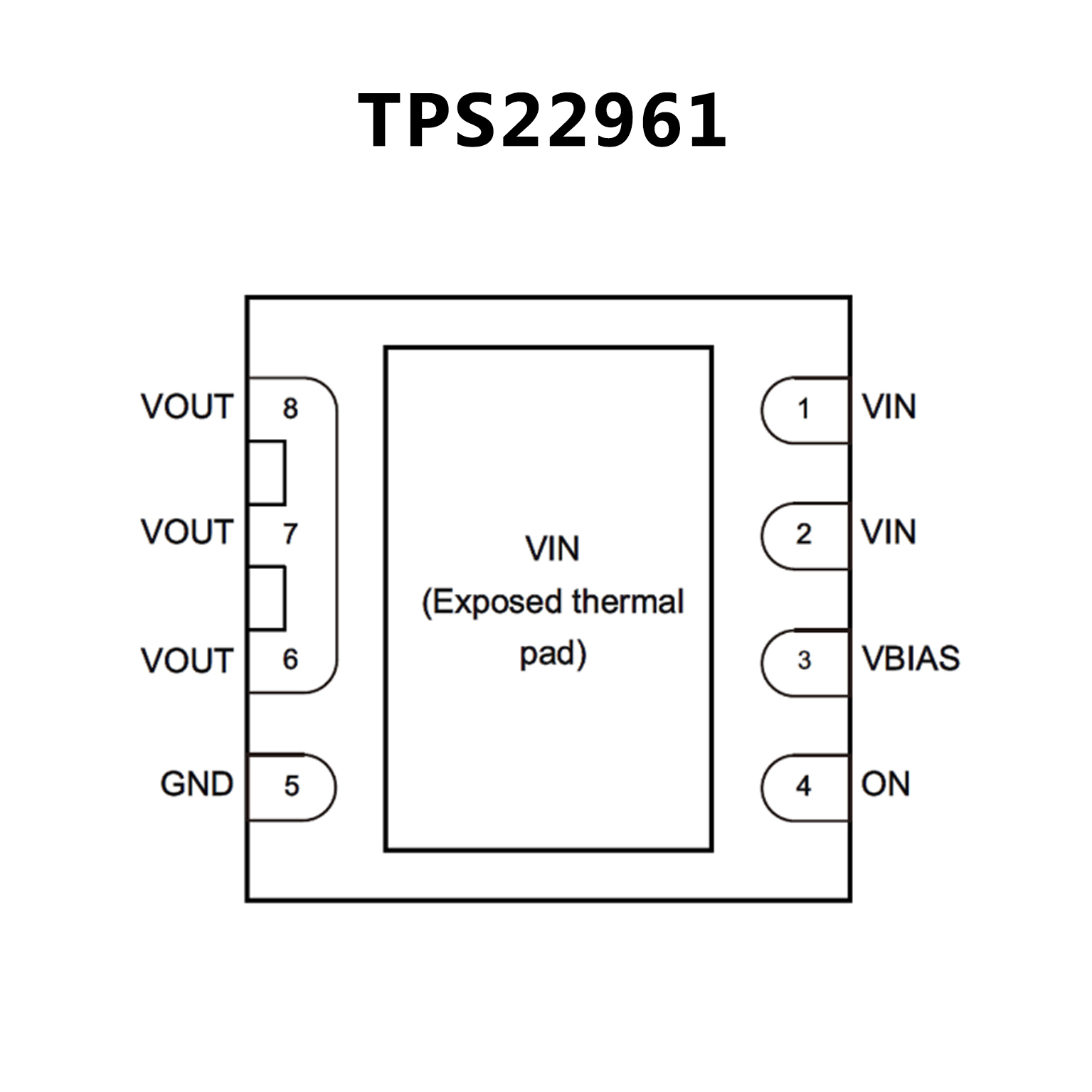

• Integrated Single Channel Load Switch
• VBIAS Voltage Range: 3 V to 5.5 V
• Input Voltage Range: 0.8 V to 3.5 V
• Ultra low RON Resistance
RON = 4.4 mΩ at VIN = 1.05 V (VBIAS = 5 V)
• 6A Maximum Continuous Switch Current
• Low Quiescent Current < 1 µA (max)
• Low Control Input Threshold Enables
use of 1.2-V/1.8-V/2.5-V/3.3-V Logic
• Controlled Slew Rate
R = 4.2 µs at VIN = 1.05 V (VBIAS = 5 V)
• Quick Output Discharge (QOD)
• SON 8-terminal Package with Thermal Pad
• ESD Performance Tested per JESD 22
2-kV HBM and 1-kV CDM
