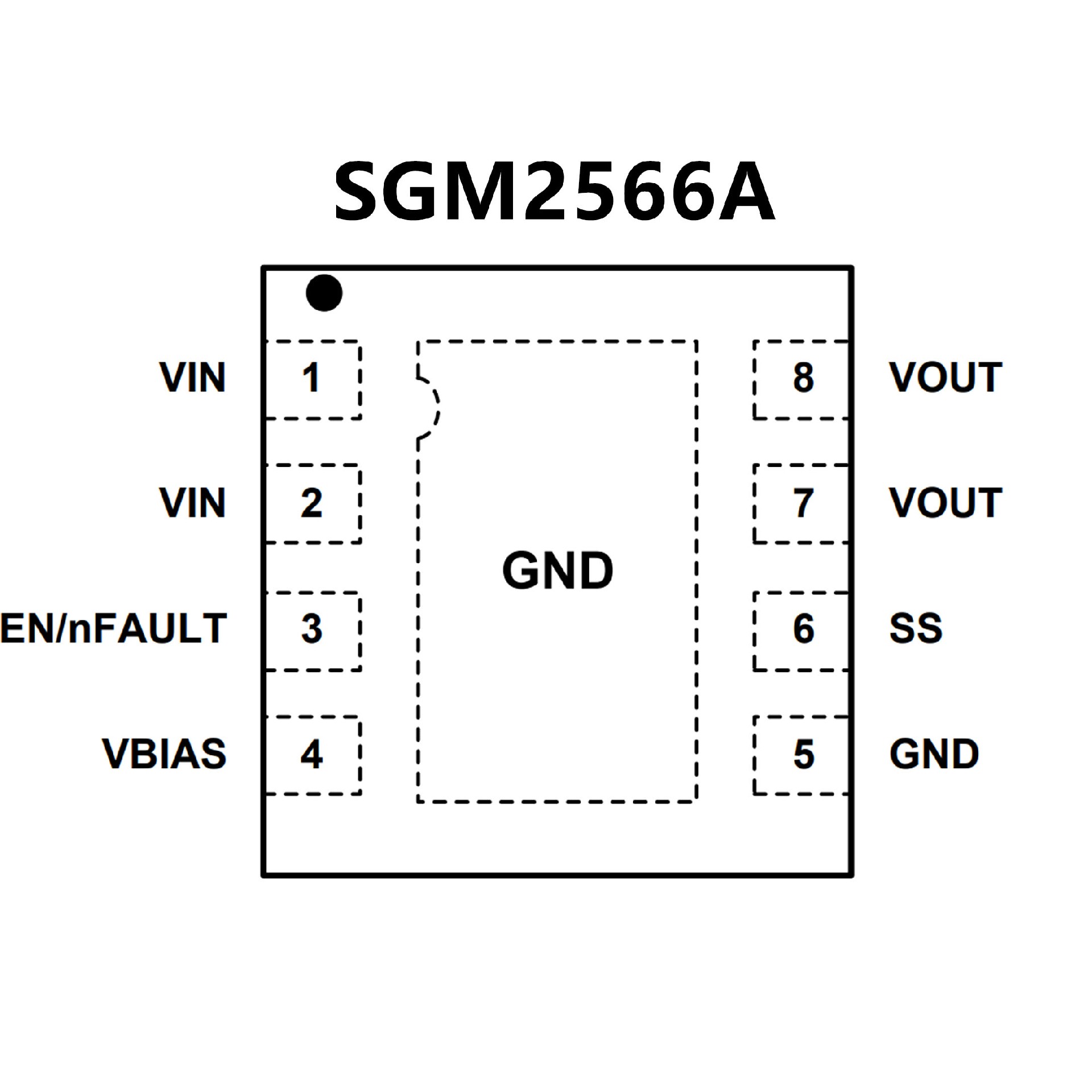

SGM2566A.pdf• Input Voltage Range: 0.8V to 5.3V
• Ultra-Low On-Resistance:
RDSON = 17mΩ at VIN = 3.3V (VBIAS = 5V)
• 6A Maximum Continuous Switch Current
• Low Quiescent Current:16µA
(VBIAS = 5V)10µA (VBIAS = 2.5V)
• Reverse Current Blocking Support
• Built-In Thermal Shutdown
• Short-Circuit Protection
• Soft-Start Function and Configurable Rise Time
• Enable Input or Alert Output
(EN/nFAULT Pin)
• Low Control Input Threshold Enables
Use of 1.2V,1.8V, 2.5V and 3.3V Logic
• SGM2566A: Quick Output Discharge
• -40℃ to +105℃ Operating Temperature Range
• Available in a Green TDFN-2×2-8L Package

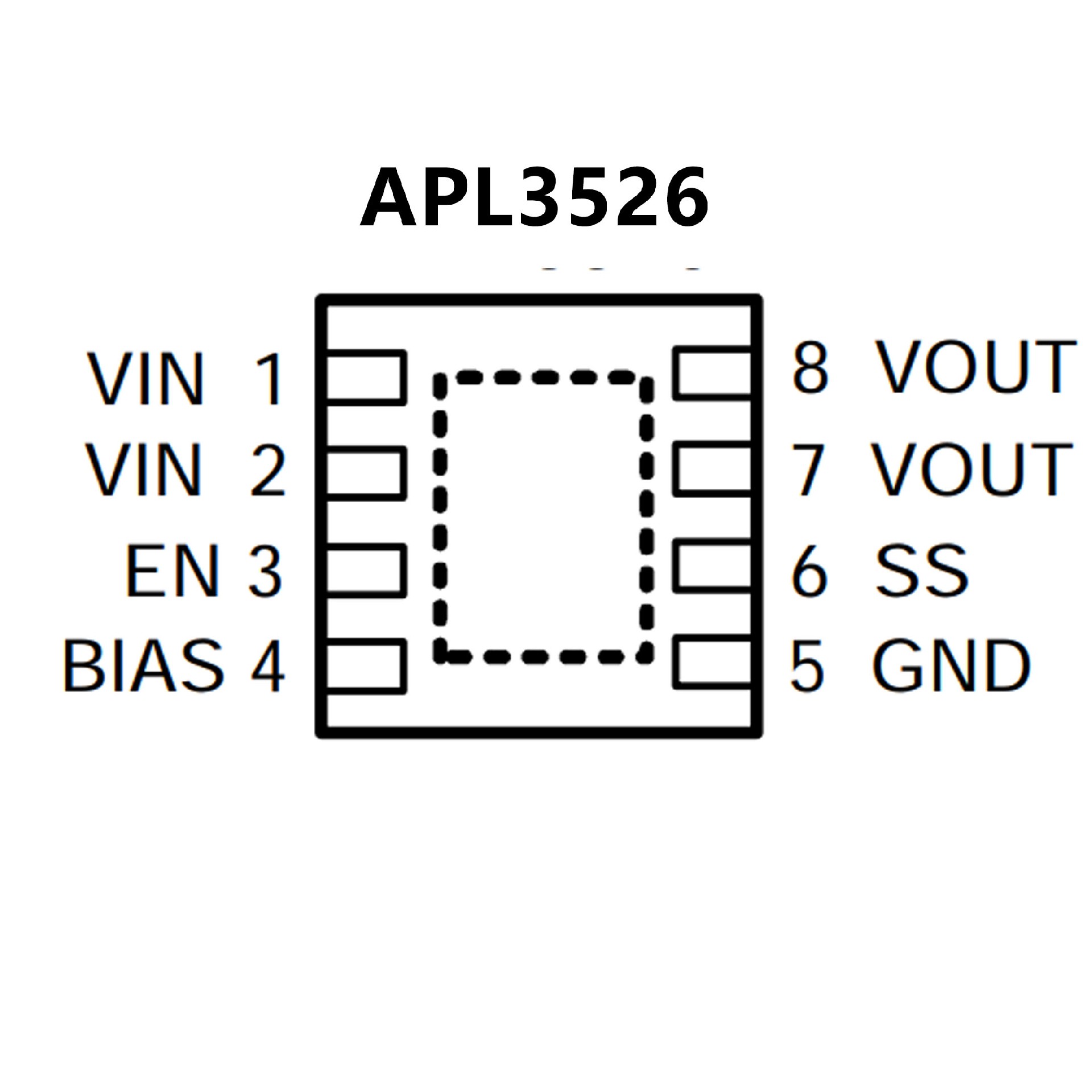

• 15mΩ(Typical) On-resistance
• 6A Continuous Current
• Soft Start Time Programmable by External Capacitor
• Wide Input Voltage Range (VIN): 0.8V to 5.5V
• Supply Voltage Range (VBIAS): 3V to 5.5V
• Output Discharge when Switch Disabled
• Reverse Current Blocking when Switch Disabled
• Over-Temperature Protection
• Enable Input
• Lead Free and Green Devices
Available (RoHS Compliant)
