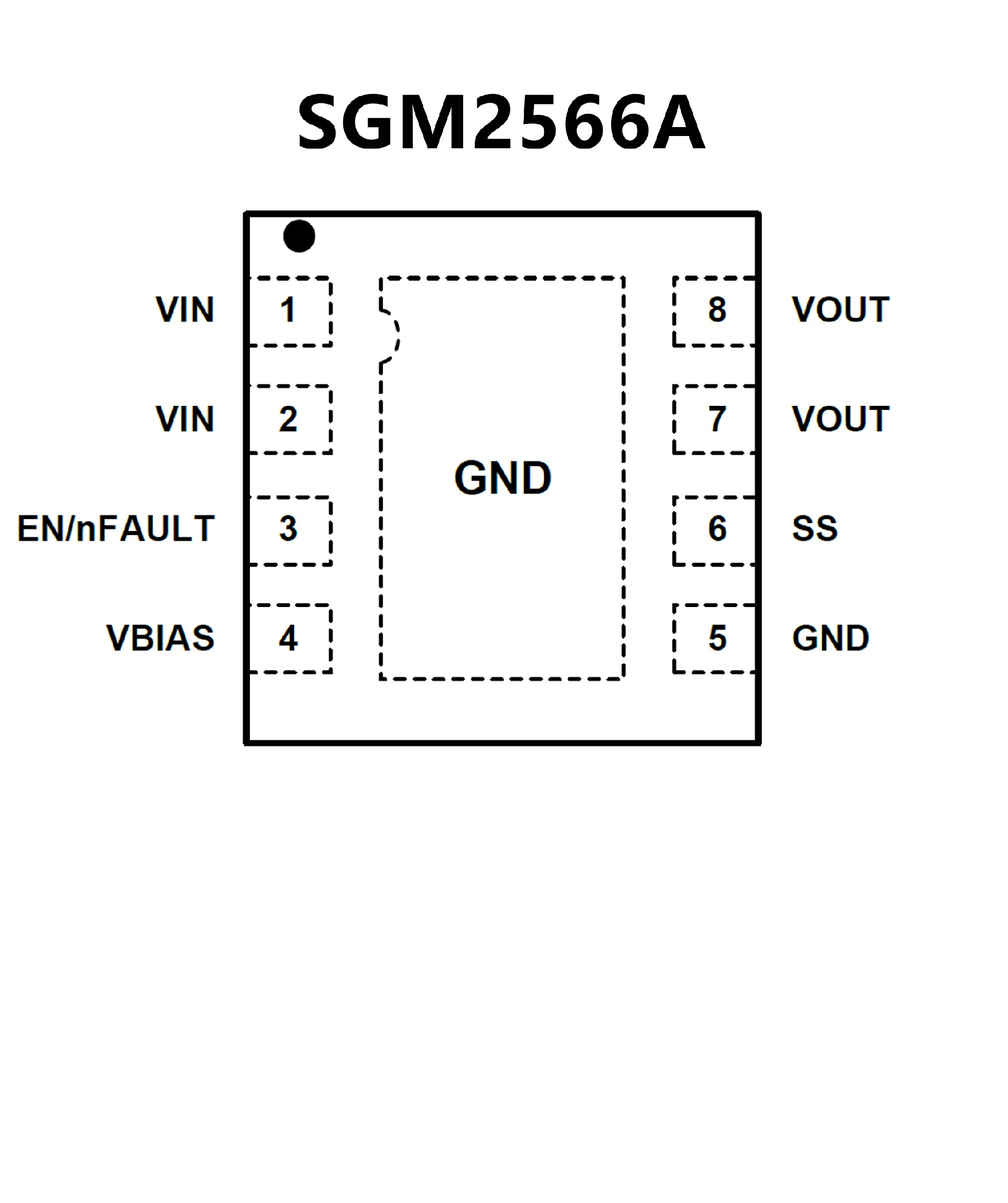

SGM2566AGTDE8G.pdf• Input Voltage Range: 0.8V to 5.3V
• Ultra-Low On-Resistance:
RDSON = 17mΩ at VIN = 3.3V (VBIAS = 5V)
• 6A Maximum Continuous Switch Current
• Low Quiescent Current:
16μA (VBIAS = 5V)
10μA (VBIAS = 2.5V)
• Reverse Current Blocking Support
• Built-In Thermal Shutdown
• Short-Circuit Protection
• Soft-Start Function and Configurable Rise Time
• Enable Input or Alert Output (EN/nFAULT Pin)
• Low Control Input Threshold Enables
Use of 1.2V,1.8V, 2.5V and 3.3V Logic
• SGM2566A: Quick Output Discharge
• -40℃ to +105℃ Operating Temperature Range
• Available in a Green TDFN-2×2-8L Package
• Integrated Single-Channel Load Switch

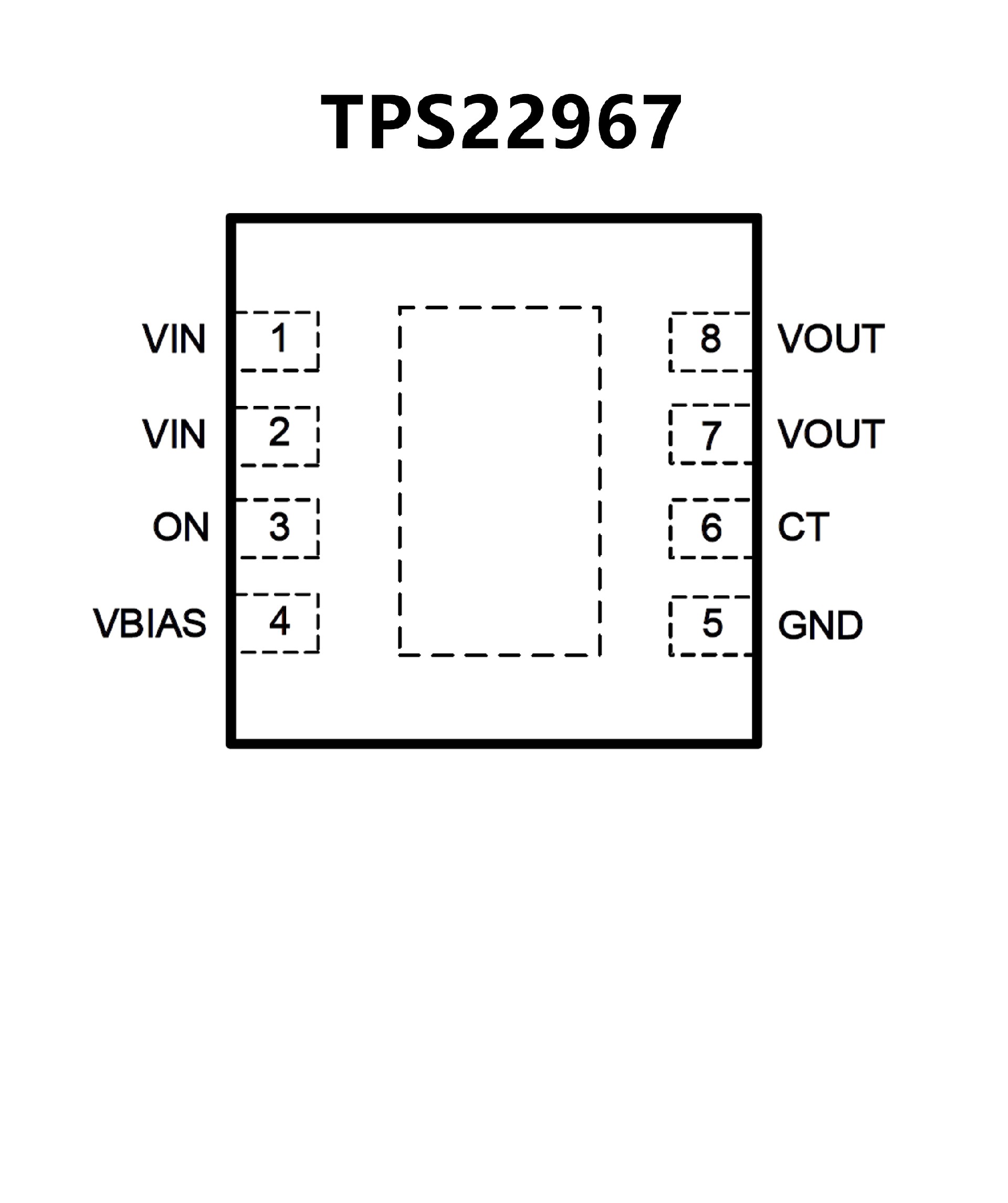

RON = 22 mΩ at VIN = 5 V (VBIAS = 5 V)
RON = 22 mΩ at VIN = 3.6 V (VBIAS = 5 V)
RON = 22 mΩ at VIN = 1.8 V (VBIAS = 5 V)
• 4-A Maximum Continuous Switch Current
• Low Quiescent Current (50 µA)
• Low Control Input Threshold Enables
Use of 1.2-V, 1.8-V, 2.5-V, and 3.3-V Logic
• Configurable Rise Time
• Quick Output Discharge (QOD)
• WSON 8-Pin Package With Thermal Pad
