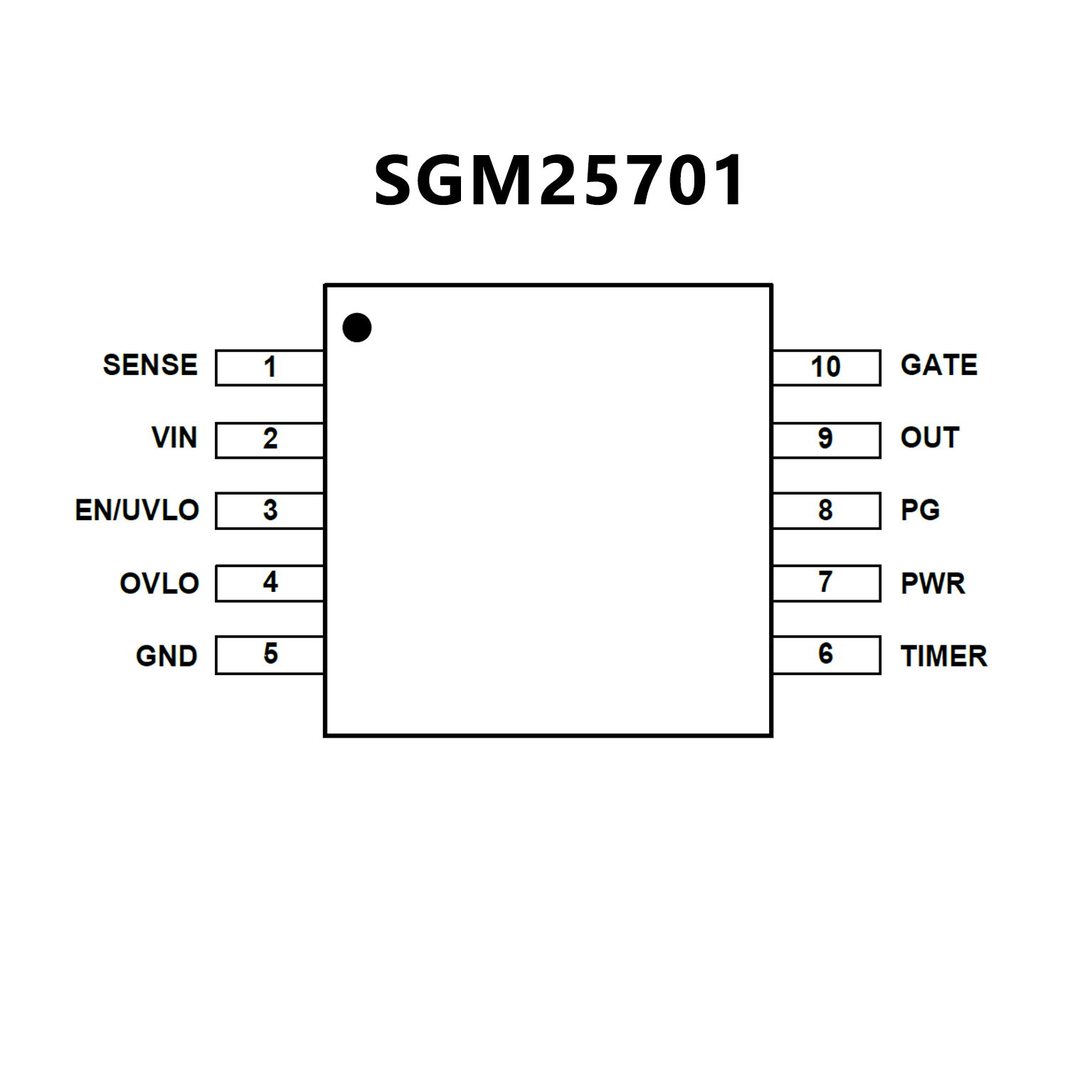

SGM25701.pdf• Wide Input Voltage Range: 9V to 70V
• Inrush Current Limit, PCB can be Safely
Inserted into Live Equipment
• External Device Programming Maximum Loss Limit
• Programmable Current Limit
• Adjustable Under-Voltage Lockout (EN/UVLO)
• Adjustable Over-Voltage Lockout (OVLO)
• Open-Drain for Good Output Indication
• Quick Cut-Off Function when Severe
Over-Current Occurs
• Configure Charge Pump/Gate Driver for External
N-MOSFET
• The Setting of the Insertion Time Allowing
the Ringing and Transient Recovery
Process after the System Connected
• Adjustable Fault Timing to Prevent False Shutdown
• Behavior after Fault:
SGM25701A: Auto-Retry
SGM25701B: Latch-Off
• Available in a Green MSOP-10 Package

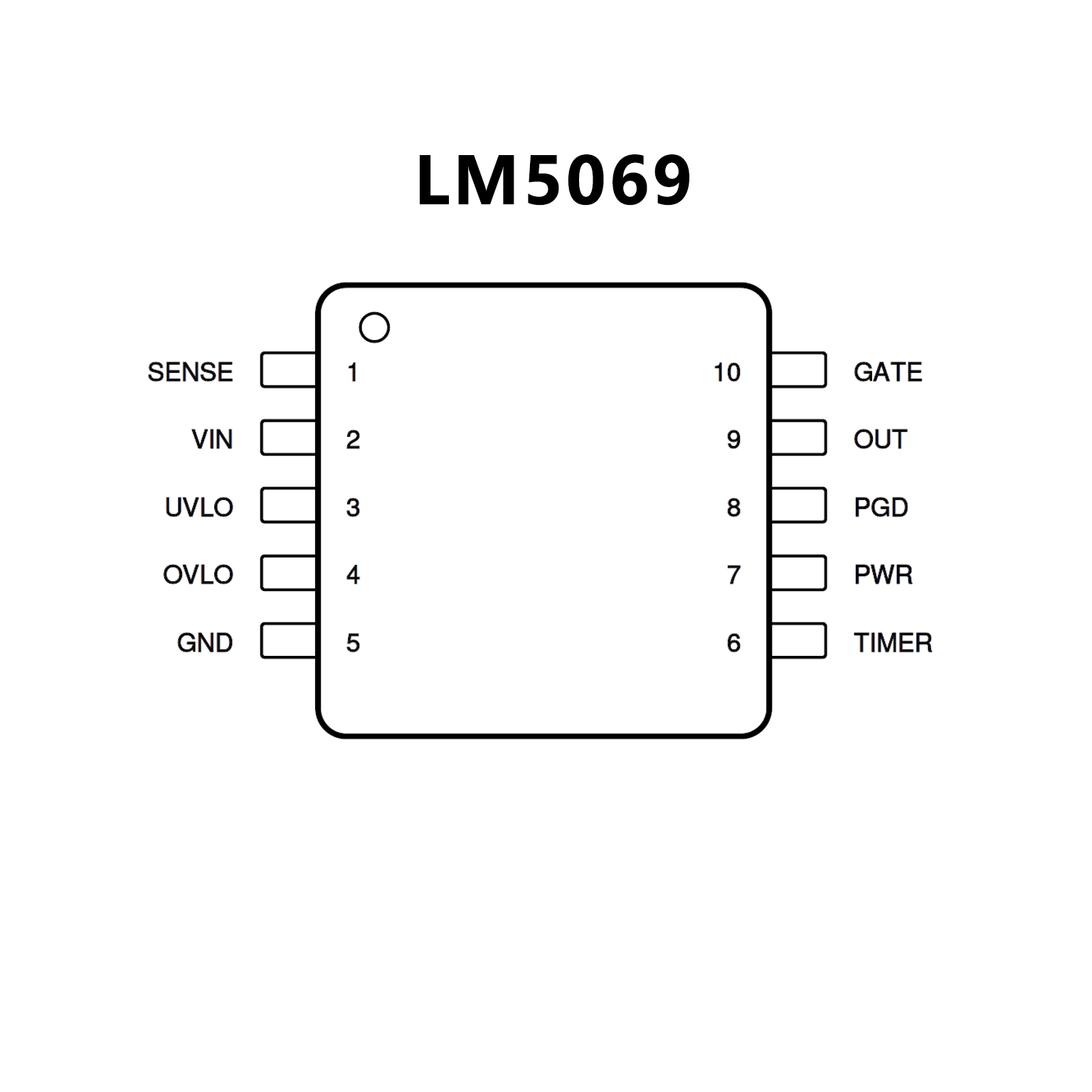

• Wide operating range: 9 V to 80 V
• In-rush current limit for safe board insertion into
live power sources
• Programmable maximum power dissipation in the
external pass device
• Adjustable current limit
• Circuit breaker function for severe overcurrent
events
• Internal high side charge pump and gate driver for
external N-channel MOSFET
• Adjustable undervoltage lockout (UVLO) and
hysteresis
• Adjustable overvoltage lockout (OVLO) and
hysteresis
• Initial insertion timer allows ringing and transients
to subside after system connection
• Programmable fault timer avoids nuisance trips
• Active high open drain POWER GOOD output
• Available in latched fault and automatic restart
versions
• 10-Pin VSSOP package
