5.5V, 2A, 34mΩ RON, Load Switch with Reverse Current Protection and Controlled Turn On,Replace NCP335
SGM2572
SGM2572.pdf
SGM2572.pdfFEATURES
• Integrated N-MOSFET Load Switch
• 1V to 5.5V Input Voltage Range
• Ultra-Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
• 2A Maximum Continuous Switch Current
• Low Shutdown Current: 90nA (TYP)
• Reverse Current Protection
• Low Threshold 1.2V GPIO Control Input
• Bidirectional Power Supply for
Power Zone Application
• Rise Time: 60μs (TYP)
• Quick Output Discharge
• Available in a Green WLCSP-0.8×0.8-4B Package

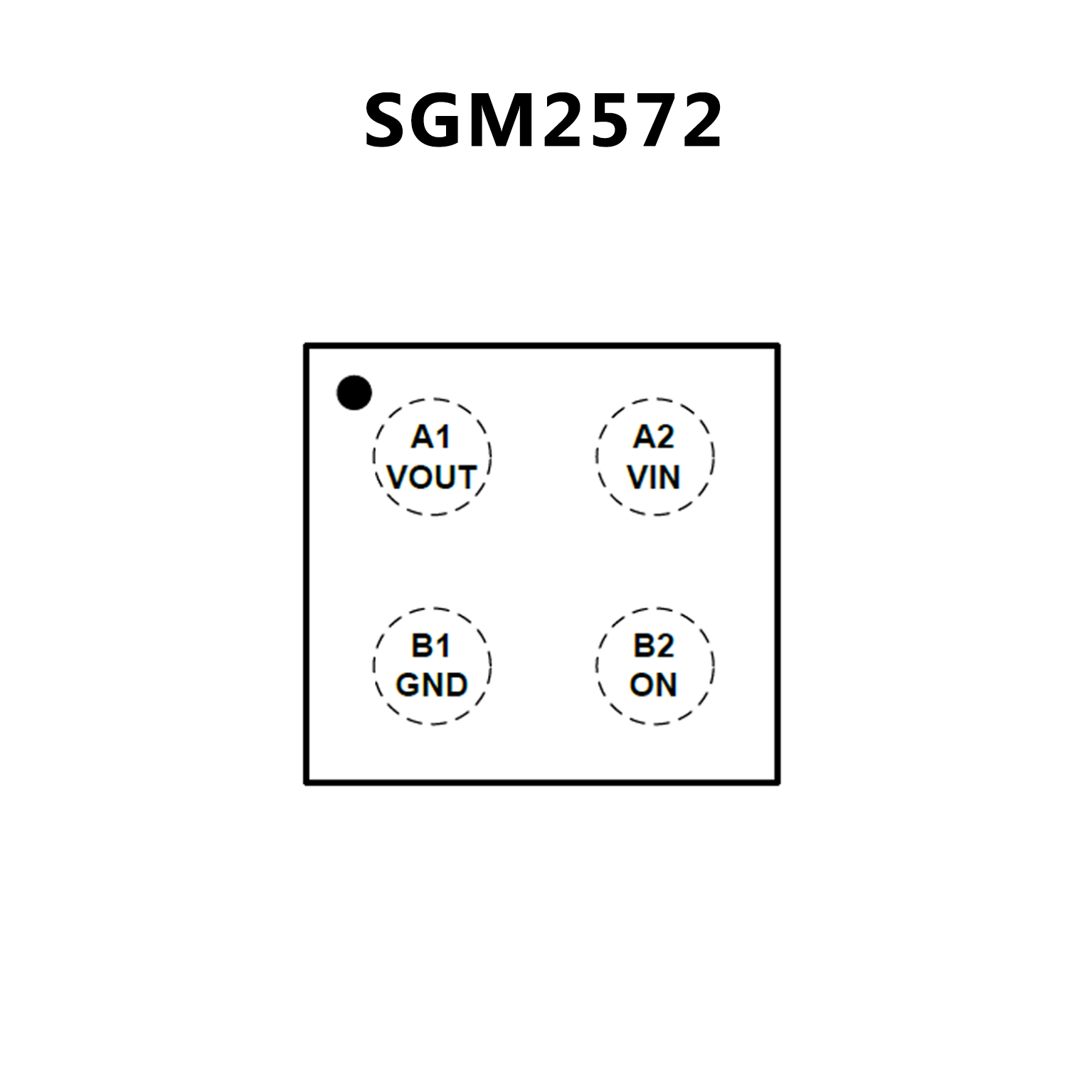

PIN CONFIGUTION
优势替代
FEATURES
• 1.2 V – 5.5 V Operating Range
• 47 m P MOSFET at 3.3 V
• DC Current Up to 2 A
• Output Auto−discharge (NCP335)
• Active high EN pin
• WLCSP4 0.96 x 0.96 mm
• ESD Ratings: 4 kV Human Body Model, 2 kV CDM,
• 250 V Machine Model
• These are Pb−Free Devices
PIN CONFIGUTION
