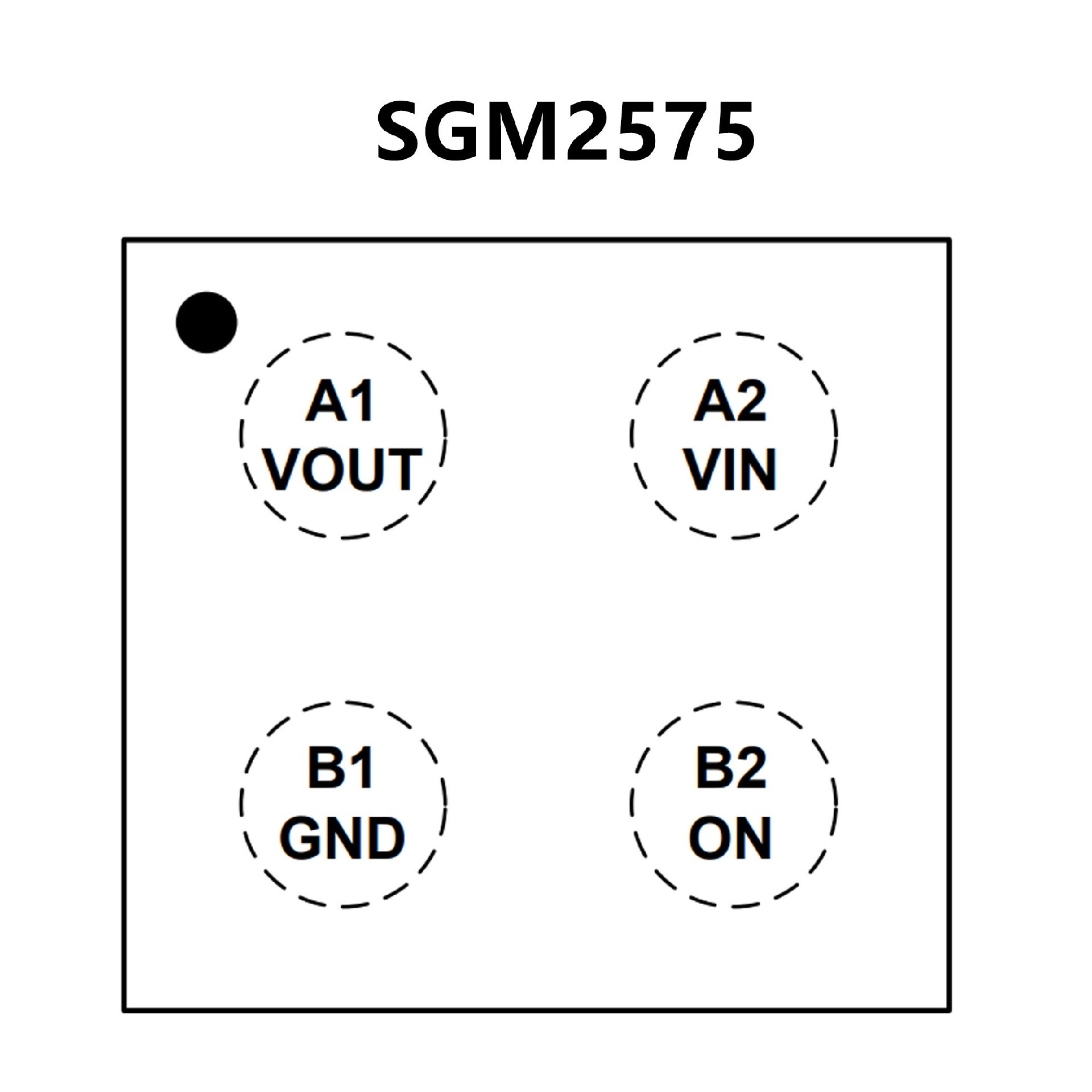

SGM2575.pdf• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 2A
• Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
• Low Shutdown Current: 90nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.8V GPIO Control Input
• Bidirectional Power Supply for Power Zone
Application
• Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
• Quick Output Discharge
(SGM2575AD/SGM2575BD Only)
• Available in a Green WLCSP-0.8×0.8-4B Package
• 1.2 V to 5.5 V Input Voltage Operating Range
• Typical RON:
45 mΩ at VIN = 5.5 V
55 mΩ at VIN = 3.3 V
90 mΩ at VIN = 1.8 V
185 mΩ at VIN = 1.2 V
• Slew Rate Control with tR:
100µs

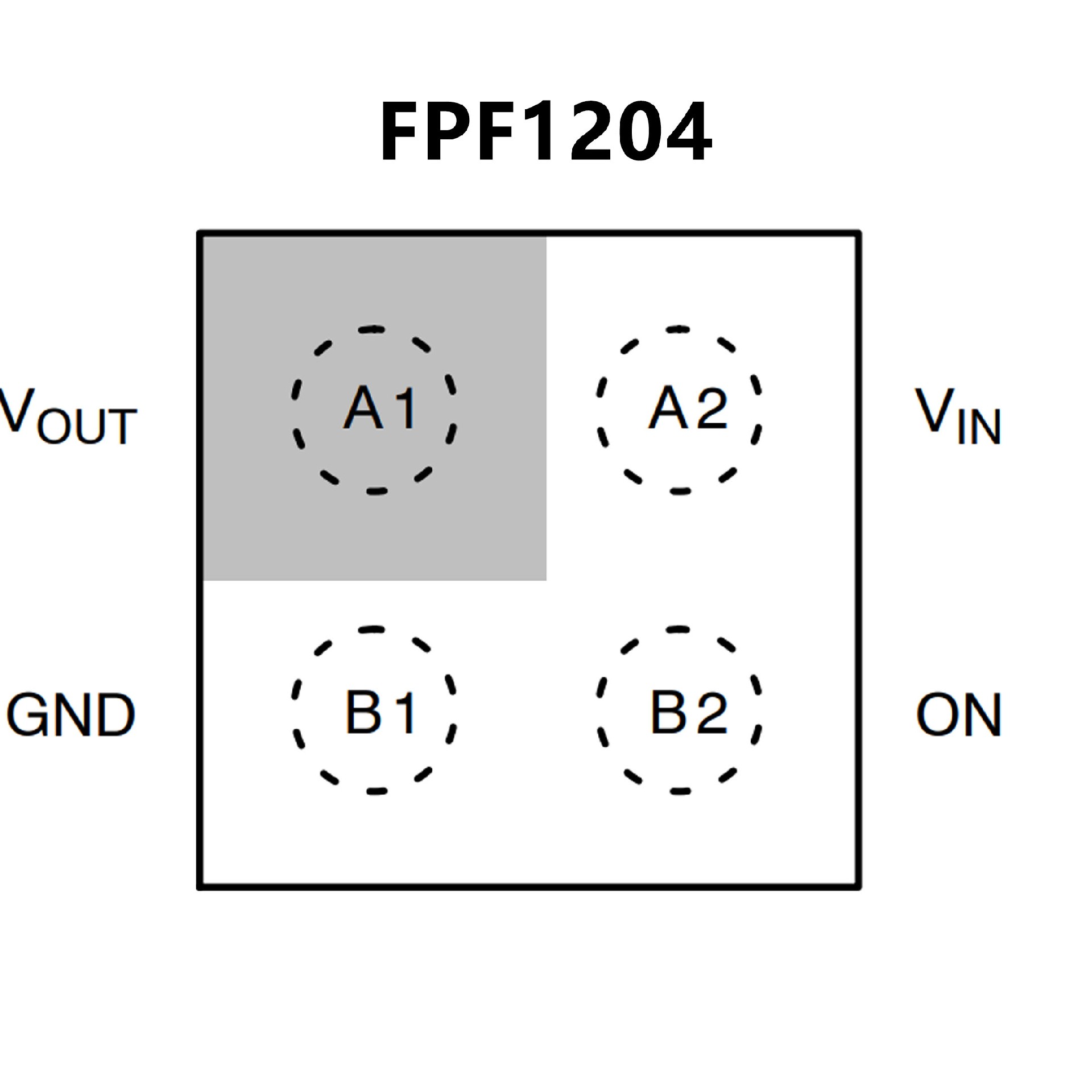

• Output Discharge Function on FPF1204
• Low <1.5µA Quiescent Current
• ESD Protected: Above 7 kV HBM, 2 kV CDM
GPIO / CMOS−Compatible Enable Circuitry
• 4−Bump, WLCSP 0.76 mm x 0.76 mm, 0.4 mm Pitch
• These are Pb−Free Devices
