• Input Voltage Range: 1V to 5.5V

• Maximum Continuous Current: 2A

• Low On-Resistance

  RON = 34mΩ at VIN = 5V

  RON = 34mΩ at VIN = 3.3V

• Low Shutdown Current: 90nA (TYP)

• Reverse Current Protection When Disabled

• Low Threshold 1.8V GPIO Control Input

• Bidirectional Power Supply for Power

  ZoneApplication

• Rise Time:

  SGM2575A/SGM2575AD: 60μs (TYP)

  SGM2575BD: 1600μs (TYP)

• Quick Output Discharge

  (SGM2575AD/SGM2575BD Only)

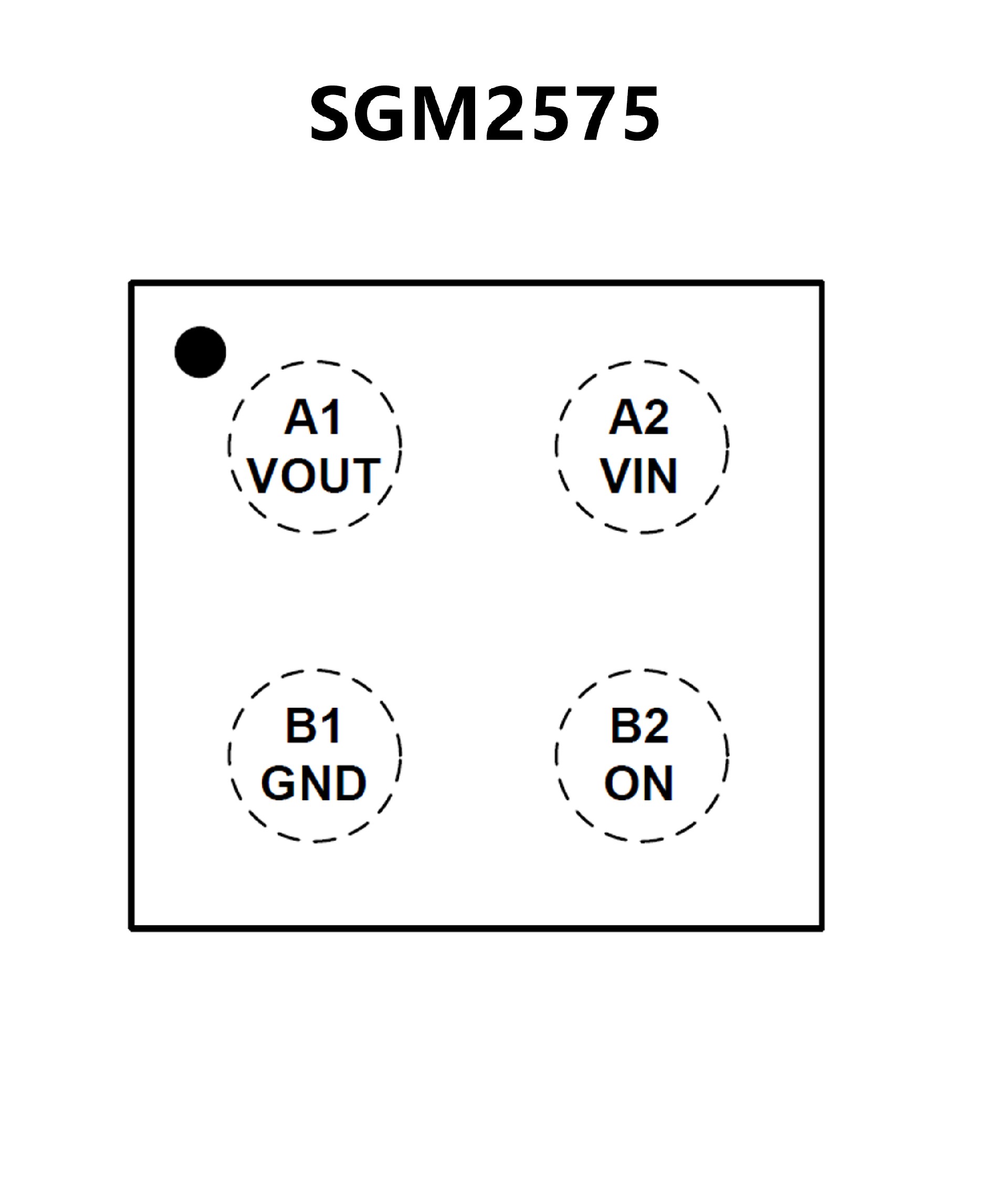

• Available in a Green WLCSP-0.8×0.8-4B Package
