SGM2575ADYG.pdf• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 2A
• Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
• Low Shutdown Current: 90nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.8V GPIO Control Input
• Bidirectional Power Supply for Power Zone Application
• Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
• Quick Output Discharge
(SGM2575AD/SGM2575BD Only)

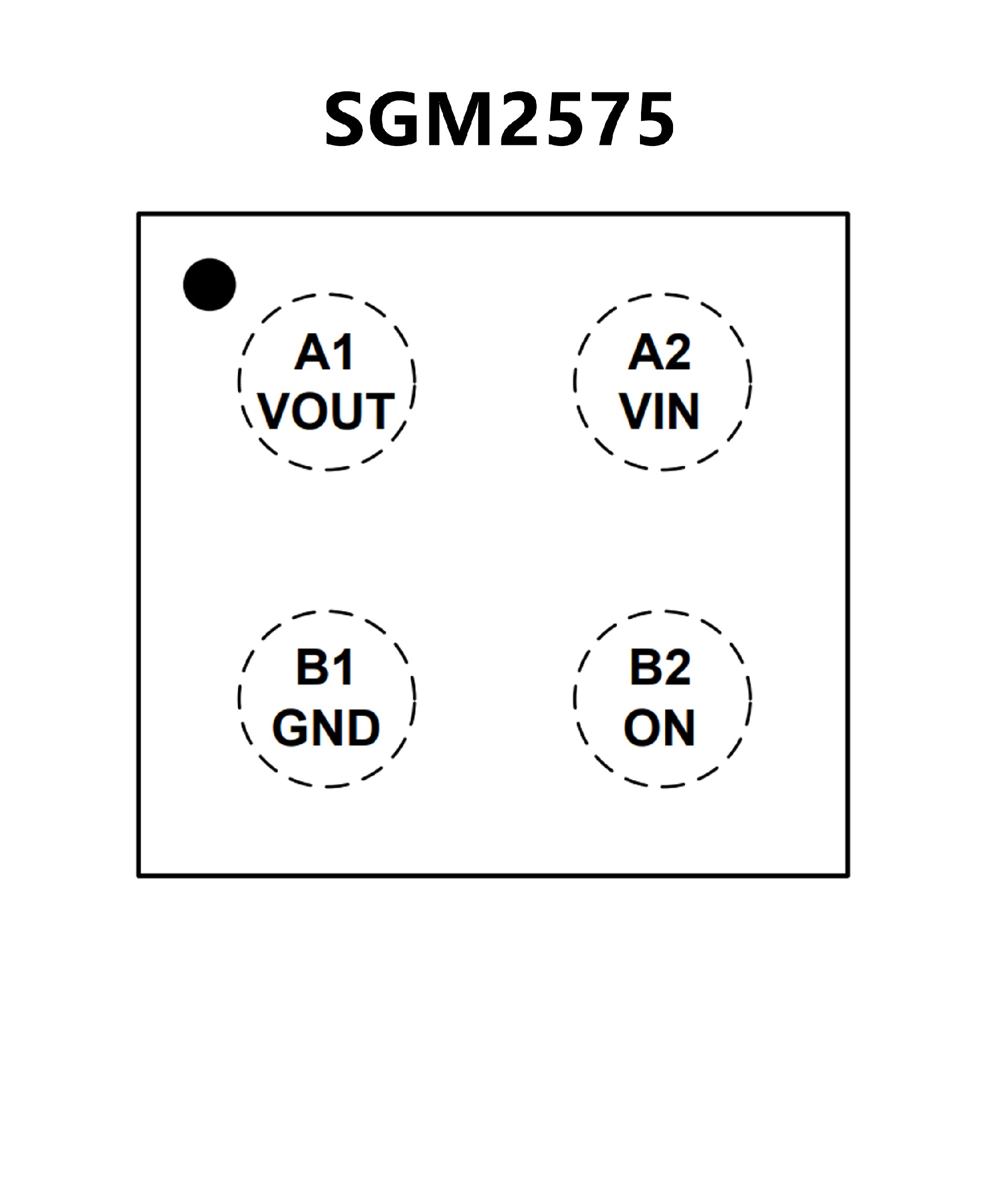

• Available in a Green WLCSP-0.8×0.8-4B Package

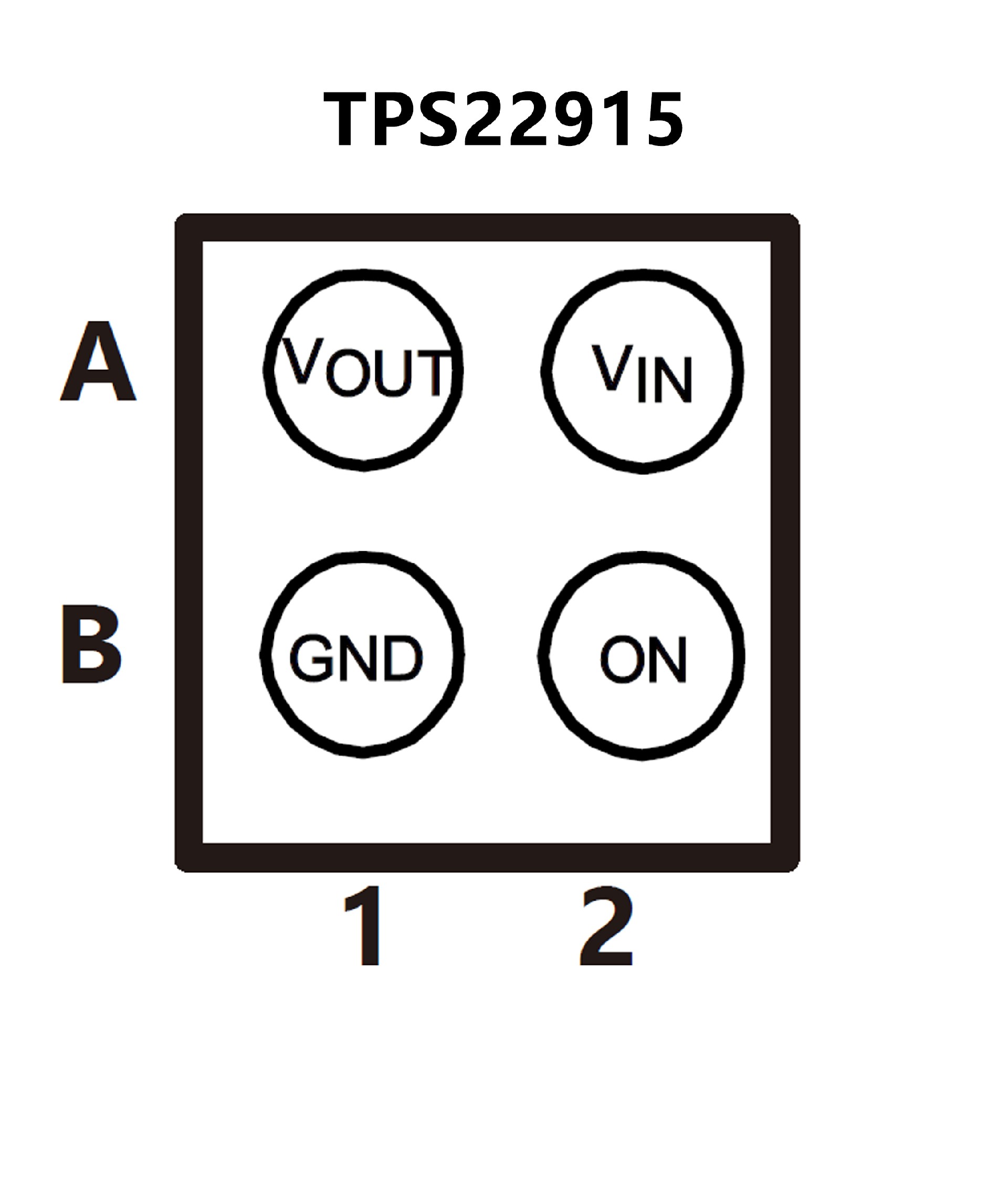

• Integrated Single Channel Load Switch
• Input Voltage Range: 1.05 V to 5.5 V
• Low On-Resistance (RON)
RON = 37 mΩ (Typical) at VIN = 5 V
RON = 38 mΩ (Typical) at VIN = 3.3 V
RON = 43 mΩ (Typical) at VIN = 1.8 V
• 2-A Maximum Continuous Switch Current
• Low Quiescent Current
7.7 μA (Typical) at VIN = 3.3 V
• Low Control Input Threshold Enables Use of 1 V or
Higher GPIO
• Controlled Slew Rate
tR(TPS22914B/15B) = 64 μs at VIN = 3.3 V
tR(TPS22914C/15C) = 913 μs at VIN = 3.3 V
• Quick Output Discharge (TPS22915 only)
• Ultra-Small Wafer-Chip-Scale Package
0.78 mm × 0.78 mm, 0.4-mm Pitch,
0.5-mm Height (YFP)
• ESD Performance Tested per JESD 22
2-kV HBM and 1-kV CDM
