SGM2575ADYG.pdf• Input Voltage Range: 1V to 5.5V
• Maximum Continuous Current: 2A
• Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
• Low Shutdown Current: 90nA (TYP)
• Reverse Current Protection When Disabled
• Low Threshold 1.8V GPIO Control Input
• Bidirectional Power Supply for
Power Zone Application
• Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
• Quick Output Discharge
(SGM2575AD/SGM2575BD Only)

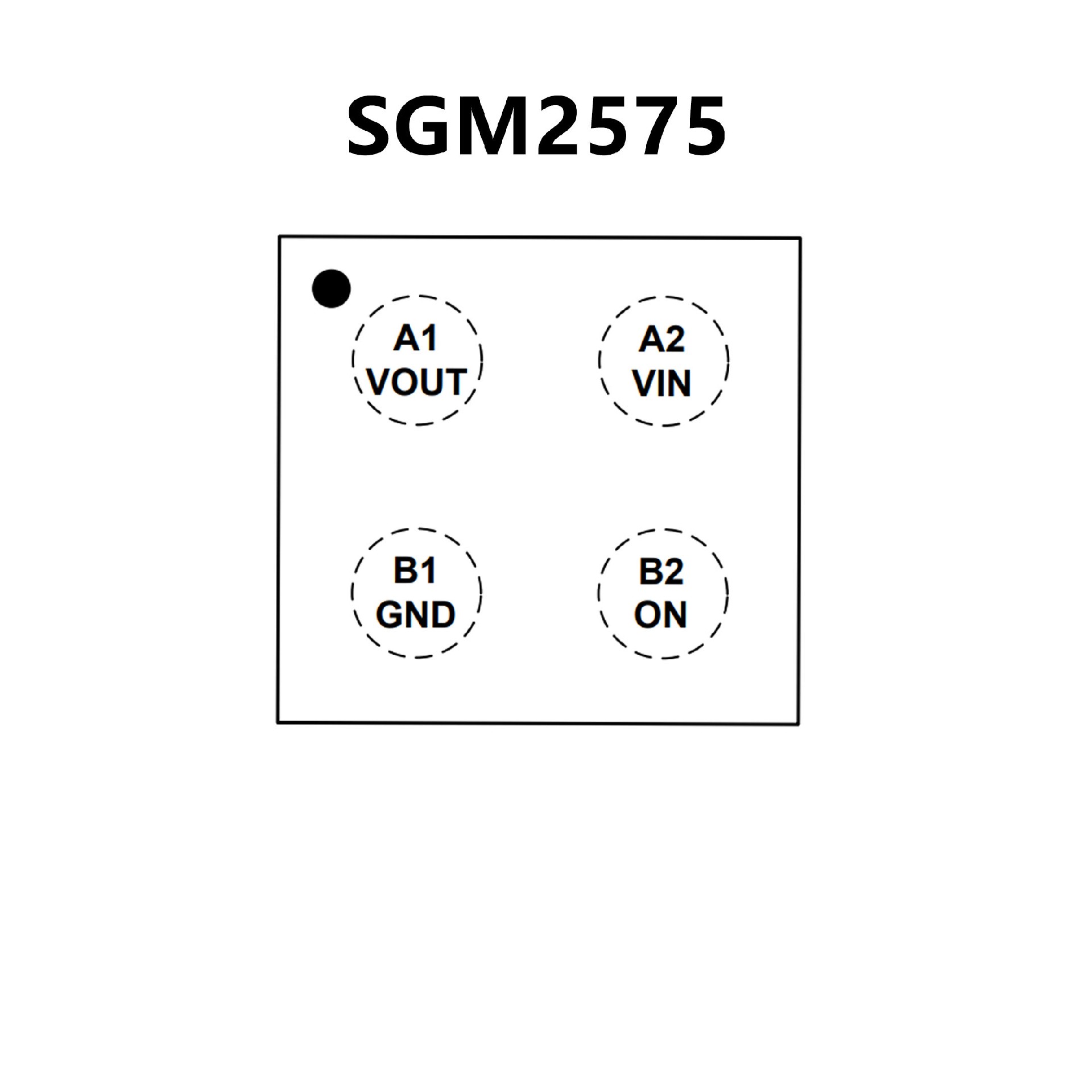

• Available in a Green WLCSP-0.8×0.8-4B Package

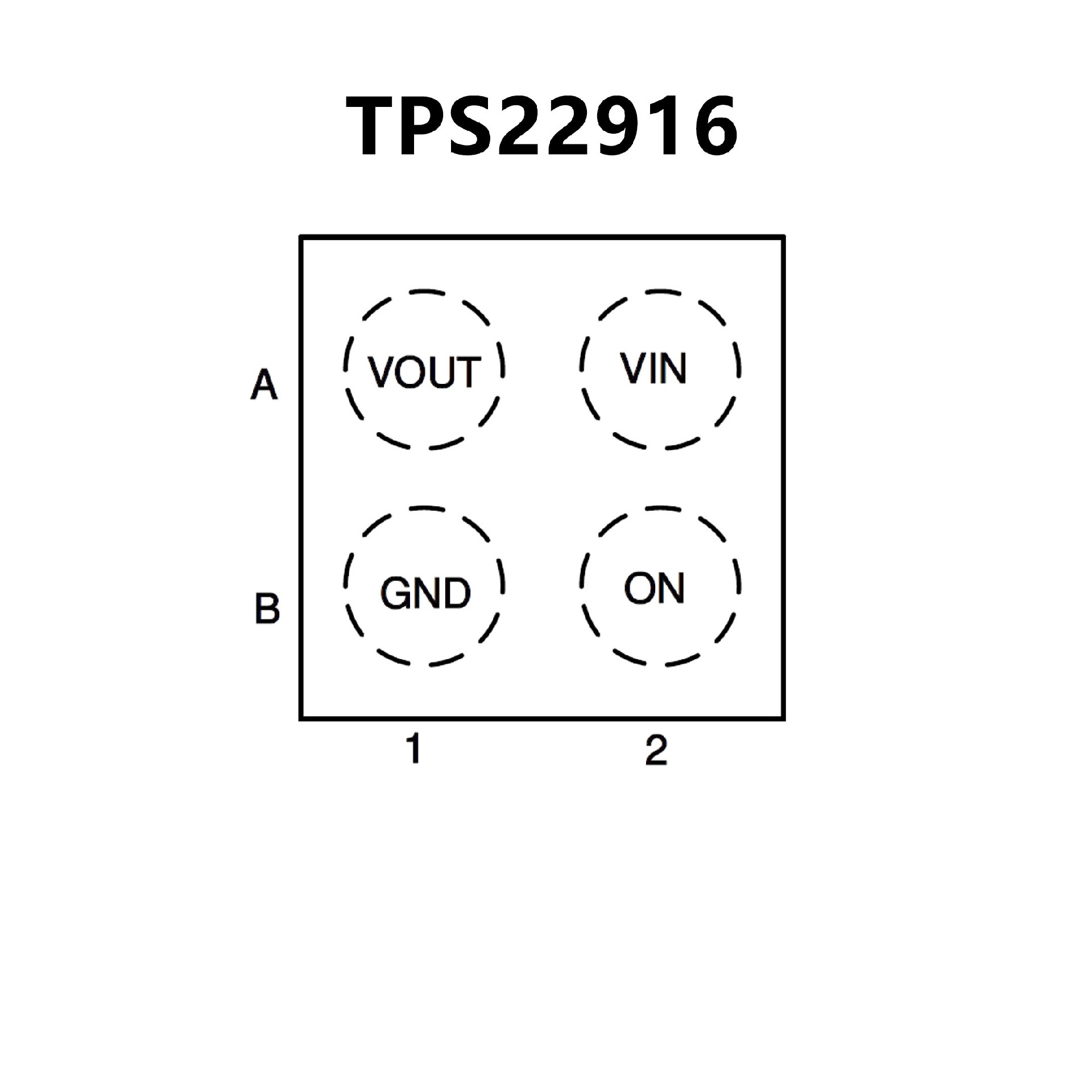

• Input operating voltage range (VIN): 1 V–5.5 V
• Maximum continuous current (IMAX): 2 A
• ON-resistance (RON):
5 VIN = 60 mΩ (typ.), 100 mΩ (85°C max.)
1.8 VIN = 100 mΩ (typ.), 150 mΩ (85°C max.)
1 VIN = 200 mΩ (typ.), 325 mΩ (85°C max.)
• Ultra-low power consumption:
ON state (IQ): 0.5 μA (typ.), 1 μA (max.)
OFF state (ISD): 10 nA (typ.), 100 nA (max.)
TPS22916BL/CL/CNL (ISD): 100 nA (typ.), 300
nA (max.)
• Smart ON pin pulldown (RPD):
ON ≥ VIH (ION): 10 nA (max.)
ON ≤ VIL (RPD): 750 kΩ (typ.)
• Slow Timing in C Version Limits Inrush Current:
5-V turn-on time (tON): 1400 μs at 5 mV/μs
1.8-V turn-on time (tON): 3000 μs at 1 mV/μs
1-V turn-on time (tON): 6500 μs at 0.3 mV/μs
• Fast timing in b version reduces wait time:
5-V turn-on time (tON): 115 μs at 57 mV/μs
1.8-V turn-on time (tON): 250 μs at 12 mV/μs
1-V turn-on time (tON): 510 μs at 3.3 mV/μs
• Always-ON true Reverse Current Blocking (RCB):
Activation current (IRCB): –500 mA (typ.)
Reverse leakage (IIN,RCB): –300 nA (max.)
• Quick Output Discharge (QOD): 150 Ω (typ.)
(N version has no QOD)
• Active low enable option (L versions)
